Bauer Centerstar Centre Pivot Irrigation Systems

Easy to use. Precise. Economical.

Centerstar

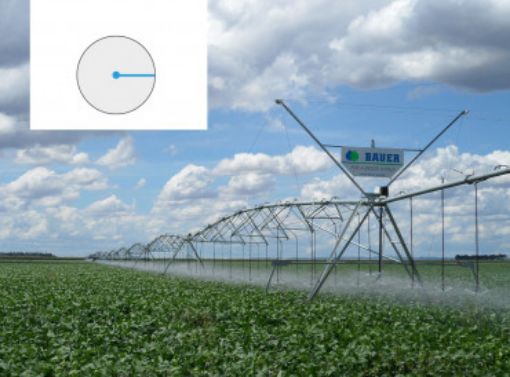

The BAUER CENTERSTAR 9000 is a prime example of a fully automated irrigation system that will consistently do its job without any help. The CENTERSTAR consists of a stationary central tower with an also stationary power and water supply. The full potential of the CENTERSTAR is realized on square fields without obstacles. In this scenario, the system offers impressively low purchase costs with maximum space utilization.

The pivot systems from BAUER are considered the most robust and durable on the market. They are also known for standing up to the fiercest winds. This is due in part to their low center of gravity, which considerably increases their stability. Plus, the frame construction uses generously dimensioned profiles to make it heavier and more stable. The result is an absolutely solid frame structure that is immune to torsional bending. A BAUER pivot always keeps everything in balance.

Why CENTERSTAR?

Maximizing the irrigated area in square fields
Fully automatic function reduces labour input and costs to a minimum
Gentle precipitation, which does not damage crops
Low pressure system with low energy consumption
High irrigation efficiency due to water application close to the ground
Reliable high yield even in dry periods
Long lifetime
SmartRain App-ready for modern irrigation management

Bauer Sugarcane-Pivot

Efficient Irrigation for Sugarcane Cultivation

In many countries, sugarcane is a key agricultural crop – and it comes with demanding requirements. With the specially developed Bauer Sugarcane Pivot, we offer the ideal solution for maximum yields and robust performance under the toughest conditions.

High Clearance, Strong Construction
Standing approximately 4 meters tall, the pivot moves effortlessly over mature sugarcane without damaging the plants. Its durable design, large tires (16.9x24), and smart features like driveshaft protection ensure reliable operation even in dense fields.

Long-Lasting & Vinasse-Resistant
A major advantage: the system is vinasse-compatible. In the Polystar version, HDPE lining protects internal piping from corrosion – even at temperatures up to 60 °C – ensuring long service life.

Targeted Irrigation – Healthy Growth
Sugarcane requires ample water during its growth phase. Our pivot system delivers consistent, precise irrigation to meet plant needs without over-saturating the soil – promoting healthy growth and boosting productivity.

→ The Bauer Sugarcane Pivot: Tailored irrigation for sugarcane cultivation worldwide.

System 9000

Central Tower Options	168, 203, 24
Pipe diameter options	133 (5 1/4"), 168 (6 5/8"), 203 (8"), 219 (8 5/8"), 254 (10")
Span length options	42,3m 48,1m 54,0m 59,8m 65,7m
Overhang options	5,9m 11,7m 17,3m 23,4m 29,3m
Towable central tower options	4‐Rad Zentralturmwagen; Kufen
Tires dimensions options	14,9‐24 / 16,9‐24

Main components

	The highest level of stability for continuous operation Central tower Sturdy structure on four legs with broad support base Pivot tower angle 100x100mm for higher rigidity Broad support plates with large support surface area Horizontal braces for increased machine stability Entire pivot tower is hot dip galvanized
	the highest level of security over many years Span - Trussing Five different tube diameters provide a wide application range (50-600m³/h) Optimum adjustment for lowest operating costs Only one tube length (5.85m) for easy assembly and transportation Truss rods, diam. 20mm, with high tensile strength and large safety reserves Even arc shape of the trussing ensures high degree of stability The 90° arrangement of the bracing angle ensures a uniform load distribution in the most difficult terrain Crossed drive tower braces for high stability on uneven terrain
	Greater stability Centerstar drive tower Broad based construction Optimal power input Large-dimension drive tower bracing angle 100x75mm The wide wheel base of 4.3m (standard) and 5.2m guarantees a high level of stability, even on rough terrain and in strong winds 2 construction heights of 4.2 m (standard) and 5.0m for optimal adaptation to different crops Towable - high level of flexibility and adaptation to crop rotation
	Precise and reliable Tower coupling The sturdy drive tower coupling, free from play, with ball and socket perfectly compensates for extreme slopes. Mounted on the outside of the pipe, it does not restrict the cross-section of the mainline pipe, thereby ensuring optimum water flow without pressure loss. The weather, UV and ozone-resistant hose collar facilitates large angles.
	Patented by BAUER Alignment control BAUER is the only manufacturer to offer a control lever that is mounted directly above the swivel point of the flexible joint. Any torsion in the pipe has no influence on the control; the entire system is kept stress-free. Optimum adjustment of switching brackets with precision bearings of the control cams ensures precise movement transmission. Precise drive tower control system leads to a long product lifespan.
	Highest precision for more than 12 towers Precision control The precision control for extreme precision of linear and Centerliner systems and systems with more than 12 drive towers. The angles between the drive towers are transmitted by means of control cables, counter-balancing any torsion in the steel structure.

Control panels

	SmartTouch CP100 Big touchscreen 10.4“ for most comfortable usability and visual display of the machine’s operational status Entry of up to 10 separate irrigation programs possible Division of the field into up to 6 different segments with different precipitation rates Additional freely programmable outputs Emergency operation via percentage timer GPS modem for position sensing SmartRain-ready VRI-ready Corner-ready
	Universal Touch Well-arranged touchscreen 4.3“ for most comfortable usability and visual display of the machine’s operational status Entry of up to 10 separate irrigation programs possible Division of the field into up to 6 different segments with different precipitation rates GPS modem for position sensing SmartRain-ready VRI-ready
	Smart Connect Communication via own radio network, therefore no GSM network is necessary Pressure monitoring on the last tower to guarantee optimal water distribution Intuitive menu navigation Including GPS module for optimal watering Auto reverse operation of the pivot Automatic notification of unexpected stops Storage of all irrigation operations and any errors for perfect traceability and data preparation

Drive

	Reliable - durable Gear motor High-torque motor with thermal overload protection Enclosed moisture-proof motor High efficiency spur gear Shaft seal with specific dirt-repellent profile
	For standard or mobile systems? Gear boxes Gear boxes for standard systems Worm gear for high torques, 50:1 gear ratio Large-sized tapered roller bearings Integrated expansion chamber Shaft seal with specific dirt-repellent profile Gear boxes for mobile systems Decoupling of worm for free-travel (towing) Simple to change from pivot mode to towing mode
	Comfort tires for highest demands Tires Wide variety of tires/tire dimensions for fine tuning for different soils and crops. Standard dimensions available 14.9 –24; 16.9 –24 Tires with traction profile Retracted hose for maximum operating safety Galvanized rims for optimal corrosion protection

App-Control

	SmartRain The GPS-supported application SmartRain offers new possibilities in irrigation management. No matter where the user is, he is always informed about the current status of his irrigation system and can also remotely control the machine at any time. More about SMARTRAIN
	Irricontrol The Irricontrol app offers the possibility to optimally use and monitor the irrigation systems. The data provided by Irricontrol give a clear overview of the applications and consumptions.

Sugarcane

Model	Type	Pipe Diameter mm	Span Length m	Overhang Length m	Clearance Height m	Wheelbase m
168	Fixed / Towable	168 (6 5/8")	42.25 / 48.10 / 53.95 / 59.80	5.90 / 11.70 / 17.60 / 23.40	3.10 / 3.90	4.30 / 5.20
219	Fixed / Towable	219 (8 5/8")	42.25 / 48.10 / 53.95	5.90 / 11.70 / 17.60	3.10 / 3.90	4.30 / 5.20
254	Fixed / Towable	254 (10")	36.40 / 42.25 / 48.10	5.90 / 11.70 / 17.60 / 23.40	3.10 / 3.90	4.30 / 5.20

The most efficient system beneath the sun Pivot and linear systems from BAUER Large fields place high demands on any irrigation system. Differing terrain as well as soil structures, crops and, above all, wind conditions in the field can significantly impact efficiency and profitability. BAUER rises to these challenges with intelligent and especially robust solutions. For instance with GPS-controlled pivot systems that adapt perfectly to the changing conditions. Precise alignment control and high-quality technology ensure perfect functioning. The wide wheelbase also provides greater stability under heavy winds and ensures uniform irrigation even under the most difficult conditions.	Pivot and linear systems from BAUER brochure
A BAUER system keeps its promises Low pressure systems are the key to success Irrigation efficiency due to even distribution Low pressure for cost optimization Consistent performance for different conditions Durability in all weather conditions Homogeneous and gentle precipitation Pivot and linear systems from BAUER The most efficient system under the sun The principles of efficiency and sustainability guide the way in the development of our pivot and linear systems. BAUER low-pressure systems can be operated at a connection pressure of less than 3 bar. This requires less work from the pump, which also improves cost-efficiency. BAUER systems are designed to supply a pressure of 1.1 bar at the end of the system (or 1 bar in the case of pressure reducing valves). Depending on the length and pipe friction losses, a pressure of 1.5 – 4 bar is sufficient at the connection point. Our pivot and linear systems impress with a uniform droplet size and balanced water distribution: The water is regularly distributed over the entire field area and can penetrate deep down to the roots of the plants. Irrigation close to the ground avoids puddles and creates the optimal conditions for uninterrupted growth and a reliable harvest. The pressure required for operation of the system is directly related to the efficiency of the irrigation system. With low-pressure irrigation systems, optimal water quantities can be spread across the field very cost-efficiently. BAUER systems operate with extremely high reliability and are unaffected by external factors such as soil, climate or crops.
	Innovation leadership and economic efficiency The advantages of BAUER More than 90 years of experience in the agricultural irrigation sector means that BAUER has accompanied generations of farmers in their irrigation activities and therefore knows perfectly the requirements they place on an irrigation machine. This is a perfect basis: As only those who know exactly the concerns and demands of the customers can develop the best solutions for optimal water utilization. As a medium-sized company based in Europe, BAUER is big enough to offer perfect irrigation solutions even for large-scale areas. At the same time we are also flexible enough to provide tailor-made solutions for all areas of application.
	Quality that passes through fire Maximum durability for highly corrosive liquids Water qualities vary widely. Nevertheless, expectations of long service life and efficiency are always equally high. In response, BAUER has developed a level of quality that withstands even highly corrosive fluids. Hot-dip galvanization of parts therefore takes place exclusively in ISO-certified workshops according to the most stringent European galvanization standards. For difficult liquids, pivot systems are made of stainless steel or with an interior coating.
	Geo-based planning based on sustainability. Turn-key and customized projects Thanks to decades of experience in the planning and implementation of individual irrigation systems, our specialists can design a wide variety of solutions from standalone systems to large-scale irrigation systems. This always happens according to the strictest European standards of quality and provides our customers with both environmental and economic benefits due to economical and efficient use of water.
