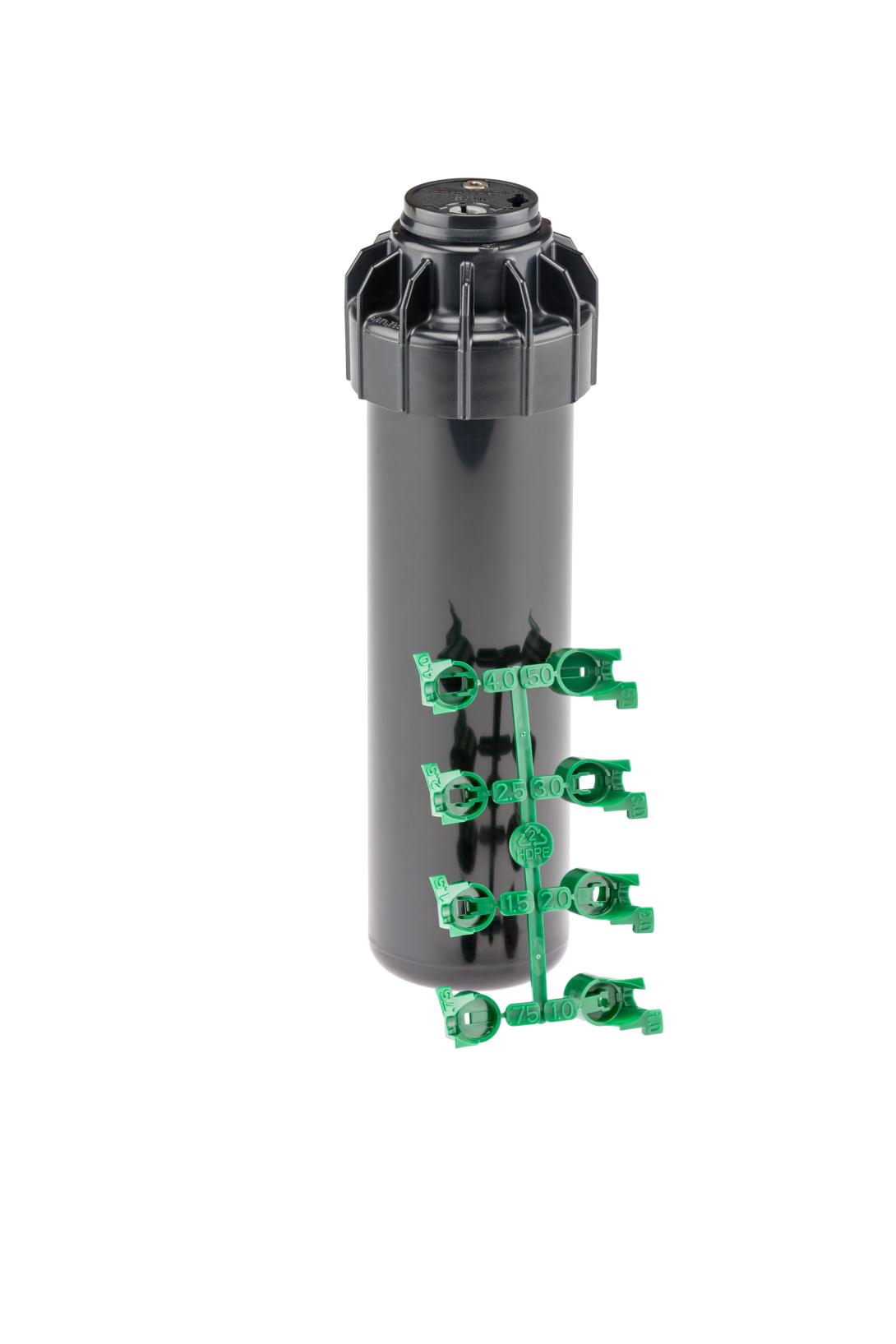

    SRM

    Manufacturer: Hunter
    The SRM is an economical short-range rotor that offers a convenient and efficient alternative to spray heads.

    Radius 4.3 to 10.7 m
    Flow 0.08 to 1.00 m³/hr
    Flow 1.4 to 16.7 l/min
    Inlet Size ½"

    • Radius adjustment up to 25%
    • Part circle and full circle operation in one unit
    • Proven water lubricated gear drive



    Manufacturer part number: SRM-00
    *

    Specifications

    Operating Specifications

    • Nozzle choices: 8
    • Radius: 4.0 to 10.7 m
    • Flow: 0.08 to 1.0 m3/hr; 1.4 to 16.7 l/min
    • Recommended pressure range: 1.4 to 7.0 bar; 140 to 700 kPa
    • Operating pressure range: 1.4 to 7.0 bar; 140 to 700 kPa
    • Precipitation rate: 11 mm/hr approximately
    • Nozzle trajectory: 14° approximately
    • Warranty period: 1 year

    User-Installed Optons

    • Drain Check Valve (up to 2.1 m of elevation) P/N: 462078SP

    Features

    The SRM is Hunter’s shortest-range rotor, and was designed to offer a convenient and efficient alternative to spray heads. It is capable of working in tandem with larger rotors to combine big and small areas in a single zone. Utilizing the SRM where appropriate results in fewer sprinklers performing more efficient work at a more economical price. The SRM features a rack of six water-efficient nozzles—all of which can be easily identified by their flow rates and installed and changed quickly and easily. This versatile rotor also includes a radius adjustment feature that fine-tunes the spray to keep water off driveways, walks, and other non-landscaped surfaces.

    Key Benefits

    Adjustable arc from 40° to 360° to keep water in the appropriate areas
    Standard factory-installed 2.0 nozzle speeds installation
    Through-the-top arc adjustment for easy installation
    QuickCheck™ arc mechanism for fast Arc Adjustment



    Charts

    SRM Nozzle Performance Data


    SRM Nozzle Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    .50 •
    Dk. Green
    		 1.7 170 4.3 0.08 1.4 9 11
    2 200 4.3 0.09 1.6 10 12
    2.5 250 4.6 0.11 1.8 10 12
    3 300 4.6 0.12 2 12 13
    3.5 350 4.9 0.13 2.2 11 13
    3.8 380 4.9 0.14 2.3 12 14
    .75 •
    Dk. Green
    		 1.7 170 4.3 0.13 2.2 14 17
    2 200 4.6 0.14 2.4 14 16
    2.5 250 4.9 0.16 2.7 13 15
    3 300 5.2 0.18 3 13 15
    3.5 350 5.2 0.19 3.2 14 17
    3.8 380 5.5 0.2 3.4 13 15
    1.0 •
    Dk. Green
    		 1.7 170 5.2 0.18 3 13 15
    2 200 5.5 0.19 3.2 13 15
    2.5 250 5.5 0.21 3.5 14 16
    3 300 5.8 0.23 3.8 14 16
    3.5 350 5.8 0.24 4.1 15 17
    3.8 380 6.1 0.25 4.2 14 16
    1.5 •
    Dk. Green
    		 1.7 170 6.1 0.27 4.5 15 17
    2 200 6.4 0.29 4.8 14 16
    2.5 250 6.4 0.32 5.4 16 18
    3 300 6.7 0.36 6 16 18
    3.5 350 6.7 0.39 6.4 17 20
    3.8 380 7 0.4 6.7 16 19
    2.0 •
    Dk. Green
    		 1.7 170 7 0.34 5.6 14 16
    2 200 7.3 0.37 6.2 14 16
    2.5 250 7.3 0.42 7.1 16 18
    3 300 7.6 0.48 8 17 19
    3.5 350 7.6 0.53 8.8 18 21
    3.8 380 7.9 0.56 9.3 18 20
    2.5 •
    Dk. Green
    		 1.7 170 7.9 0.46 7.6 15 17
    2 200 8.2 0.49 8.1 14 17
    2.5 250 8.2 0.54 9 16 18
    3 300 8.5 0.59 9.8 16 19
    3.5 350 8.5 0.63 10.5 17 20
    3.8 380 8.8 0.65 10.9 17 19
    3.0 •
    Dk. Green
    		 1.7 170 8.8 0.51 8.5 13 15
    2 200 9.1 0.56 9.3 13 15
    2.5 250 9.1 0.64 10.6 15 18
    3 300 9.4 0.72 12 16 19
    3.5 350 9.4 0.78 13.1 18 20
    3.8 380 9.8 0.82 13.7 17 20
    4.0 •
    Dk. Green
    		 1.7 170 9.8 0.8 13.3 17 19
    2 200 10.1 0.83 13.8 16 19
    2.5 250 10.1 0.89 14.8 18 20
    3 300 10.4 0.94 15.7 17 20
    3.5 350 10.4 0.98 16.3 18 21
    3.8 380 10.7 1 16.7 18 20

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.
    *
    *
    *
    *
