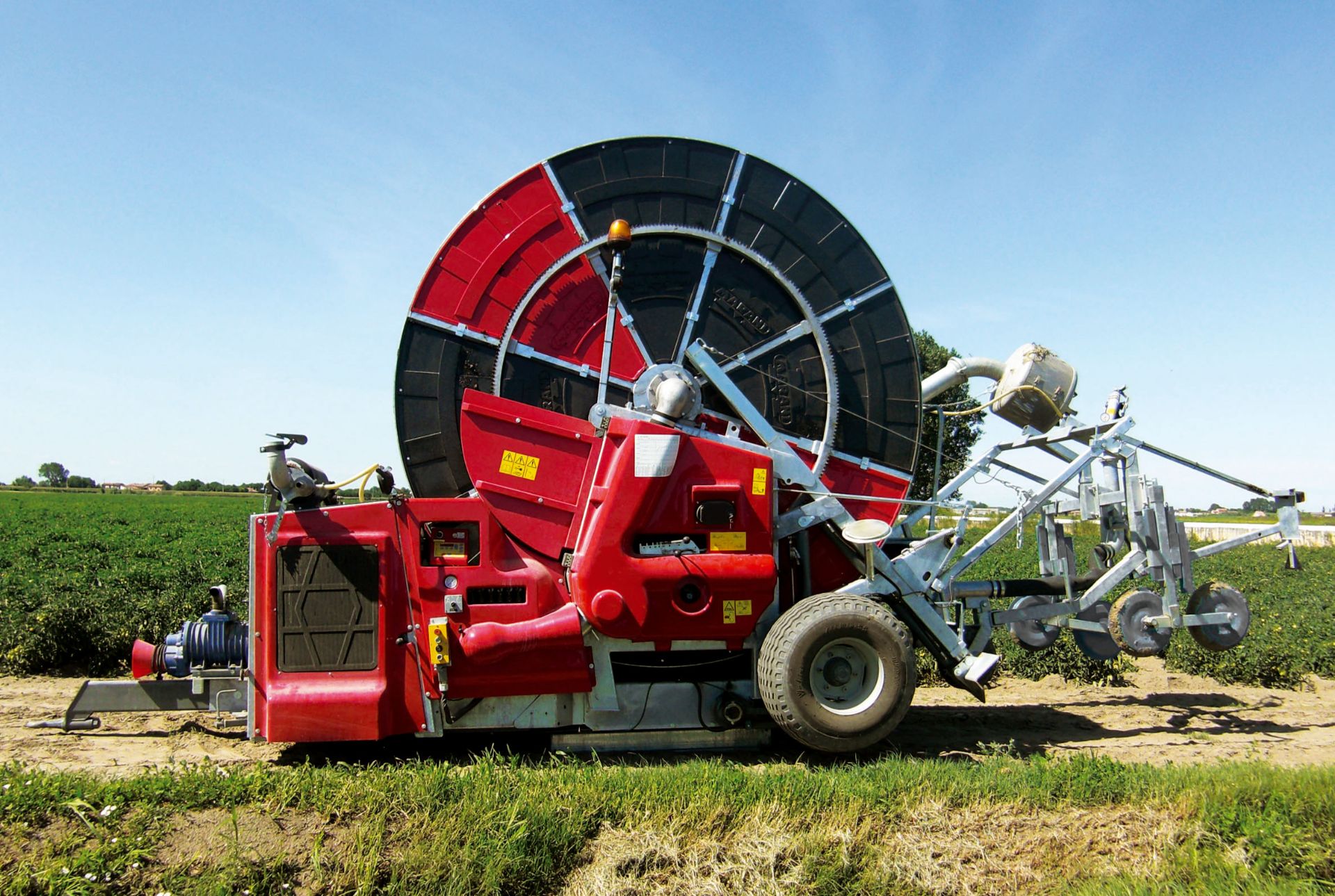

IT060BM

Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Hydraulic lifting of drawbar
Telescopic hydraulic feet
4 synchronized speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards
2 wheels 11.5/80-15.3 12PR 6F
Hot galvanized chassis and reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 100-110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140 water inlet Bauer Ø 133
Polyethylene hose made by unadulterated raw material

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
420	366	330	312	245	280	280	-

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
100	450	REFLEX	26/28/30	G	100VIR5M450.pdf
100	500	REFLEX	26/28/30	I	100VIR5M500.pdf
110	400	REFLEX	28/30/32	G	110VIR5M400.pdf
110	450	REFLEX	28/30/32	I	110VIR5M450.pdf
110	470	REFLEX	28/30/32	J	110VIR5M470.pdf
120	400	EXPLORER	32/34/36	I	120VIR5M400.pdf
125	320	EXPLORER	32/34/36	F	125VIR5M320.pdf
125	350	EXPLORER	32/34/36	H	125VIR5M350.pdf
125	380	EXPLORER	32/34/36	I	125VIR5M380.pdf
135	300	EXPLORER	34/36/38	A	135VIR5M300.pdf
140	290	EXPLORER	34/36/38	A	140VIR5M290.pdf
