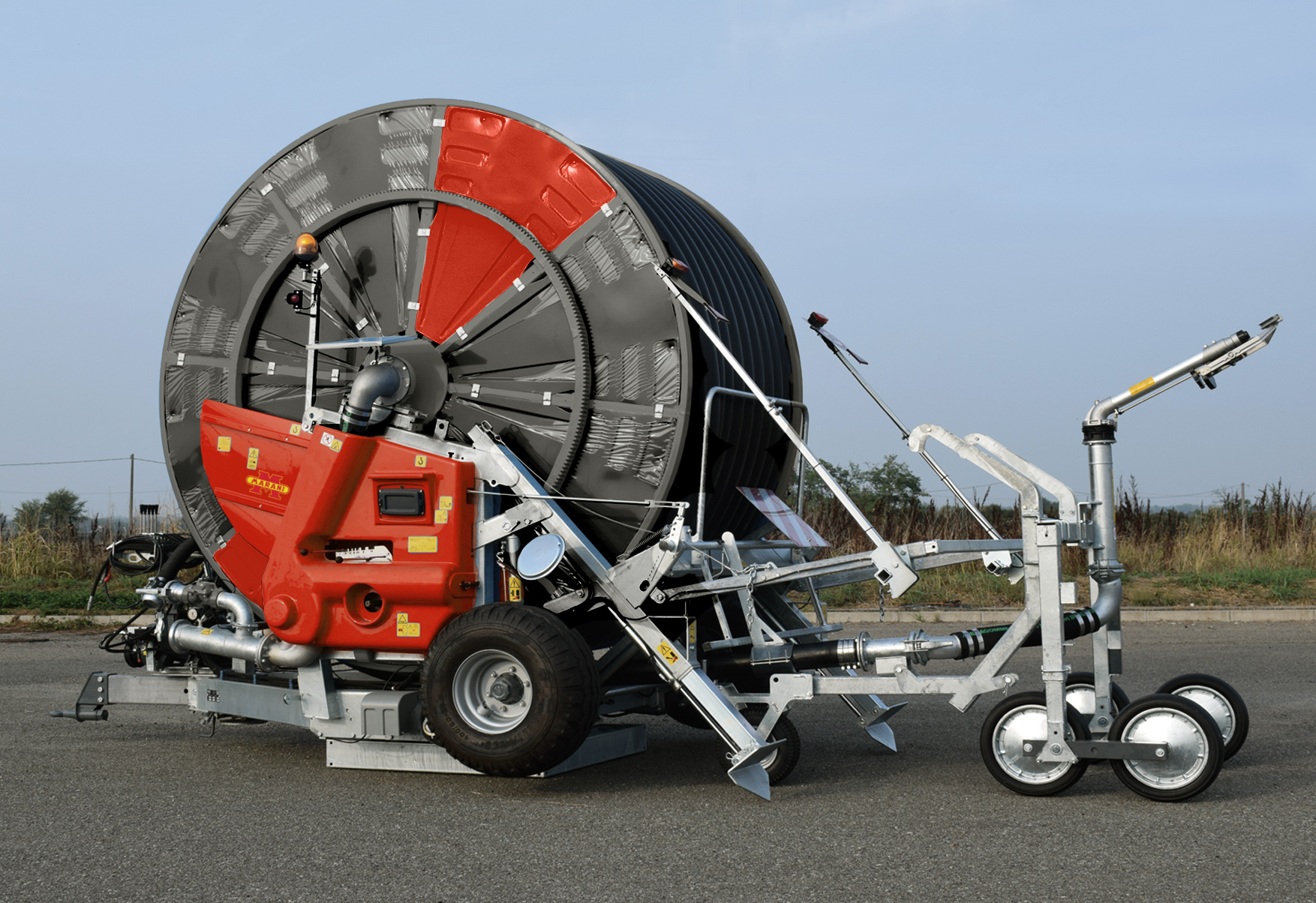

ITS080RM

Hydraulic rotation and hydraulic lifting of drawbar
Telescopic hydraulic feet
4 synchronized speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards
2 wheels mod. 19.0/45-17 22 PR
Safety guards made of steel, swaged galvanized and painted
Hot galvanized chassis and reel
Galvanized double water inlet
For hose diam. 110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140-150 water inlet Bauer Ø 133
Reinforced reel with 16 lateral supports
Reinforced stabilizer legs
Polyethylene hose made by unadulterated raw material

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.
410	395	362	341	249	282	309

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	620	REFLEX	24/26/28	I	110VIR7R620.pdf
110	670	REFLEX	24/26/28	E	110VIR7R670.pdf
120	550	EXPLORER	30/32/34	F	120VIR7R550.pdf
120	580	EXPLORER	30/32/34	H	120VIR7R580.pdf
120	620	EXPLORER	30/32/34	J	120VIR7R620.pdf
125	500	EXPLORER	32/34/36	F	125VIR7R500.pdf
125	530	EXPLORER	32/34/36	H	125VIR7R530.pdf
125	570	EXPLORER	32/34/36	J	125VIR7R570.pdf
