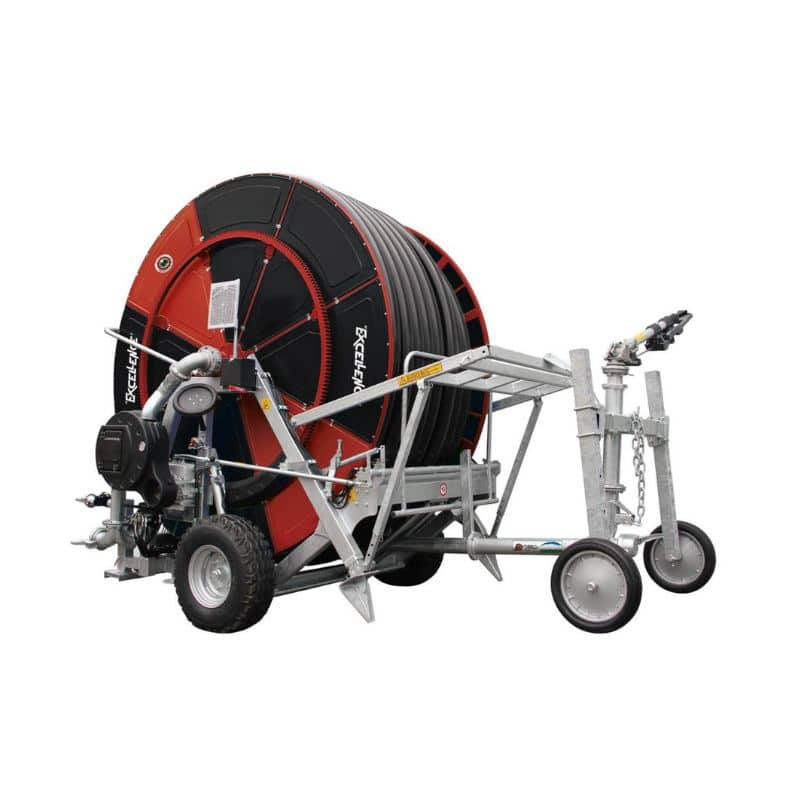

Orma ORMApiogg EXCELLENCE EC6 Turbine Drive Hard Hose Irrigators

The ORMApiogg Excellence EC6 is the ideal solution for efficient and effective irrigation. Designed for high performance and long-lasting durability, it ensures low management and maintenance costs while
providing reliable operation over time.

Thanks to ORMApiogg EC6 versatility and ease of use, it has become a benchmark for agriculture worldwide.

Standard equipment:

Two wheels hydraulic lifting
360° entire structure rotation
Hydraulic system with quick couplings to connect to the tractor
Five-lever distributor for 360° structure rotation, right wheel movement, left wheel movement, drawbar lifting foot, stabilizing brackets and sprinkler trolley lifting
Frame with adjustable in height and removable drawbar attachment
Drawbar hydraulic foot
Powder-coated sheet metal side protections for the reel
Galvanized frame and painted reel
Supplementary water inlet
High-efficiency turbine unit, operating even at low pressure
Flanged turbine on the gearbox with external bypass, speed regulator, and compensator
Four-speeds gearbox with automatic disengagement
PTO on the gearbox for quick rewinding
Automatic disengagement for out of shape polyethylene pipe retrieval
Automatic brake
Hose guide with winding screw
High-resistance polyethylene pipe with differentiated thickness
Manual winding crank
Glycerine-filled pressure gauge
Digital meter counter
Safety guards
Galvanized sprinkler trolley with 2 wheels and adjustable track width
Sectorial sprinkler with 3 standard nozzle set

EC6	Ø mm	100
	mt	480
