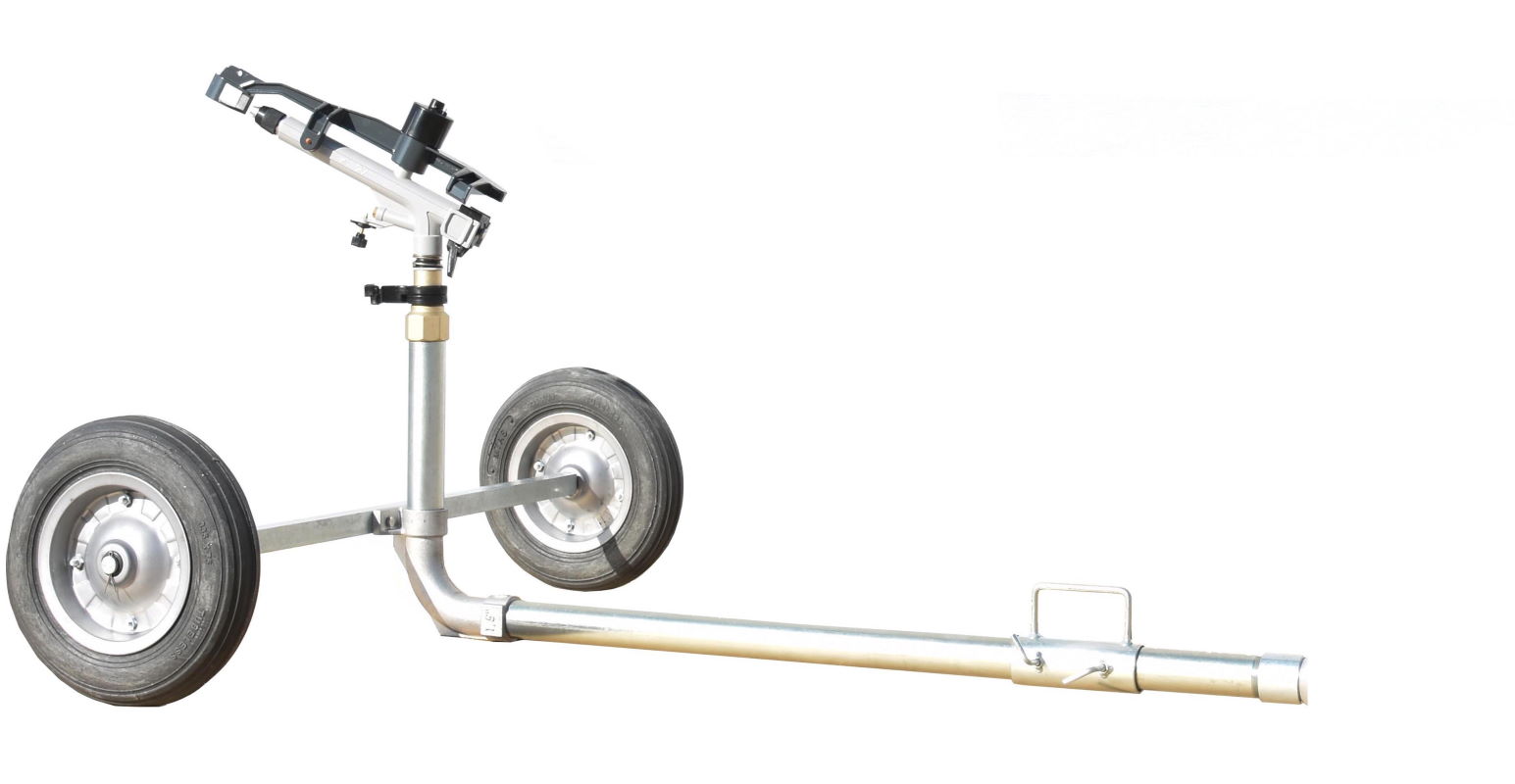

Portable, double-nozzle, long throw, big irrigation sprinkler with 1.5 inch inlet/outlet wheeled cart.


Water Input
:
1.5" Female BSP

Working Pressure
:
29 - 85 psi

Water Flow
:
152 - 533 l/min

Shooting Radius
:
20 - 35 m

Free Nozzles
:
12, 14, 16, 18 mm

Body Angle
:
27°

Sprayers
:
2

Material
:
Iron Cast, Aluminium & Brass

Made in
:
Turkey
Manufacturer part number: Atom35 w/wheeled

DuCaR ATOM 35 Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR ATOM 35 Metal sprinkler:

  • Comes with 3 different METAL nozzles (14, 16, 18 mm)
  • 2 Trajectories
  • Runs on pressure range between 29 to 85 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 70m diameter!
  • Lays down 9.3 to 32.5 tons of water per hour
  • Dynamic or attached jet breakers
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
  • Great for any field crops and vegetables
  • Auto BRAKE system for keeping slow rotation speed on high pressure.
  • Full METAL Body and BRASS housing.
Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
12 .47 2 29 20,0 66 152 9,3 41 1256 0,31 7,4
12 .47 3 44 24,0 79 182 11,2 49 1809 0,45 6,2
12 .47 4 56 27,0 89 211 13,0 57 2289 0,57 5,7
12 .47 5 70 28,0 92 236 14,2 63 2462 0,61 5,2
14 .55 2 29 21,0 69 195 12,1 53 1384 0,34 8,4
14 .55 3 44 25,0 82 239 14,5 64 1962 0,48 7,4
14 .55 4 56 29,0 95 277 16,9 74 2640 0,65 6,4
14 .55 5 70 30,0 98 309 18,9 83 3017 0,75 6,3
16 .62 2 29 22,0 72 247 15,2 67 1519 0,38 10,0
16 .62 3 44 26,0 85 303 18,9 83 2123 0,52 8,9
16 .62 4 56 30,0 98 351 21,5 95 2826 0,70 7,5
16 .62 5 70 32,0 105 391 24,0 106 3215 0,79 6,9
18 .70 3 44 27,0 89 378 23,1 102 2461 0,61 9,4
18 .70 4 56 30,0 98 436 27,0 119 3017 0,75 8,9
18 .70 5 70 34,0 112 487 30,1 133 3629 0,90 8,1
18 .70 6 85 35,0 115 533 32,5 143 3847 0,95 7,9
