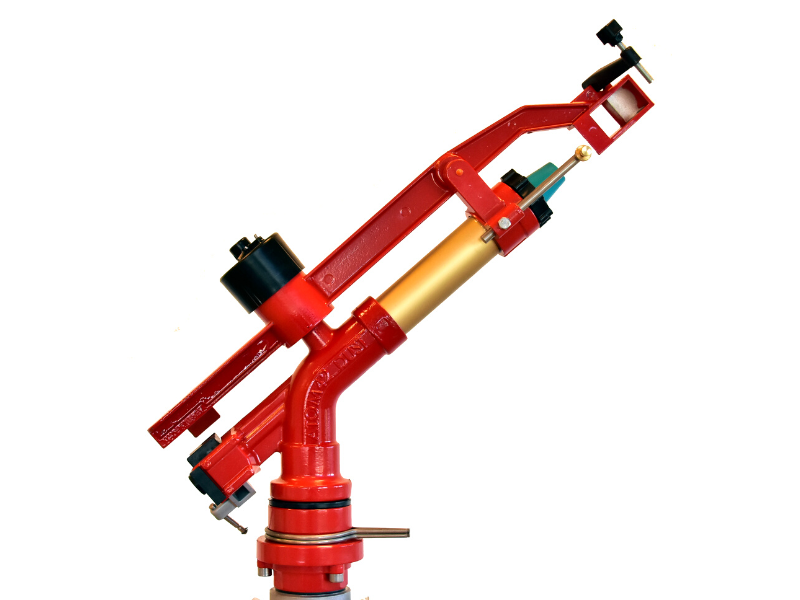

Atom 42 Dust Suppression Impact Sprinkler

Manufacturer: DuCaR Sprinklers Australia

Be the first to review this product

High flow & long throw ranges, full circle and part circle impact irrigation sprinkler.

Water Input

2" Female BSP

Working Pressure

44 - 85 psi

Water Flow

208 - 767 l/min

Shooting Radius

26 - 43 m

Free Nozzles

14, 16, 18, 20, 22 mm

Body Angle

43°

Box Dimensions

55x34x12 cm

Weight

3.5 kg

Sprayers

Material

Cast-Iron, Aluminium & Brass

Made in

Turkey

Manufacturer part number: Atom42DUST

DuCaR ATOM 42 Dust Suppression Impact Sprinkler is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

It wets and damps wide range of areas with minimum water consumption thanks to its special construction. With its transmission, it allows spread of water drops over the working site in a cloud of mist. It has equal rotation speed, forward and backward. With its stainless rotating bearings coated with special powder paint, Dustjet is protected against mild and medium degree chemical waters.

Some unique benefits of DuCaR ATOM 42 Metal sprinkler:

Comes with 14, 16, 18, 20, 22 mm nozzles
Runs on pressure range between 44 to 85 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 85m diameter!
Lays down 11 to 51 tons of water per hour
Dynamic or attached jet breakers
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Replaceable nozzle ends
Great for dust suppression
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m	feet	m
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			H (Maximum Height)		DH
14	.55	3	44	26	85	208	12.5	55	10	33	14
14	.55	4	56	28	92	253	15.2	67	12.5	41	17
14	.55	5	70	30	98	283	17	75	14	46	18
14	.55	6	85	32	105	317	19	84	15	49	20
16	.62	3	44	29	95	283	17	75	10	33	16
16	.62	4	56	32	105	325	19.5	86	13	43	18
16	.62	5	70	33	108	367	22	97	14	48	19
16	.62	6	85	36.5	120	400	24	106	15.5	51	22
18	.70	4	56	34.5	113	433	26	114	13	43	19
18	.70	5	70	37	121	467	28	123	15.3	50	21
18	.70	6	85	38	125	517	31	136	16.7	55	23
20	.78	3	44	31	102	450	27	119	10.5	34	19
20	.78	4	56	35	115	517	31	136	13.5	44	20
20	.78	5	70	37.5	123	583	35	154	15.5	51	22
20	.88	6	85	40	131	633	38	167	17.2	56	25
22	.86	3	44	35	115	542	32.5	143	11	36	22
22	.86	4	56	38.5	126	633	38	167	14	46	24
22	.86	5	70	41	134	700	42	185	16	52	26
22	.86	6	85	43	141	767	46	203	18.5	61	28
