MLD

Specifications

PRODUCT SPECIFICATIONS

Colours: brown or black polyethylene
Emitter spacing: 15 cm or 30 cm
Coil sizes: 30 m or 75 m
6.4 mm x 4.5 mm (outside/inside diameters)
Use with 6 mm barb fittings

OPERATING SPECIFICATIONS

Pressure range: 0.7 to 2.8 bar; 70 to 280 kPa
Minimum filtration: 150 mesh; 120 microns
Maximum run lengths: 15 cm = 4.6 m; 30 cm = 9.2 m
Warranty period: 2 years

Features

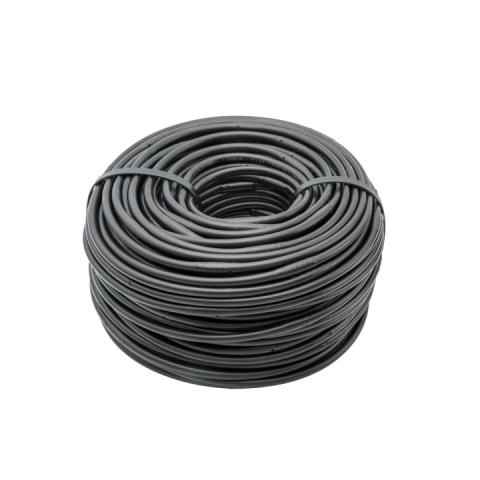

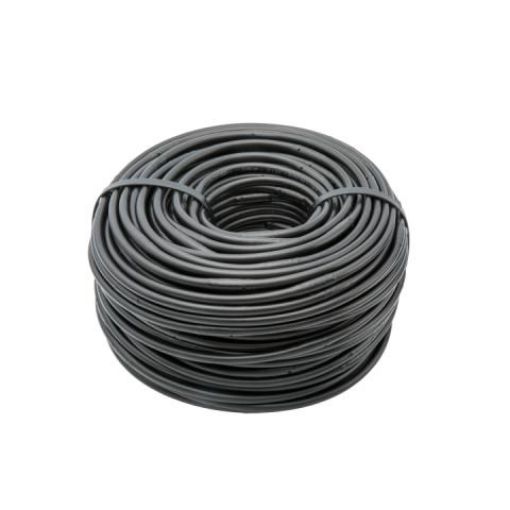

The Mini Landscape Dripline (MLD) is a 6mm dripline used for shorter runs, raised planters and pots, and for small landscaping beds. When 17mm dripline is too large for an area, consider using this 6mm version which has even better flexibility. Non-pressure compensating emitters are spaced at either 15cm or 30cm intervals inside a black or brown tube.

Key Benefits

Superior flexibility makes MLD an excellent choice for small spaces and raised containers

Properly irrigates without being intrusive to the landscape
