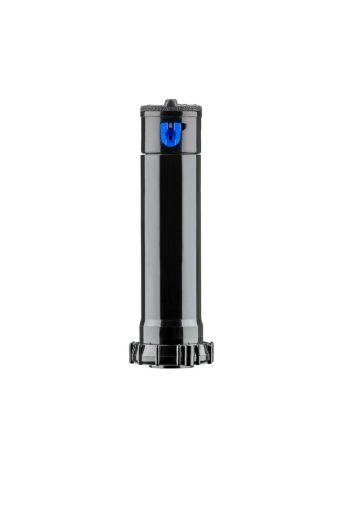

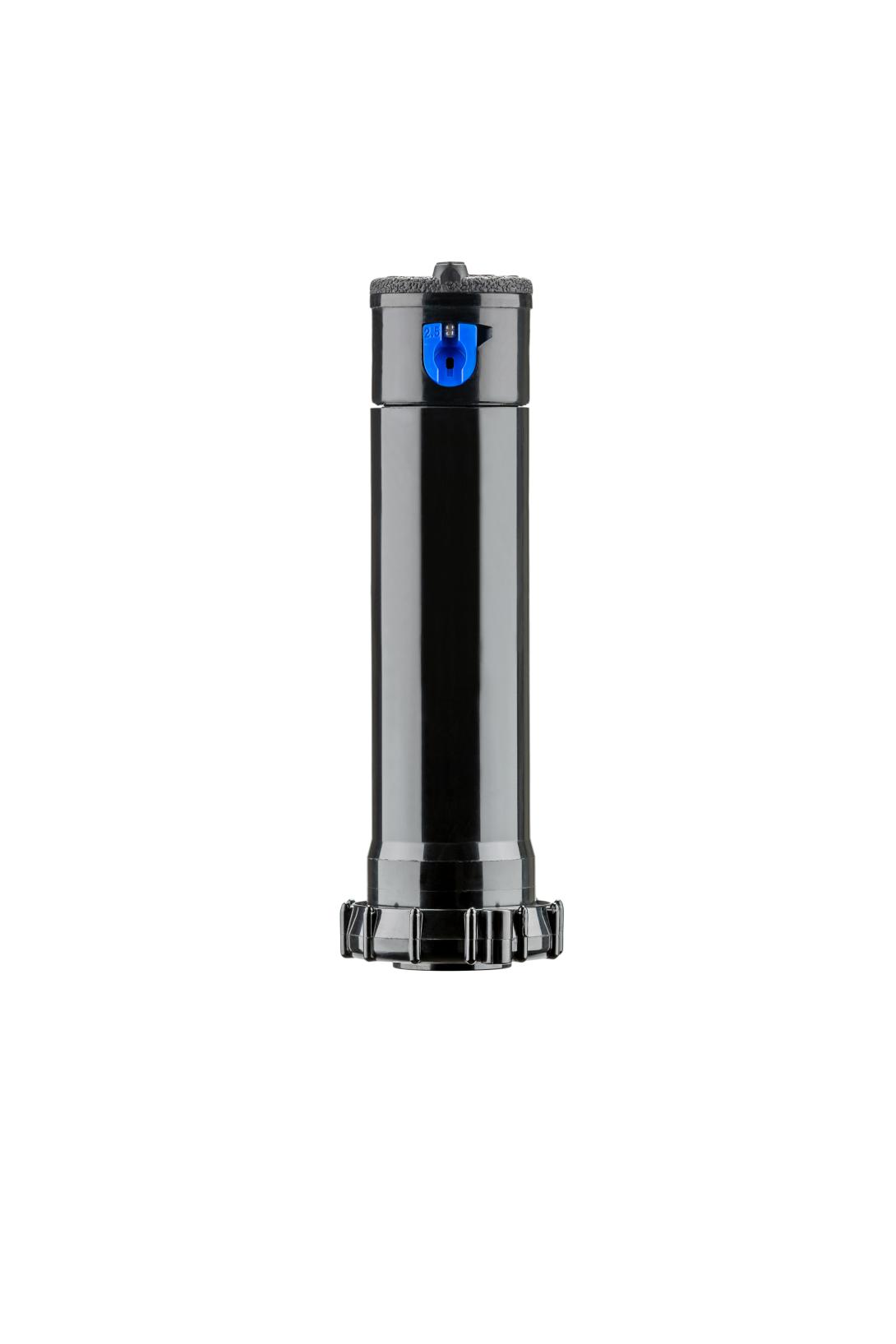

    PGP Ultra

    Manufacturer: Hunter
    The PGP Ultra raises the bar for rotor technology with powerful features developed over three decades of research, customer feedback, and lab testing.

    Radius 4.9 to 14.0 m
    Flow 0.07 to 3.23 m³/hr
    Flow 1.2 to 53.8 l/min
    Inlet Size ¾" BSP

    • Automatic arc return: Returns to the original arc regardless of where the turret is turned
    • Patented non-reversing 360º for part- and full-circle in one model, from 50º to 360º
    • Includes an easy–to–install, square top rack of 8 standard nozzles
    • Optional racks of short–range nozzles for smaller areas are also available
    • Available in shrub, 10 cm, 15 cm, and 30 cm pop–up
    Manufacturer part number: PGP-00
    *

    Specifications

    Operating Specifications

    • Nozzle choices: 34
    • Radius: 4.9 to 14.0 m
    • Flow: 0.07 to 3.23 m3/hr; 1.2 to 53.8 l/min
    • Recommended pressure range: 1.7 to 4.5 bar; 170 to 450 kPa
    • Operating pressure range: 1.4 to 7.0 bar; 140 to 700 kPa
    • Precipitation rate: 10 mm/hr approximately
    • Nozzle trajectory: standard = 25°, low-angle = 13°
    • Nozzle racks: 1.5 to 8.0 blue, 2.0 to 4.5 low-angle grey, 0.50 to 3.0 black, 6.0 to 13.0 green, MPR-25, MPR-30, MPR-35
    • Warranty period: 5 years

    Factory-Installed Options

    • Drain check valve (up to 3 m of elevation)
    • Reclaimed water ID
    • Blue #1.5–4.0 nozzles

    User-Installed Options

    • Drain check valve (up to 1 m of elevation) PGP-04 only (P/N 142300SP)
    • HSJ-0 prefabricated ¾" PVC swing joint

    Features

    The PGP Ultra takes the foundation of the best-selling PGP Rotor and raises the bar with a variety of new features developed over three decades of research, customer feedback, and lab testing. Among the most notable improvements of the PGP Ultra is its non-strippable drive and automatic arc return. These two features work to allow the turret to be turned without causing damage, and return the turret to its original arc regardless of where it is turned. Other advanced features include 34 nozzle options with several radius choices, and a headed slot and set screw. The diversity of the PGP Ultra offers system installers an array of efficient options on any site.

    Key Benefits

    Patented automatic arc return feature returns the turret back to the original arc pattern if vandalised; adjustable arc from 50° to 360°
    Non-strippable drive mechanism is protected from damage if turned in the opposite direction of travel
    Part- and full-circle in one model for flexibility across landscapes and reduced inventory
    Headed and slotted setscrew allows radius adjustment with a Hunter wrench or flat-blade screwdriver
    Flat-top nozzles allow fast, easy insertion
    QuickCheck™ arc mechanism for fast arc adjustment

    Advanced Features

    Automatic Arc Return

    This patented feature returns the turret to the original arc regardless of where it is turned. This ensures vandal protection in any environment.

    Advanced Feature - Auto Arc Return

    Non-Strippable Drive

    The patented, non-strippable, vandal proof drive mechanism enables the turret to be turned without causing damage.

    Part- and Full-Circle in One Model

    Patented non-reversing 360 for part- and full-circle in one model, from 50 to 360 degrees.

    Advanced Feature - Part- And Full-Circle in One Model

    Headed and Slotted Set Screw

    Use a slotted screwdriver or the Hunter wrench for easier and simpler adjustments as needed.

    Optional Reclaimed Water ID

    Purple caps indicate where non-potable irrigation water is being used.

    Drain Check Valve (up to 3.0 m of elevation)

    As air in the system piping can cause long-term damage to rotors and plumbing, the drain check valve keeps lines from draining when the system is shut off. This saves water, reduces liability, and increases system life.



    Charts

    PGP Ultra / I-20 Blue Standard Nozzle Performance Data


    PGP Ultra / I-20 Blue Standard
    Nozzle Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    1.5 •
    Blue
    		 1.7 170 8.8 0.27 4.5 7 8
    2.0 200 9.1 0.29 4.8 7 8
    2.5 250 9.4 0.32 5.4 7 8
    3.0 300 9.8 0.35 5.9 7 9
    3.5 350 9.8 0.38 6.4 8 9
    4.0 400 9.8 0.41 6.8 9 10
    4.5 450 9.4 0.43 7.2 10 11
    2.0 •
    Blue
    		 1.7 170 10.1 0.32 5.4 6 7
    2.0 200 10.1 0.35 5.8 7 8
    2.5 250 10.1 0.39 6.5 8 9
    3.0 300 10.4 0.43 7.2 8 9
    3.5 350 10.4 0.47 7.8 9 10
    4.0 400 10.4 0.50 8.3 9 11
    4.5 450 10.4 0.53 8.8 10 11
    2.5 •
    Blue
    		 1.7 170 10.1 0.39 6.6 8 9
    2.0 200 10.4 0.43 7.1 8 9
    2.5 250 10.7 0.48 8.0 8 10
    3.0 300 10.7 0.54 8.9 9 11
    3.5 350 10.7 0.58 9.7 10 12
    4.0 400 10.7 0.62 10.4 11 13
    4.5 450 10.7 0.66 11.1 12 13
    3.0 •
    Blue
    		 1.7 170 10.7 0.50 8.4 9 10
    2.0 200 10.7 0.54 9.1 10 11
    2.5 250 11.0 0.61 10.2 10 12
    3.0 300 11.6 0.68 11.4 10 12
    3.5 350 11.9 0.74 12.3 10 12
    4.0 400 11.9 0.79 13.2 11 13
    4.5 450 11.9 0.84 14.0 12 14
    4.0 •
    Blue
    		 1.7 170 11.3 0.68 11.3 11 12
    2.0 200 11.6 0.73 12.2 11 13
    2.5 250 11.9 0.81 13.6 12 13
    3.0 300 12.2 0.90 15.0 12 14
    3.5 350 12.2 0.97 16.2 13 15
    4.0 400 12.5 1.04 17.3 13 15
    4.5 450 12.5 1.10 18.3 14 16
    5.0 •
    Blue
    		 1.7 170 11.3 0.84 14.0 13 15
    2.0 200 11.6 0.91 15.2 14 16
    2.5 250 11.9 1.02 17.1 15 17
    3.0 300 12.8 1.14 19.0 14 16
    3.5 350 12.8 1.24 20.6 15 17
    4.0 400 12.8 1.32 22.1 16 19
    4.5 450 12.8 1.41 23.4 17 20
    6.0 •
    Blue
    		 1.7 170 11.6 1.01 16.8 15 17
    2.0 200 11.9 1.09 18.2 15 18
    2.5 250 12.2 1.22 20.4 16 19
    3.0 300 13.1 1.36 22.7 16 18
    3.5 350 13.1 1.47 24.5 17 20
    4.0 400 13.4 1.57 26.2 18 20
    4.5 450 13.4 1.67 27.9 19 21
    8.0 •
    Blue
    		 1.7 170 11.3 1.35 22.5 21 25
    2.0 200 11.9 1.46 24.3 21 24
    2.5 250 12.5 1.63 27.2 21 24
    3.0 300 13.4 1.81 30.2 20 23
    3.5 350 13.7 1.95 32.6 21 24
    4.0 400 14.0 2.09 34.8 21 25
    4.5 450 14.0 2.22 36.9 23 26

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

    PGP Ultra / I-20 Low-Angle Nozzle Performance Data


    PGP Ultra / I-20 Grey Low Angle
    Nozzle Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    2.0
    LA •
    Grey
    		 1.7 170 7.3 0.33 5.6 12 14
    2.0 200 7.6 0.36 6.0 12 14
    2.5 250 7.9 0.40 6.7 13 15
    3.0 300 8.2 0.45 7.4 13 15
    3.5 350 8.5 0.48 8.0 13 15
    4.0 400 8.8 0.52 8.6 13 15
    4.5 450 9.1 0.55 9.1 13 15
    2.5
    LA •
    Grey
    		 1.7 170 7.9 0.44 7.3 14 16
    2.0 200 8.2 0.47 7.9 14 16
    2.5 250 8.8 0.53 8.8 14 16
    3.0 300 9.4 0.59 9.8 13 15
    3.5 350 10.1 0.64 10.6 13 15
    4.0 400 10.4 0.68 11.3 13 15
    4.5 450 10.7 0.72 12.0 13 15
    3.5
    LA •
    Grey
    		 1.7 170 8.5 0.58 9.7 16 18
    2.0 200 8.8 0.62 10.3 16 18
    2.5 250 9.1 0.68 11.4 16 19
    3.0 300 10.1 0.75 12.5 15 17
    3.5 350 10.7 0.80 13.3 14 16
    4.0 400 11.0 0.85 14.1 14 16
    4.5 450 11.3 0.89 14.8 14 16
    4.5
    LA •
    Grey
    		 1.7 170 8.2 0.71 11.8 21 24
    2.0 200 8.8 0.76 12.7 19 23
    2.5 250 9.1 0.84 14.1 20 23
    3.0 300 10.1 0.93 15.5 18 21
    3.5 350 10.7 1.00 16.6 18 20
    4.0 400 11.0 1.06 17.6 18 20
    4.5 450 11.3 1.12 18.6 18 20

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

    PGP Ultra / I-20 High-Flow Nozzle Performance Data


    PGP Ultra / I-20 High Flow Nozzle
    Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    10 •
    Dk. Green
    		 1.7 170 10.7 1.48 24.6 26 30
    2.0 200 11.9 1.60 26.7 23 26
    2.5 250 12.5 1.80 30.0 23 27
    3.0 300 12.8 2.01 33.5 25 28
    3.5 350 13.1 2.18 36.3 25 29
    4.0 400 13.7 2.34 39.0 25 29
    4.5 450 14.0 2.49 41.5 25 29
    13 •
    Dk. Green
    		 1.7 170 11.0 1.91 31.9 32 37
    2.0 200 12.2 2.08 34.6 28 32
    2.5 250 12.8 2.34 38.9 29 33
    3.0 300 13.1 2.61 43.4 30 35
    3.5 350 13.4 2.83 47.1 31 36
    4.0 400 13.7 3.03 50.5 32 37
    4.5 450 14.0 3.23 53.8 33 38
    6.0
    LA •
    Dk. Green
    		 1.7 170 9.1 0.86 14.3 21 24
    2.0 200 9.4 0.94 15.6 21 24
    2.5 250 10.1 1.07 17.8 21 24
    3.0 300 10.7 1.20 20.0 21 24
    3.5 350 11.3 1.31 21.9 21 24
    4.0 400 11.6 1.42 23.6 21 24
    4.5 450 11.9 1.52 25.3 21 25
    8.0
    LA •
    Dk. Green
    		 1.7 170 10.1 1.17 19.5 23 27
    2.0 200 10.7 1.28 21.3 22 26
    2.5 250 11.3 1.44 24.0 23 26
    3.0 300 11.6 1.61 26.9 24 28
    3.5 350 11.9 1.76 29.3 25 29
    4.0 400 12.5 1.89 31.5 24 28
    4.5 450 12.5 2.01 33.6 26 30

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

    PGP Ultra / I-20 Black Short-Radius Nozzle Performance Data


    PGP Ultra / I-20 Black Short Radius Nozzle Performance Data
    View Nozzle
    Nozzle Pressure Radius Flow Precip mm/hr
      bar kPa m m³/hr l/min
    .50
    SR •
    Black
    		 1.7 170 4.9 0.07 1.2 6 7
    2.0 200 5.2 0.08 1.3 6 7
    2.5 250 5.2 0.09 1.5 7 8
    3.0 300 5.2 0.10 1.7 8 9
    3.5 350 5.5 0.12 1.9 8 9
    4.0 400 5.5 0.13 2.1 8 10
    4.5 450 5.5 0.14 2.3 9 10
    1.0
    SR •
    Black
    		 1.7 170 4.9 0.16 2.7 14 16
    2.0 200 5.2 0.17 2.9 13 15
    2.5 250 5.2 0.19 3.2 14 17
    3.0 300 5.2 0.21 3.6 16 18
    3.5 350 5.5 0.23 3.8 15 18
    4.0 400 5.5 0.25 4.1 16 19
    4.5 450 5.5 0.26 4.3 17 20
    2.0
    SR •
    Black
    		 1.7 170 4.9 0.28 4.7 24 27
    2.0 200 5.2 0.31 5.2 23 27
    2.5 250 5.2 0.36 6.0 27 31
    3.0 300 5.2 0.41 6.9 31 35
    3.5 350 5.5 0.45 7.6 30 35
    4.0 400 5.5 0.49 8.2 33 38
    4.5 450 5.5 0.53 8.9 35 41
    .75
    SR •
    Black
    		 1.7 170 6.7 0.12 2.0 5 6
    2.0 200 7.0 0.13 2.2 5 6
    2.5 250 7.0 0.15 2.4 6 7
    3.0 300 7.3 0.16 2.7 6 7
    3.5 350 7.6 0.17 2.9 6 7
    4.0 400 7.6 0.19 3.1 6 7
    4.5 450 7.6 0.20 3.3 7 8
    1.5
    SR •
    Black
    		 1.7 170 6.7 0.23 3.8 10 12
    2.0 200 7.0 0.25 4.1 10 12
    2.5 250 7.0 0.28 4.6 11 13
    3.0 300 7.3 0.31 5.2 12 13
    3.5 350 7.6 0.34 5.6 12 13
    4.0 400 7.6 0.36 6.0 12 14
    4.5 450 7.6 0.39 6.4 13 15
    3.0
    SR •
    Black
    		 1.7 170 6.7 0.53 8.9 24 27
    2.0 200 7.0 0.56 9.3 23 26
    2.5 250 7.0 0.60 10.0 24 28
    3.0 300 7.3 0.64 10.7 24 28
    3.5 350 7.6 0.67 11.2 23 27
    4.0 400 7.6 0.70 11.7 24 28
    4.5 450 7.6 0.73 12.1 25 29

    Notes:
    All precipitation rates calculated for 180 degree operation. For the precipitation rate for a 360 degree sprinkler, divide by 2.

    MPR-25 Red Nozzle Performance Data


    PGP ULTRA / I-20 MPR-25 RED NOZZLE PERFORMANCE DATA
    View Nozzle
    Arc Pressure Radius Flow Precip mm/hr
      bar kPa m m3/hr l/min
    •
    Red
    90°
    		1.7 170 7.0 0.17 3.0</
    *
    *
    *
    *
