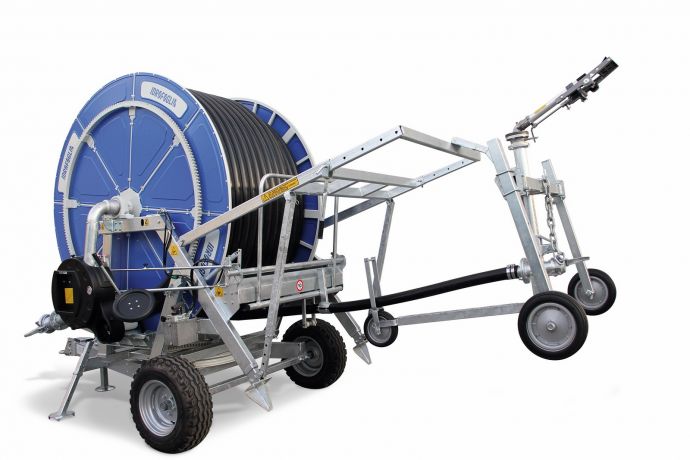

Turbocar Active G4

Hose reel irrigator with turntable 360°equipped with:

Galvanized frame and painted reel
Mechanical parts painted with RAL 5017
Flanged turbine on the gearbox, speed control and compensator
Gearbox 4 speeds with automatic drive disengagement, device for rewinding through PTO and rewinding out of the drum
Leadscrew hose layering device
3 wheels sprinkler trolley with adjustable track
Hydraulic lift operations through manual pump for trolley lift and staker leg
Drawbar with connection adjustable in height, mechanical jack and lateral staker legs
Drum rotation that can be operated from trolley lifting device through release lever
Sectoring sprinkler with set of nozzles
Supply hose 4 mt. with female ball joint on line side
Double water inlet
Instructions and maintenance handbook
Guarantee coupon

The G4 is designed for larger surfaces, with hose capacity up to 480 meters. It retains the 360° rotating turret and 4-speed gearbox, offering extended coverage without compromising stability and ease of transport. Recommended for those who need versatility over large areas.

Serie	Codice	Diametro tubo	Lunghezza tubo	Irrigatore
G4	90 G 380	mm 90	mt 380	Reflex / Twin 140
G4	90 G 400	mm 90	mt 400	Reflex / Twin 140
G4	90 G 420	mm 90	mt 420	Reflex / Twin 140
G4	90 G 440	mm 90	mt 440	Reflex / Twin 140
G4	90 G 480	mm 90	mt 480	Reflex / Twin 140
G4	90 G 320	mm 90	mt 320	Reflex / Twin 140
G4	100 G 320	mm 100	mt 320	Reflex / Twin 140
G4	100 G 350	mm 100	mt 350	Reflex / Twin 140
G4	100 G 400	mm 100	mt 400	Reflex / Twin 140
G4	100 G 450	mm 100	mt 450	Reflex / Twin 140
G4	110 G 270	mm 110	mt 270	Reflex / Twin 160
G4	110 G 300	mm 110	mt 300	Reflex / Twin 160
G4	110 G 340	mm 110	mt 340	Reflex / Twin 160
G4	120 G 230	mm 120	mt 230	Explorer / Twin 202
G4	120 G 270	mm 120	mt 270	Explorer / Twin 202
G4	125 G 220	mm 125	mt 220	Explorer / Twin 202
