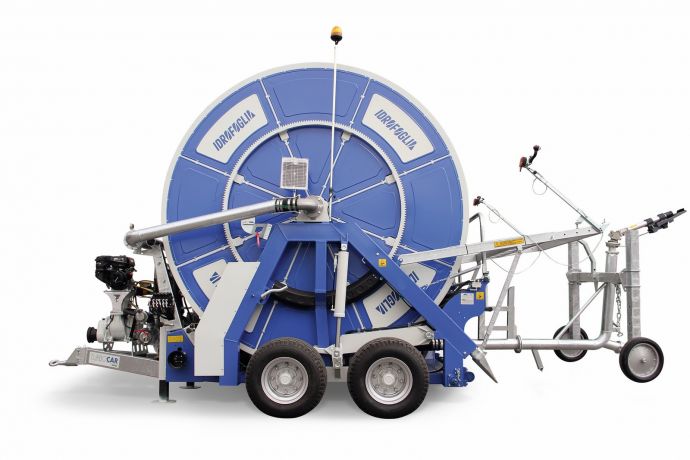

Turbocar Extreme IG4

Hose reel irrigator with turntable 360° and wheels hydraulically raised/lowered, equipped with:

Painted frame
Painted reel RAL 5017
Mechanical parts painted with RAL 5017
Flanged turbine on the gearbox, speed control and compensator
4 speed gearbox, with mechanical drive disengagement, device for rewinding through PTO and rewinding out of the drum
Digital hour meter
Leadscrew hose layering device
2 wheels sprinkler trolley with adjustable track
Hydraulic system with quick clutches to be connected to the tractor and with five control levers for: rotation, right and left wheel lift, jack, trolley lift and staker legs
Drawbar with adjustable connection in height
Sectoring sprinkler with set of nozzles
Supply hose 4 mt. with female ball joint on line side
Double water inlet
Instructions and maintenance handbook
Guarantee coupon

Designed for large surfaces and demanding conditions, the IG4 combines a 4-speed mechanical gearbox with a robust reinforced frame. Hydraulic wheel lift facilitates transport and positioning.
Reliable and high-performing even in complex agricultural environments.

Serie	Codice	Diametro tubo	Lunghezza tubo	Irrigatore
IG4	125 IG 700	mm 125	mt 700	Explorer / Twin 202
IG4	125 IG 750	mm 125	mt 750	Explorer / Twin 202
IG4	135 IG 650	mm 135	mt 650	Explorer / Twin 202
IG4	140 IG 550	mm 140	mt 550	Explorer / Twin 202
IG4	140 IG 600	mm 140	mt 600	Explorer / Twin 202
IG4	150 IG 500	mm 150	mt 500	Explorer / Twin 202
IG4	160 IG 400	mm 160	mt 400	Master
