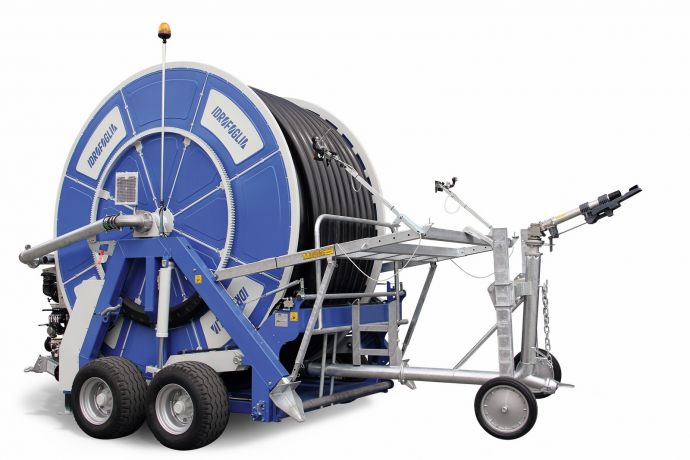

Turbocar Extreme IG5

Hose reel irrigator with turntable 360° and wheels hydraulically raised/lowered, equipped with:

Painted frame
Painted reel RAL 5017
Mechanical parts painted with RAL 5017
Flanged turbine on the gearbox, speed control and compensator
4 speed gearbox, with mechanical drive disengagement, device for rewinding through PTO and rewinding out of the drum
Digital hour meter
Leadscrew hose layering device
2 wheels sprinkler trolley with adjustable track
Hydraulic system with quick clutches to be connected to the tractor and with five control levers for: rotation, right and left wheel lift, jack, trolley lift and staker legs
Drawbar with adjustable connection in height
Sectoring sprinkler with set of nozzles
Supply hose 4 mt. with female ball joint on line side
Double water inlet
Instructions and maintenance handbook
Guarantee coupon

A high-end model for professional irrigation of large areas, the IG5 features a 4-speed mechanical system, enhanced structure, and superior stability. The hydraulic wheel lift ensures maneuverability and speed in the field, even on uneven terrain.

Serie	Codice	Diametro tubo	Lunghezza tubo	Irrigatore
IG5	125 IG 800	mm 125	mt 800	Explorer / Twin 202
IG5	140 IG 650	mm 140	mt 650	Explorer / Twin 202
IG5	140 IG 700	mm 140	mt 700	Explorer / Twin 202
IG5	150 IG 550	mm 150	mt 550	Explorer / Twin 202
IG5	150 IG 580	mm 150	mt 580	Explorer / Twin 202
IG5	150 IG 600	mm 150	mt 600	Explorer / Twin 202
IG5	160 IG 450	mm 160	mt 450	Explorer / Twin 202
IG5	160 IG 450	mm 160	mt 480	Master
