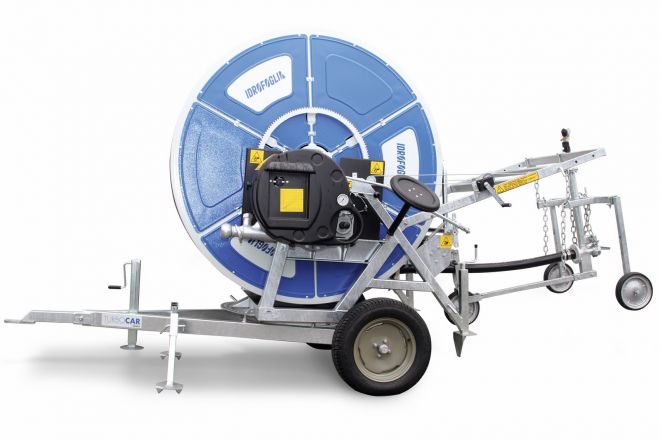

Turbocar Smart G1

Hose reel irrigator with turntable 360°equipped with:

Galvanized frame and painted reel
Mechanical parts painted with RAL 5017
Flanged turbine on the gearbox, speed control and compensator
Gearbox single speed on ‘G1.1’, 3 speeds on models G1 and G2, with automatic drive disengagement, device for rewinding through PTO and rewinding out of the drum
Leadscrew hose layering device
3 wheels sprinkler trolley with adjustable track
Mechanical trolley lift and staker leg operations
Drawbar with connection adjustable in height (except on models G1.1 and G1), mechanical jack and lateral staker legs
Sectoring sprinkler with set of nozzles
Supply hose 4 mt. with female ball joint on line side
Water inlet from turbine side
Instructions and maintenance handbook
Guarantee coupon

The G1 model is designed for medium-sized surfaces, featuring a 4-speed gearbox that provides precise control over the rewinding speed. Its compact design makes transportation and field placement easy, while the durable structure ensures reliability and long-lasting performance, even in demanding conditions.

Serie	Codice	Diametro tubo	Lunghezza tubo	Irrigatore
G1	63 G 250	mm 63	mt 250	Ambo / 163
G1	63 G 280	mm 63	mt 280	Hidra
G1	63 G 300	mm 63	mt 300	Hidra
G1	63 G 320	mm 63	mt 320	Hidra
G1	70 G 120	mm 70	mt 210	Royal / Twin 101
G1	75 G 200	mm 75	mt 200	Royal / Twin 101
G1	75 G 250	mm 75	mt 250	Royal / Twin 101
