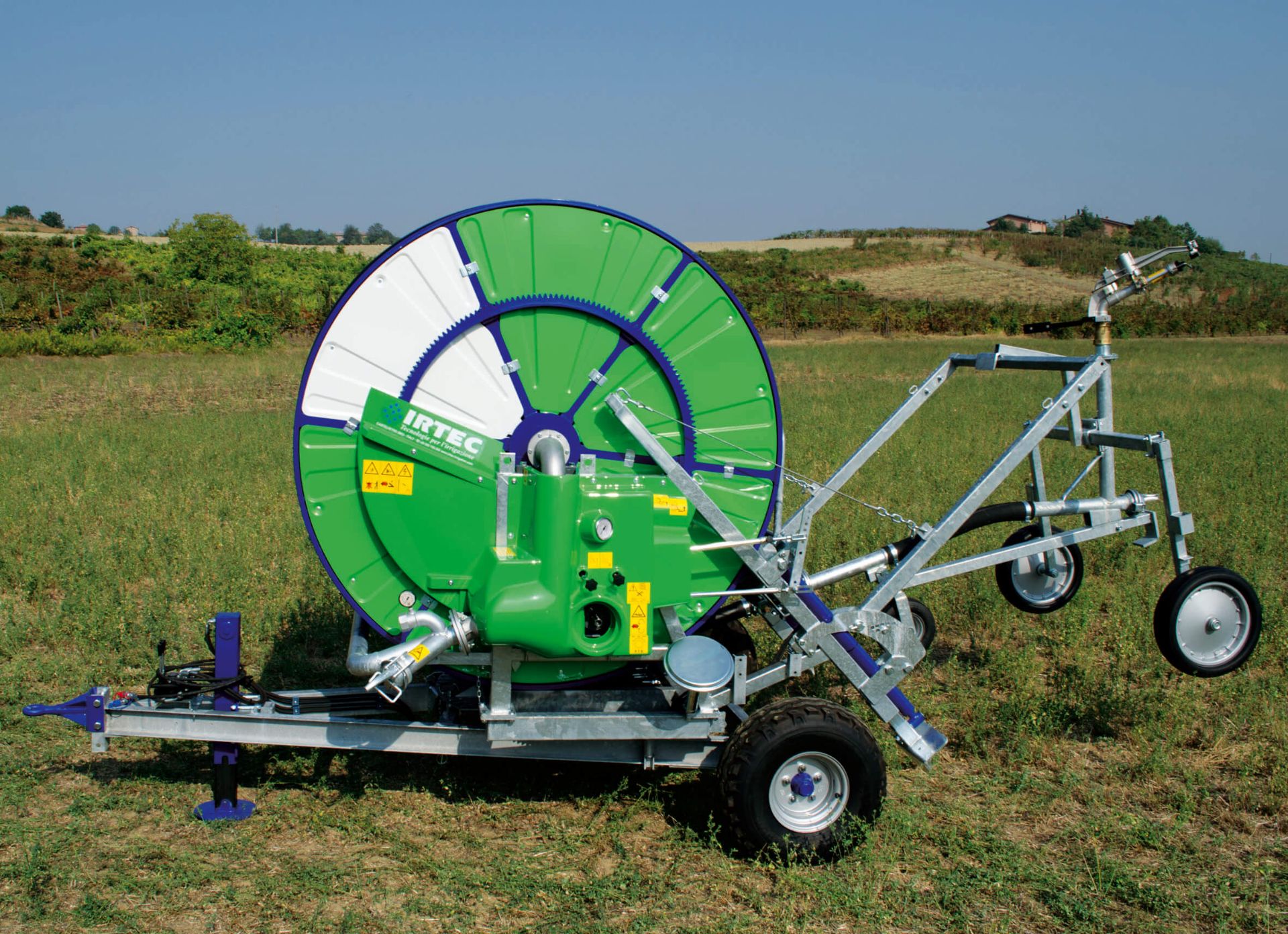

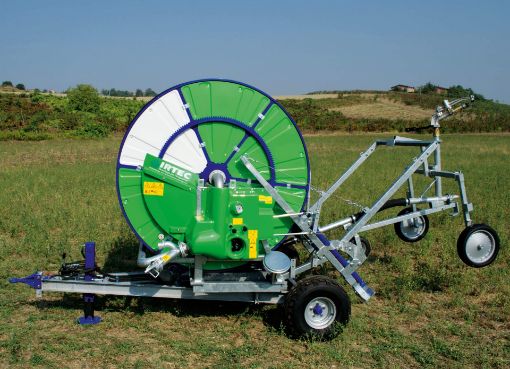

G/B2

Mechanical lifting device of trolley
Telescopic mechanical feet
3 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
TL4 raingun trolley with 3 large solid wheels up to hose Ø 82
TL4 raingun trolley with 5 large solid wheels for hose Ø 90
TL3 raingun trolley with 5 large solid wheels for hose Ø 100
Raingun
Set of nozzles ROYAL raingun from Ø 16 to Ø 22
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Safety guards
2 wheels mod. 205/60 R15 5F
Hot galvanized chassis and turret
Reel coated by epoxy resin and painted with polyurethane paint
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

		1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.	8 cm.
		325	265	235	225	195	193	199	255
	G/B2 Ø 90 - 250 mt.	325	270	240	230	195	193	199	255

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
70	350	ROYAL	16/18/20	10	70G_B2350.pdf
75	300	ROYAL	16/18/20	8	75G_B2300.pdf
75	330	ROYAL	16/18/20	10	75G_B2330.pdf
82	270	ROYAL	18/20/22	7	82G_B2270.pdf
82	300	ROYAL	18/20/22	9	82G_B2300.pdf
90	220	REFLEX	24/26/28	1	90G_B2220.pdf
90	250	REFLEX	24/26/28	7	90G_B2250.pdf
100	170	REFLEX	26/28/30	4	100G_B2170.pdf
