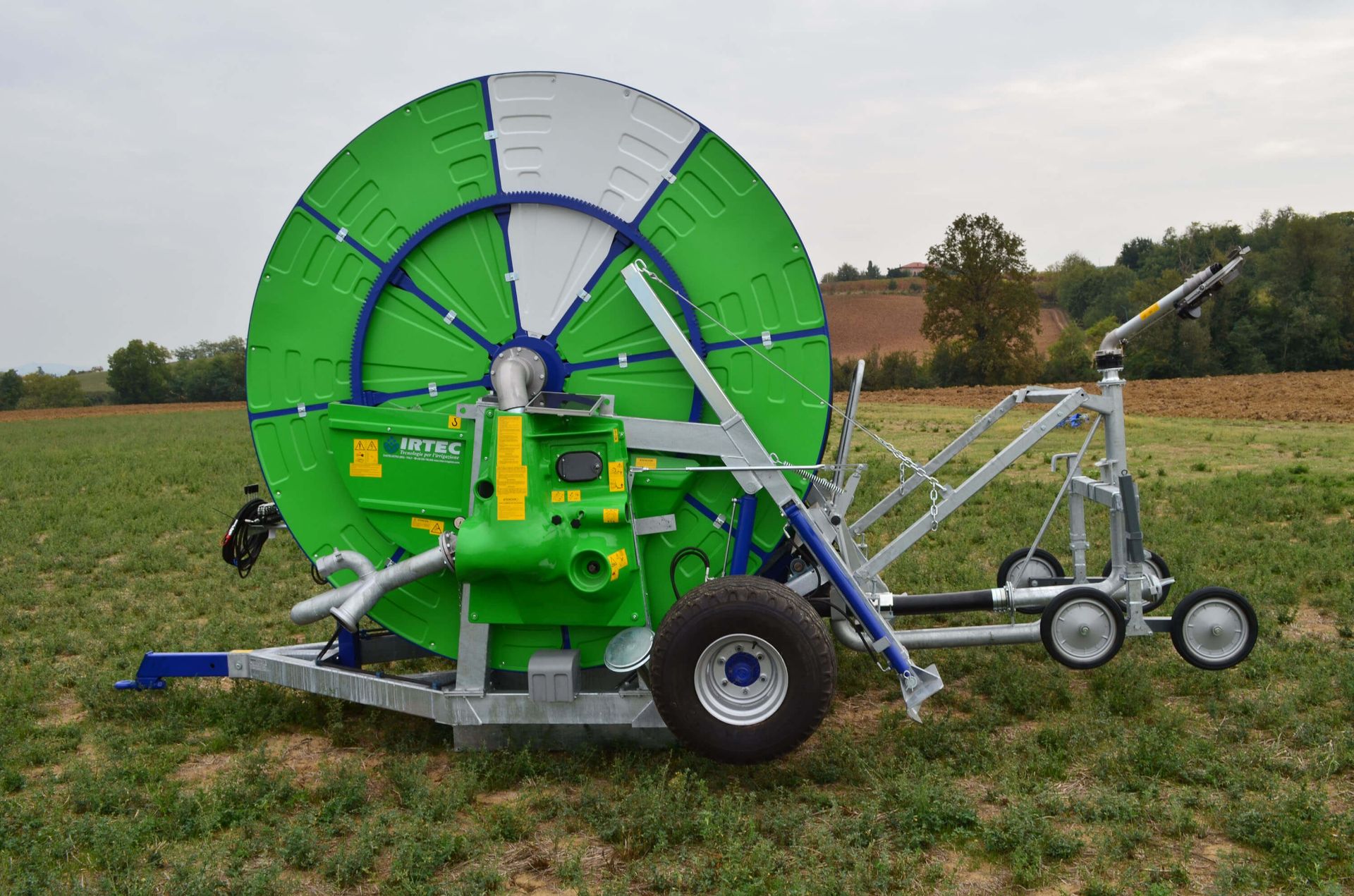

GI/ES

Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Hydraulic lifting of drawbar
Telescopic hydraulic feet
4 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun . Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards . 2 wheels 11.5/80-15.3 12PR 6F
Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.
400	356	330	303	240	285	280

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	400	REFLEX	26/28/30	7	110GI_ES400.pdf
110	420	REFLEX	26/28/30	8	110GI_ES420.pdf
110	450	REFLEX	26/28/30	10	110GI_ES450.pdf
120	380	EXPLORER	30/32/34	9	120GI_ES380.pdf
125	300	EXPLORER	32/34/36	6	125GI_ES300.pdf
125	350	EXPLORER	32/34/36	8	125GI_ES350.pdf
125	370	EXPLORER	32/34/36	9	125GI_ES370.pdf
