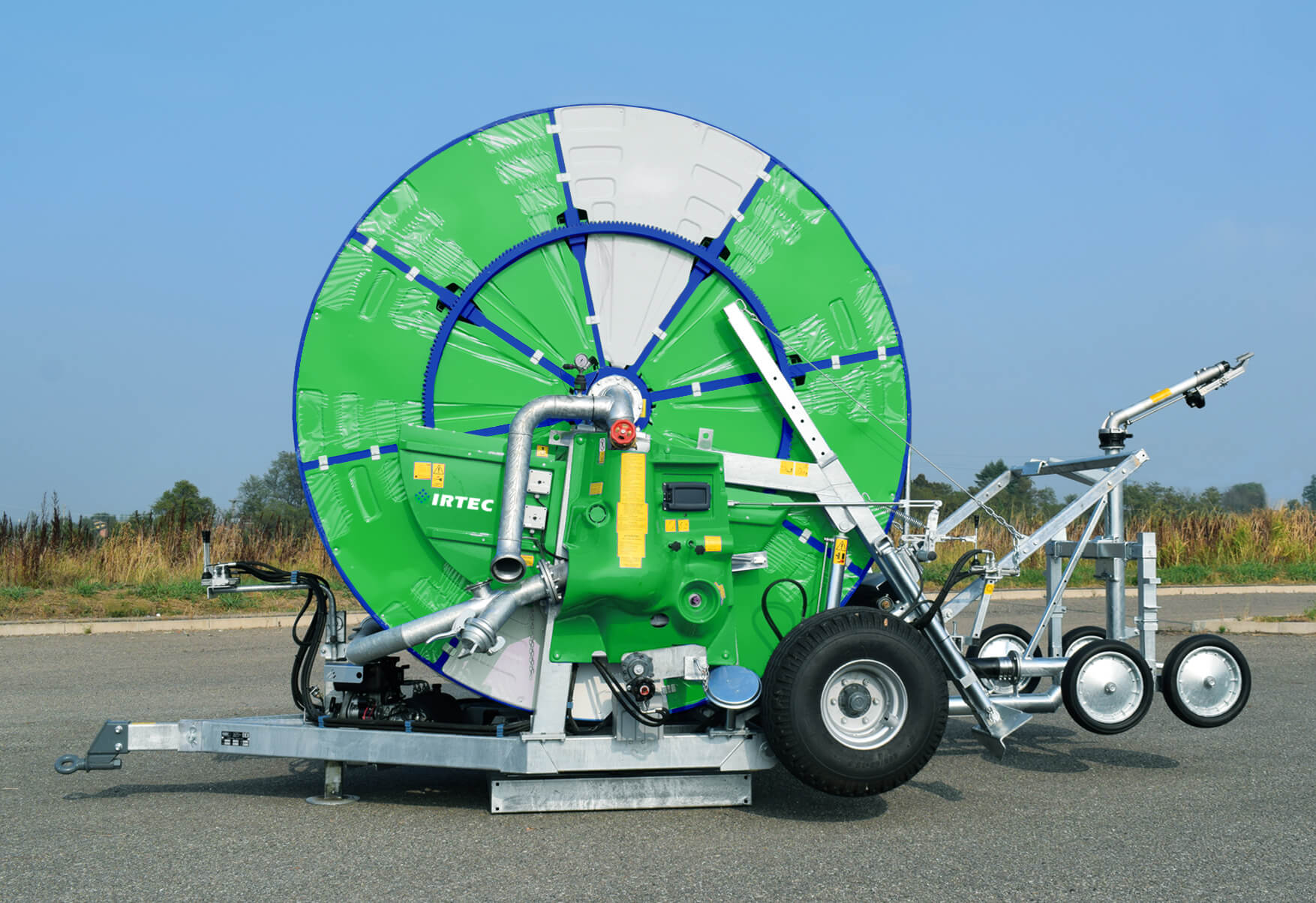

GI/ESR

Hydraulic rotation and hydraulic lifting of drawbar
Telescopic hydraulic feet
4 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards
2 wheels 400/60-15.5 16 PR 6F
Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
Reinforced reel with 16 lateral supports
Reinforced stabilizer legs
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.
400	359	333	306	240	285	286

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	510	REFLEX	26/28/30	6	110GI_ESR510.pdf
110	540	REFLEX	26/28/30	7	110GI_ESR540.pdf
110	580	REFLEX	26/28/30	9	110GI_ESR580.pdf
120	380	EXPLORER	30/32/34	5	120GI_ESR380.pdf
120	420	EXPLORER	32/34/36	3	120GI_ESR420.pdf
120	450	EXPLORER	32/34/36	2	120GI_ESR450.pdf
125	370	EXPLORER	32/34/36	5	125GI_ESR370.pdf
125	390	EXPLORER	32/34/36	4	125GI_ESR390.pdf
125	430	EXPLORER	32/34/36	2	125GI_ESR430.pdf
