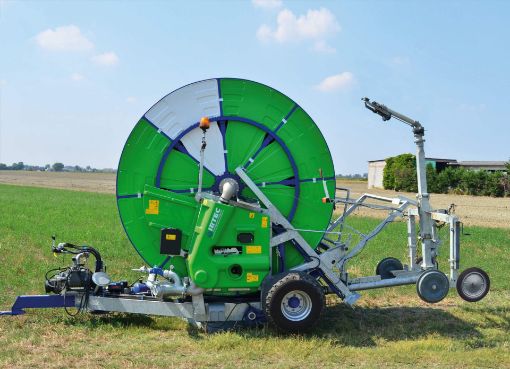

GI/F8

Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Hydraulic lifting of drawbar
Telescopic hydraulic feet
4 synchronised speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Speed equalizer .
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards
2 wheels 12.5/80-15.3 14PR 6F
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 100-110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140-150 water inlet Bauer Ø 133
Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
Polyethylene hose made by unadulterated raw material

1 cm.	2 cm.	3 cm.	4 cm.	5 cm.	6 cm.	7 cm.
410	395	362	341	249	282	309

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
100	650	REFLEX	26/28/30	1	100GI_F8650.pdf
110	600	REFLEX	24/26/28	1	110GI_F8600.pdf
120	540	EXPLORER	30/32/34	1	120GI_F8540.pdf
125	450	EXPLORER	32/34/36	4	125GI_F8450.pdf
125	500	EXPLORER	32/34/36	2	125GI_F8500.pdf
135	400	EXPLORER	34/36/38	10	135GI_F8400.pdf
140	380	EXPLORER	36/38/40	10	140GI_F8380.pdf
150	300	EXPLORER	36/38/40	1	150GI_F8300.pdf
