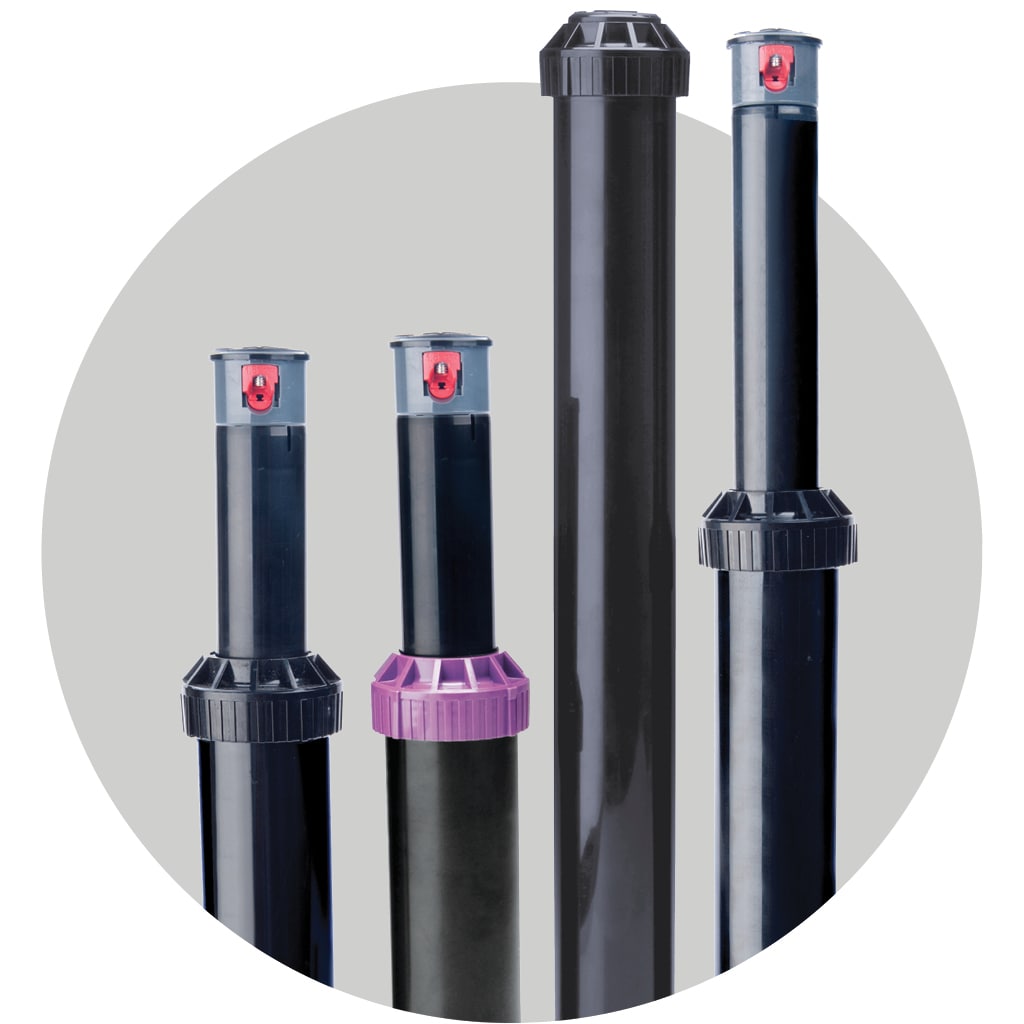

MiniPro

The name says it all: Pro performance and pro features on a smaller scale. That’s why MiniPro® is the professional’s choice for small lawn and landscape areas.

With a ½” inlet, the MiniPro is a gear-driven, rotary sprinkler that can replace all standard mini rotors and fixed zone pop-up sprays.  In terms of specifications, the sprinkler can cover a radius of 18' to 33' with a nozzle pressure of 20 to 70 PSI and a flow range of .8 to 3.8 GPM. And the MiniPro has a stainless-steel radius adjustment screw and a nozzle trajectory of 25°.

The MiniPro has an arc adjustment of 40° to 360°. Adjusting that pattern is easy because of the top arc set degree indications and the spray direction arrow located on the sprinkler head.  Simply insert a flat blade screwdriver into the arc adjustment slot and adjust as desired. The sprinkler can be adjusted wet or dry -- before installation and after installation with the water on or off.

When considering the MiniPro gear-driven rotor for your next small lawn or landscape project, think water efficiency and flexibility. Available in 4”, 6” and 12” heights, it is also available in a reclaimed water model (RCW) and comes with five (5) numerically coded interchangeable nozzles.

FEATURES AND BENEFITS
•Patented Top Arc Set – Simplified arc set allows for wet or dry adjustment in seconds
•1/2" Inlet – Replaces all standard mini rotors and pop-up sprays
•Adjustable to 360° – Provides a full range of adjustment from 40° to 360°
•Patented Top Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment
•Time Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 35-year history
•Ratcheting Riser – Allows for easy adjustment of your left starting position with a simple turn of the riser
•Rubber Cover – Seals out dirt and increases product durability
•Optional Check Valve – Prevents low head
