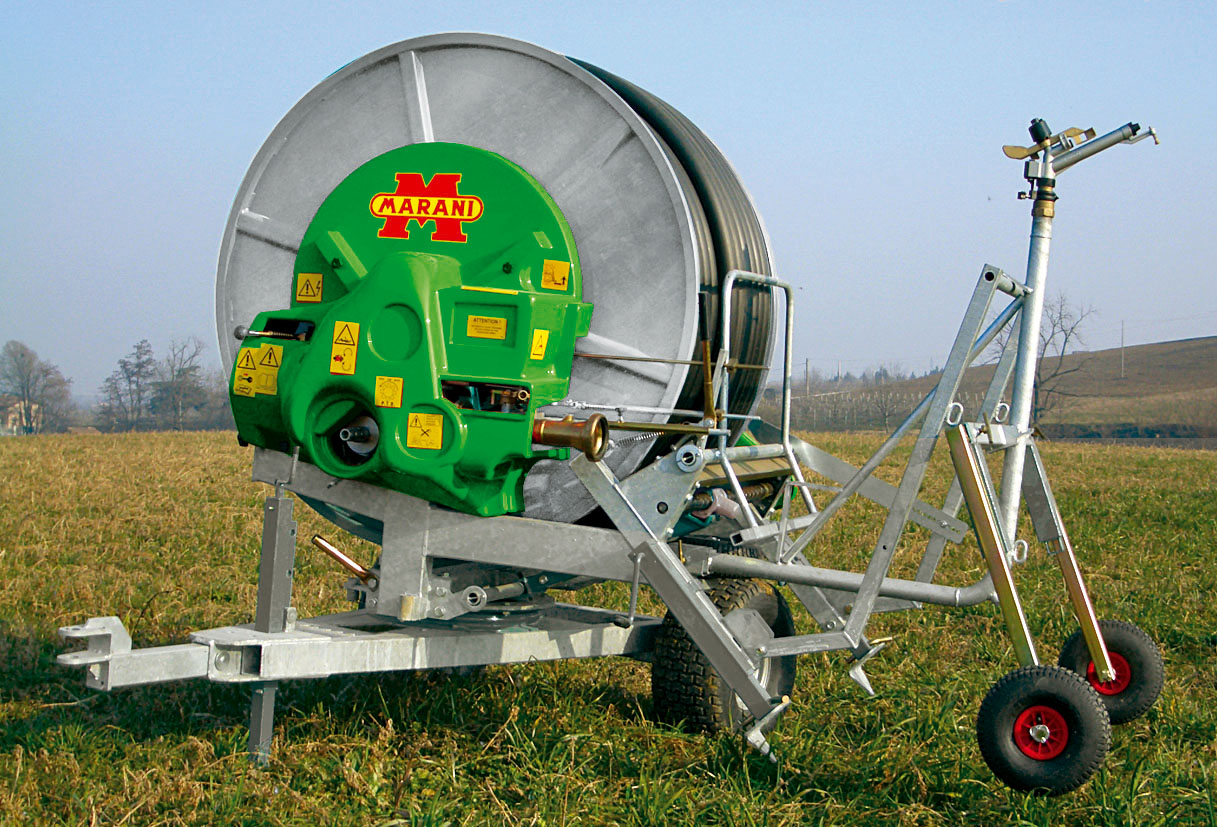

GT015B

Automatic lifting device of trolley Mechanical hold-down Gearbox Power take off
Turbine flanged on the gearbox with external by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles HYDRA raingun from Ø 12 to Ø 16
Pressure gauge (glycerine bath)
Winding handle
Safety guards
2 wheels mod. 20x10.0x8" 2PR 4F
Hot galvanized chassis and turret
Hot galvanized reel
Polyethylene hose made by unadulterated raw material

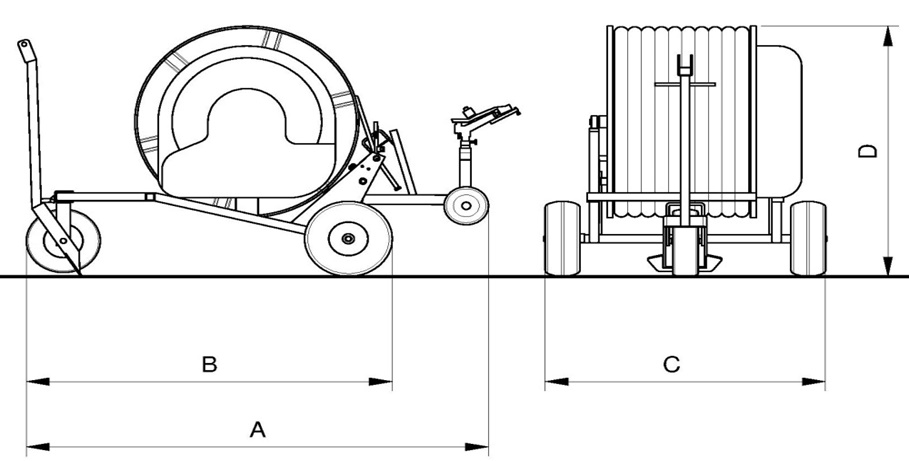

A cm.	B cm.	C cm.	D cm.
330	250	130	192

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
50	230	HYDRA	10/12/14	C	50MRR230.pdf
58	200	HYDRA	12/14/16	C	58MRR200.pdf
63	150	HYDRA	14/16/18	I	63MRR150.pdf
