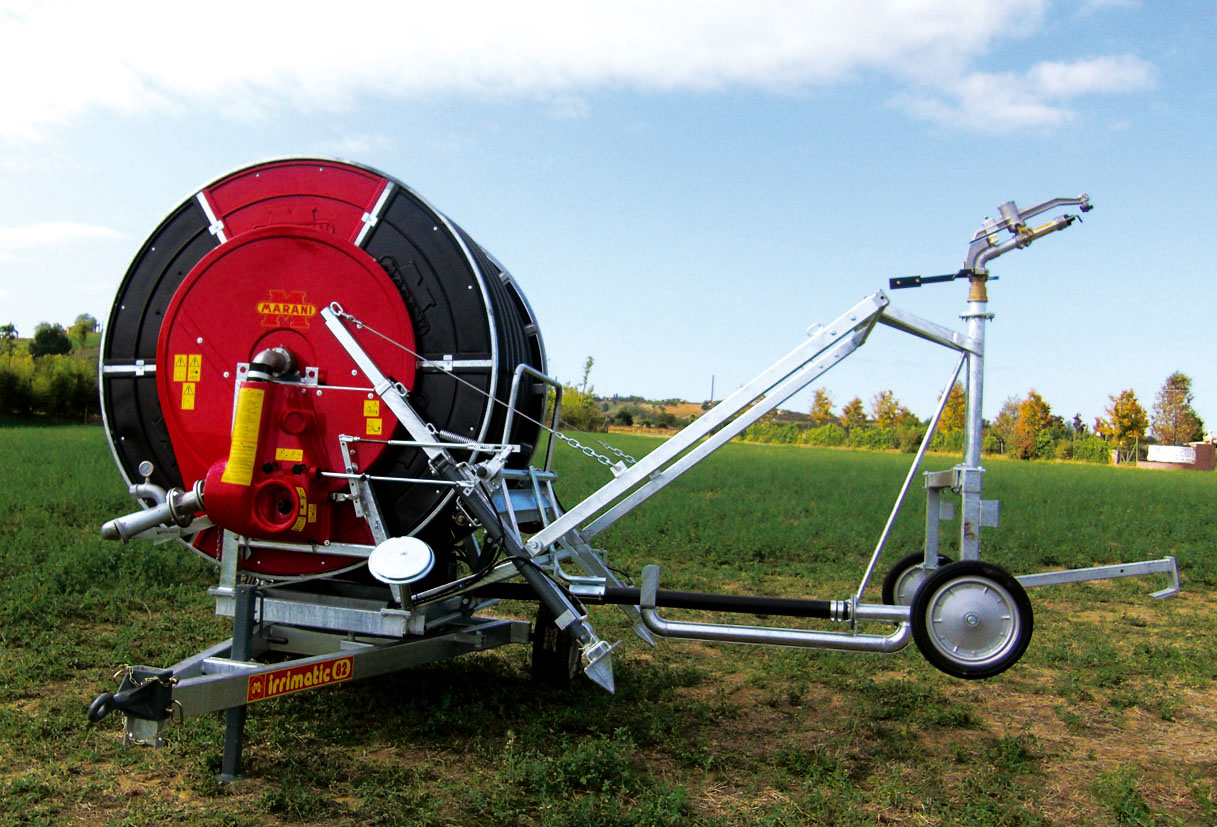

GT026B

Mechanical lifting device of trolley
Telescopic mechanical feet
3 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles ROYAL raingun from Ø 16 to Ø 22
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Safety guards
2 wheels mod. 205/60 R15 5F
Hot galvanized chassis and turret
Hot galvanized reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

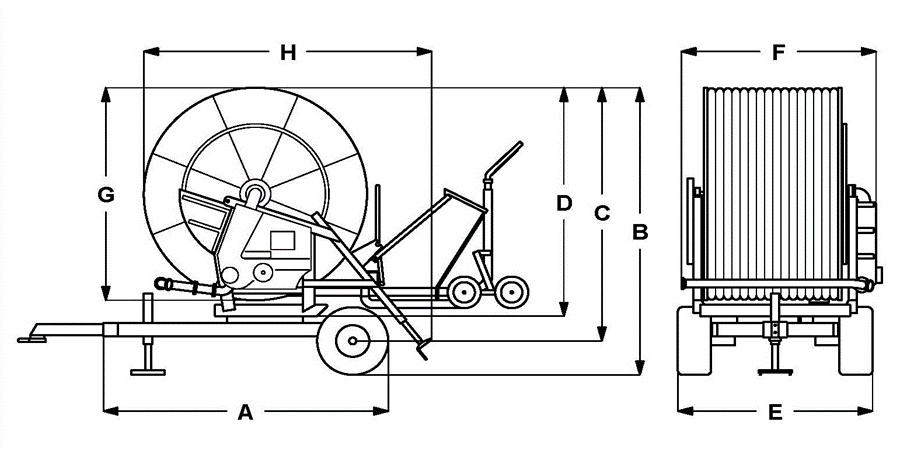

	A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
	325	265	235	225	195	193	199	255
R2A Ø 90 - 250 mt.	325	270	240	230	195	193	199	255

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
70	350	ROYAL	16/18/20	J	70R2A350.pdf
75	300	ROYAL	16/18/20	H	75R2A300.pdf
75	330	ROYAL	16/18/20	J	75R2A330.pdf
82	270	ROYAL	18/20/22	G	82R2A270.pdf
82	300	ROYAL	18/20/22	I	82R2A300.pdf
90	220	REFLEX	24/26/28	A	90R2A220.pdf
90	250	REFLEX	24/26/28	G	90R2A250.pdf
100	170	REFLEX	26/28/30	D	100R2A170.pdf
