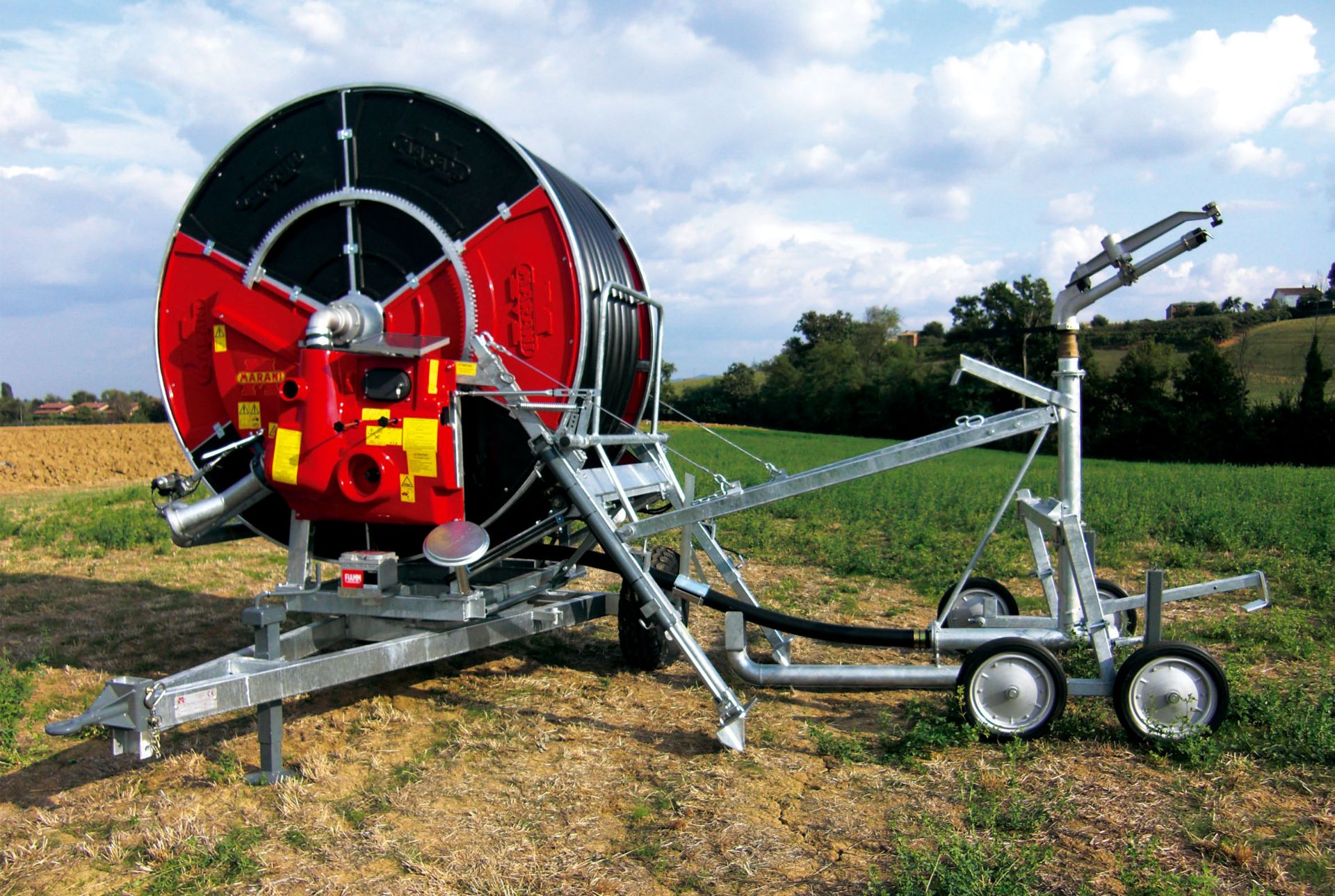

GT040B

Hydraulic lifting device of trolley
Telescopic hydraulic feet
6 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles ROYAL raingun from Ø 16 to Ø 22
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Safety guards
2 wheels mod. 10.0/75-15.3 10PR 6F
Hot galvanized chassis and turret
Hot galvanized reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 82-90-100 water inlet Bauer Ø 89
For hose diam. 110 - 120 water inlet Bauer Ø 108
Polyethylene hose made by unadulterated raw material

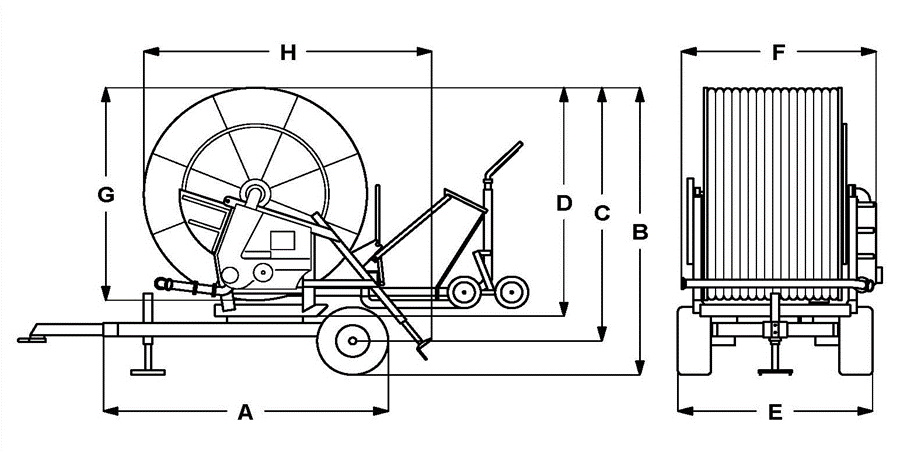

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
340	314	286	260	210	225	246	295

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
82	500	ROYAL	16/18/20	C	82R3A500.pdf
90	370	REFLEX	24/26/28	H	90R3A370.pdf
90	400	REFLEX	24/26/28	J	90R3A400.pdf
100	300	REFLEX	26/28/30	F	100R3A300.pdf
100	330	REFLEX	26/28/30	H	100R3A330.pdf
100	350	REFLEX	26/28/30	I	100R3A350.pdf
110	250	REFLEX	28/30/32	B	110R3A250.pdf
120	230	REFLEX	28/30/32	B	120R3A230.pdf
