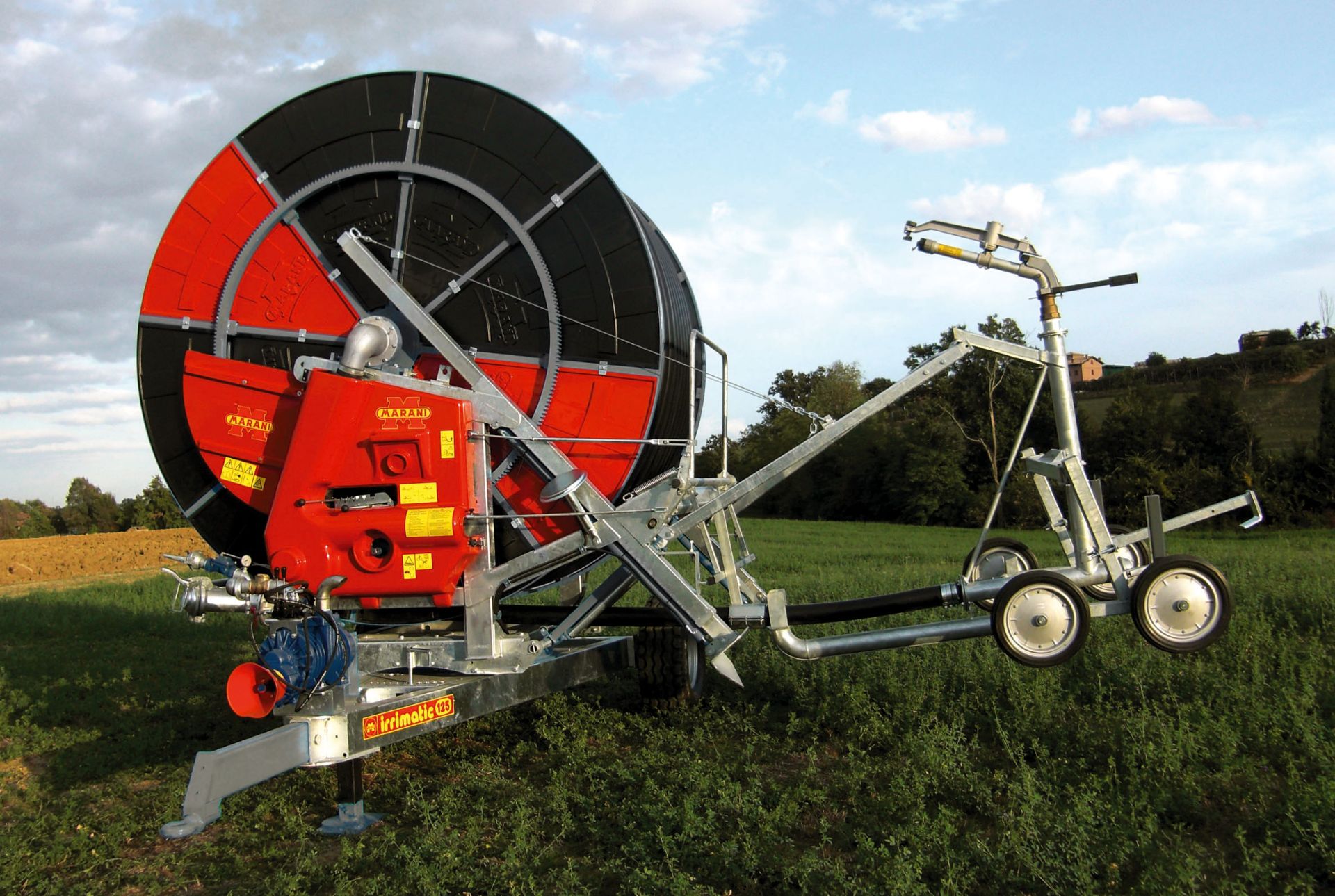

GTS080B

Hydraulic lifting device of trolley
Telescopic hydraulic feet
4 synchronized speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Winding handle
Speed equalizer
Tachometer
Pressure gauge (glycerine bath)
Mechanical lifting of drawbar
Safety guards
2 wheels mod. 12.5/80-15.3 14PR 6F
Hot galvanized chassis and turret
Hot galvanized reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 100-110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140 water inlet Bauer Ø 133
Polyethylene hose made by unadulterated raw material

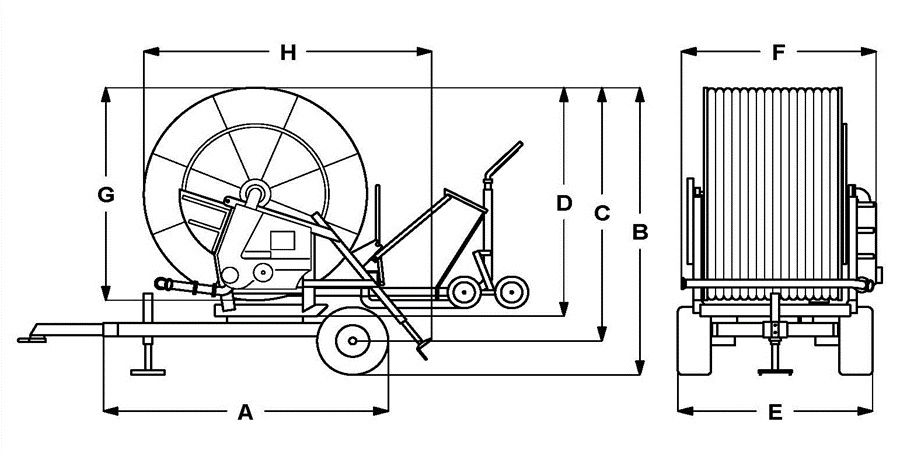

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
364	400	358	340	235	243	309	350

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
100	650	REFLEX	26/28/30	A	100VR7650.pdf
110	550	REFLEX	24/26/28	C	110VR7550.pdf
110	600	REFLEX	24/26/28	A	110VR7600.pdf
120	540	EXPLORER	30/32/34	A	120VR7540.pdf
125	450	EXPLORER	32/34/36	D	125VR7450.pdf
125	500	EXPLORER	32/34/36	B	125VR7500.pdf
135	400	EXPLORER	34/36/38	J	135VR7400.pdf
140	380	EXPLORER	36/38/40	J	140VR7380.pdf
