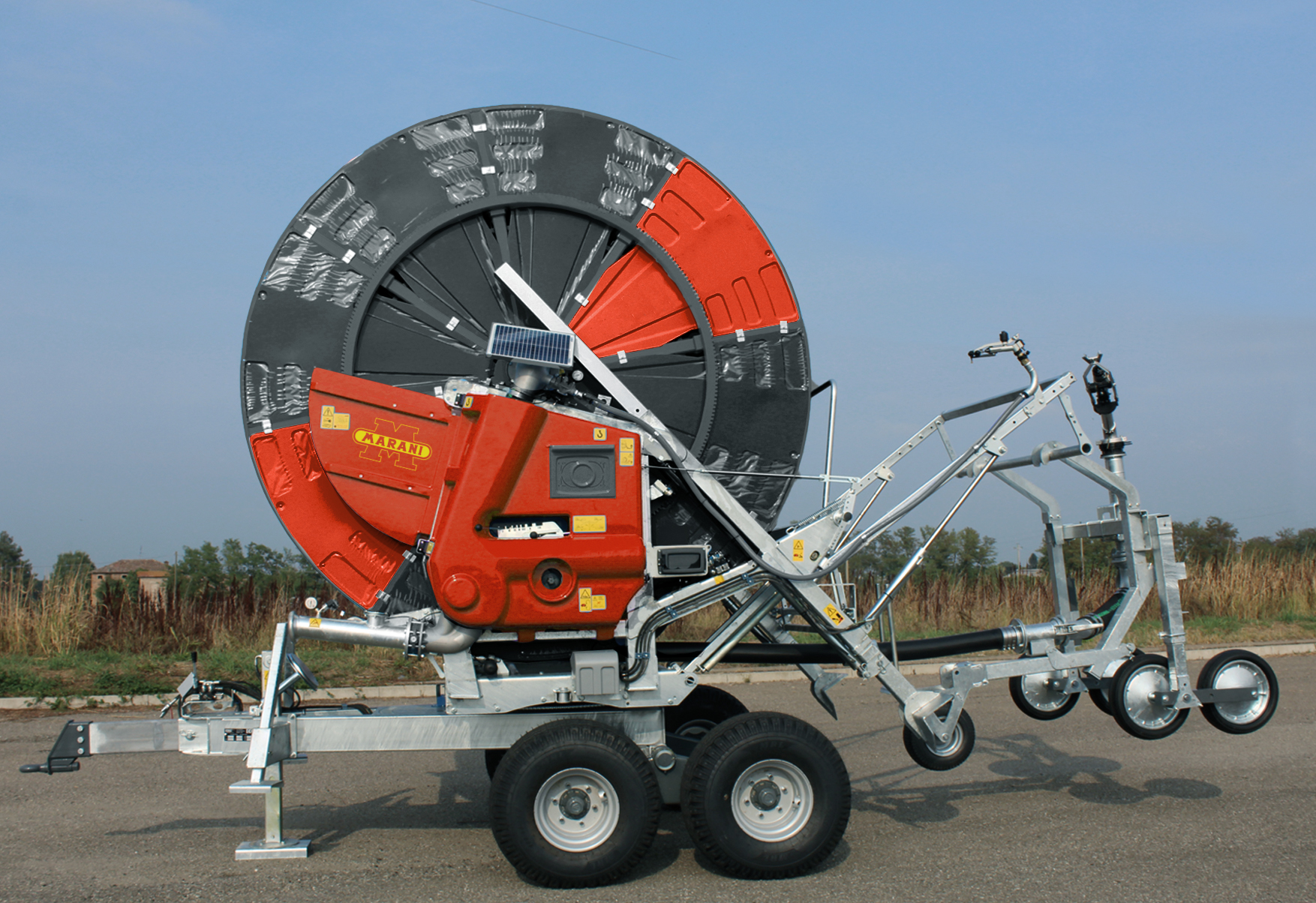

GTS080R

Hydraulic rotation and hydraulic lifting of drawbar
Independent hydraulic lift with swivel to hook the gun trolley
Telescopic hydraulic feet
4 synchronized speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Winding handle
Speed equalizer
Tachometer
Pressure gauge (glycerine bath)
Hydraulic lifting of drawbar
Safety guards
2 wheels mod. 19.0/45-17 22 PR
Stabilizers on drawbar
Hot galvanized chassis and turret
Hot galvanized reel
Reinforced reel with 16 lateral supports
Lateral reel’s support
Reinforced stabilizer legs
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140 water inlet Bauer Ø 133
Polyethylene hose made by unadulterated raw material

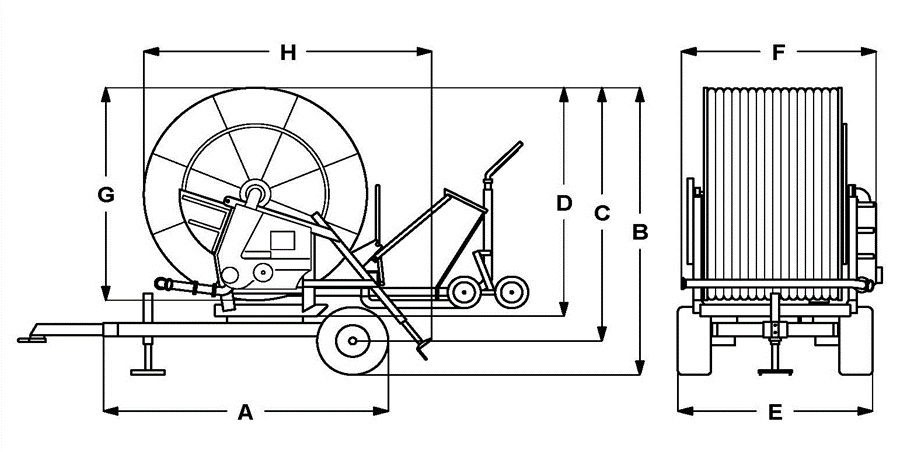

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
364	400	358	340	235	243	309	350

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	620	REFLEX	24/26/28	I	110VR7R620.pdf
110	670	REFLEX	24/26/28	E	110VR7R670.pdf
120	550	EXPLORER	30/32/34	F	120VR7R550.pdf
120	580	EXPLORER	30/32/34	H	120VR7R580.pdf
120	620	EXPLORER	30/32/34	J	120VR7R620.pdf
125	500	EXPLORER	32/34/36	F	125VR7R500.pdf
125	530	EXPLORER	32/34/36	H	125VR7R530.pdf
125	570	EXPLORER	32/34/36	J	125VR7R570.pdf
