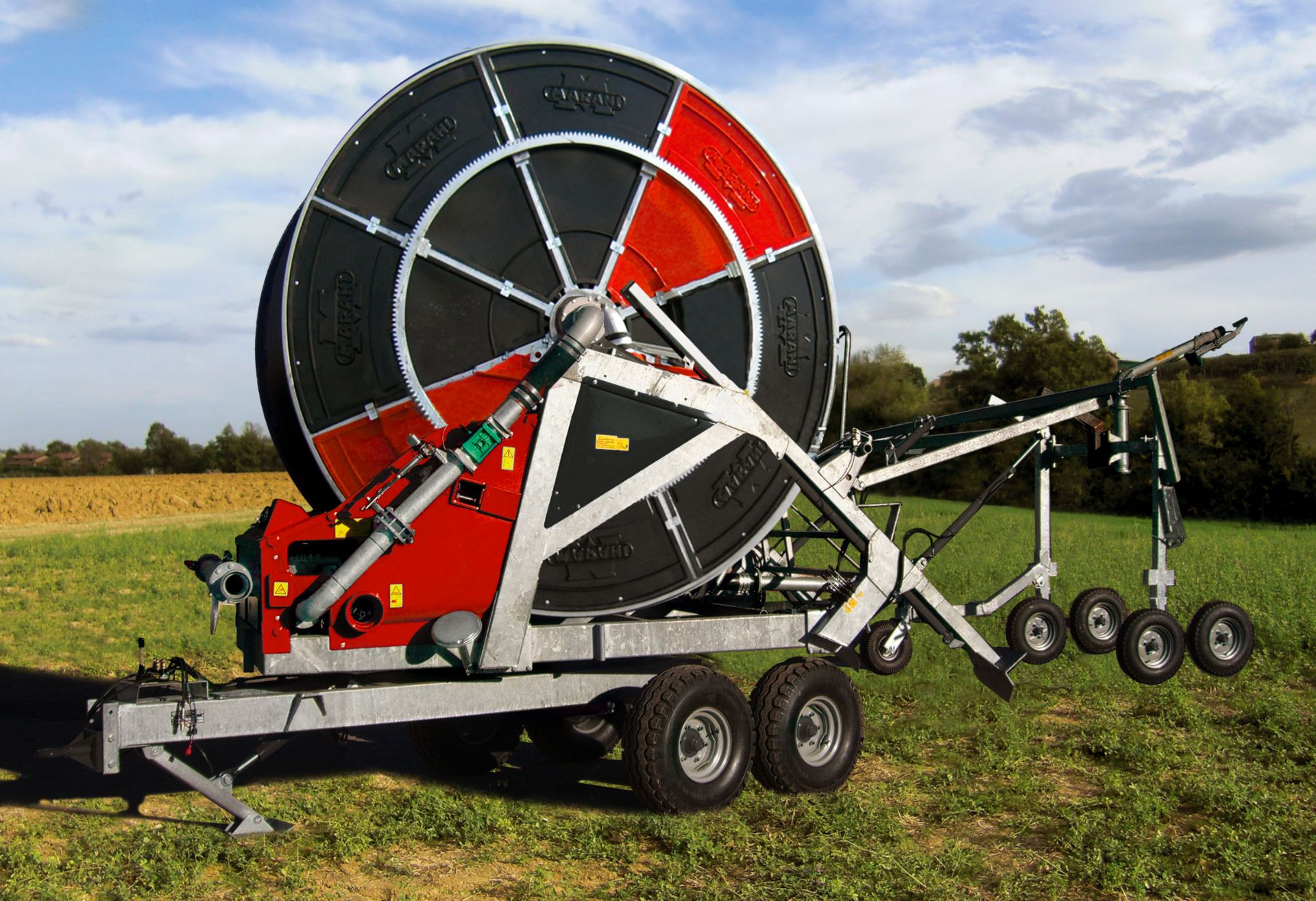

GTS090B

Telescopic hydraulic feet
Hydraulic lifting of drawbar
Turbine flanged on the gearbox with double built-in by-pass
Flexible connection pipe
Offset galvanized trolley mounted on 5 large solid wheels
4 wheel chassis
Hydraulic lifting device of trolley
Independent hydraulic lift with swivel to hook the gun trolley
Hydraulic rotation of turntable
4 synchronized speed gearbox
Power take off
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Computer Aqua System
Hose retraction by double chain
Hydraulic system by rapid couplings to tractor
Safety guards
4 wheels mod. 11.5/80-15.3 12PR 6F
Hot galvanized chassis and turret
Hot galvanized reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140 water inlet Bauer Ø 133
Polyethylene hose made by unadulterated raw material

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.	I cm.	L cm.	M cm.	N cm.
66	439	396	373	413	425	318	445	220 - 250	249	344	250 - 280

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	650	REFLEX	24/26/28	G	110VR8A650.pdf
110	670	REFLEX	24/26/28	G	110VR8A670.pdf
110	700	REFLEX	24/26/28	I	110VR8A700.pdf
110	730	REFLEX	24/26/28	J	110VR8A730.pdf
120	600	EXPLORER	28/30/32	H	120VR8A600.pdf
120	640	EXPLORER	26/28/30	J	120VR8A640.pdf
125	550	EXPLORER	32/34/36	G	125VR8A550.pdf
125	600	EXPLORER	28/30/32	I	125VR8A600.pdf
125	620	EXPLORER	28/30/32	J	125VR8A620.pdf
135	500	EXPLORER	32/34/36	B	135VR8A500.pdf
140	400	EXPLORER	34/36/38	E	140VR8A400.pdf
140	450	EXPLORER	34/36/38	C	140VR8A450.pdf
140	470	EXPLORER	34/36/38	B	140VR8A470.pdf
