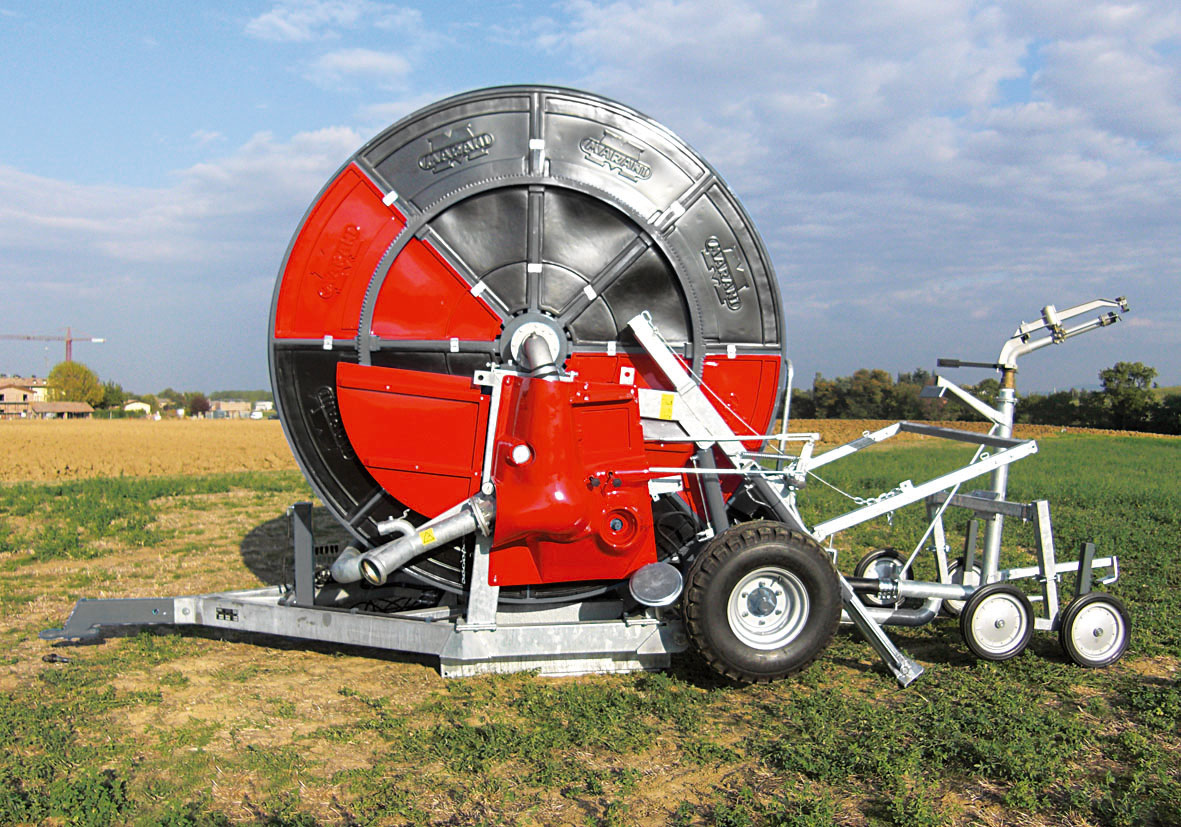

IT050B

Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Hydraulic lifting of drawbar
Telescopic hydraulic feet
4 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards
2 wheels 10.0/75-15.3 10PR 6F
Hot galvanized chassis and reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

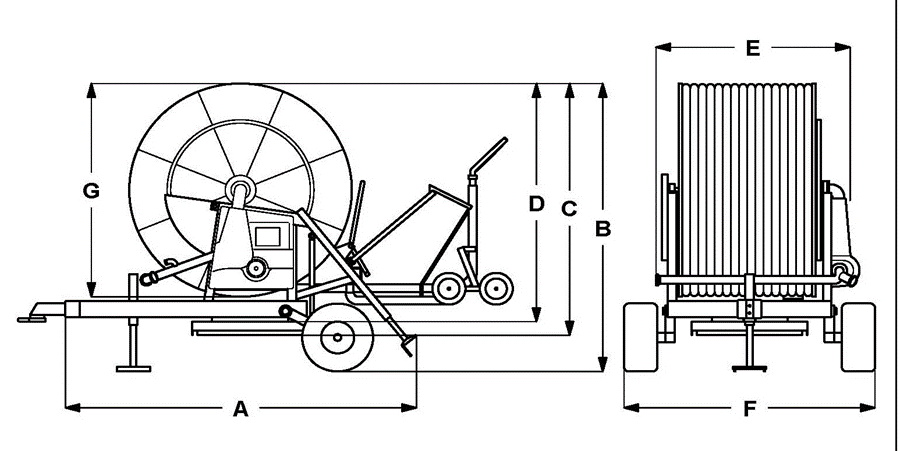

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.
338	338	310	290	220	255	268

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
90	500	REFLEX	24/26/28	C	90IR2A500.pdf
100	400	REFLEX	24/26/28	J	100IR2A400.pdf
100	450	REFLEX	24/26/28	A	100IR2A450.pdf
100	500	REFLEX	24/26/28	H	100IR2A500.pdf
110	300	REFLEX	28/30/32	F	110IR2A300.pdf
110	330	REFLEX	28/30/32	G	110IR2A330.pdf
110	350	REFLEX	26/28/30	H	110IR2A350.pdf
125	250	EXPLORER	32/34/36	A	125IR2A250.pdf
