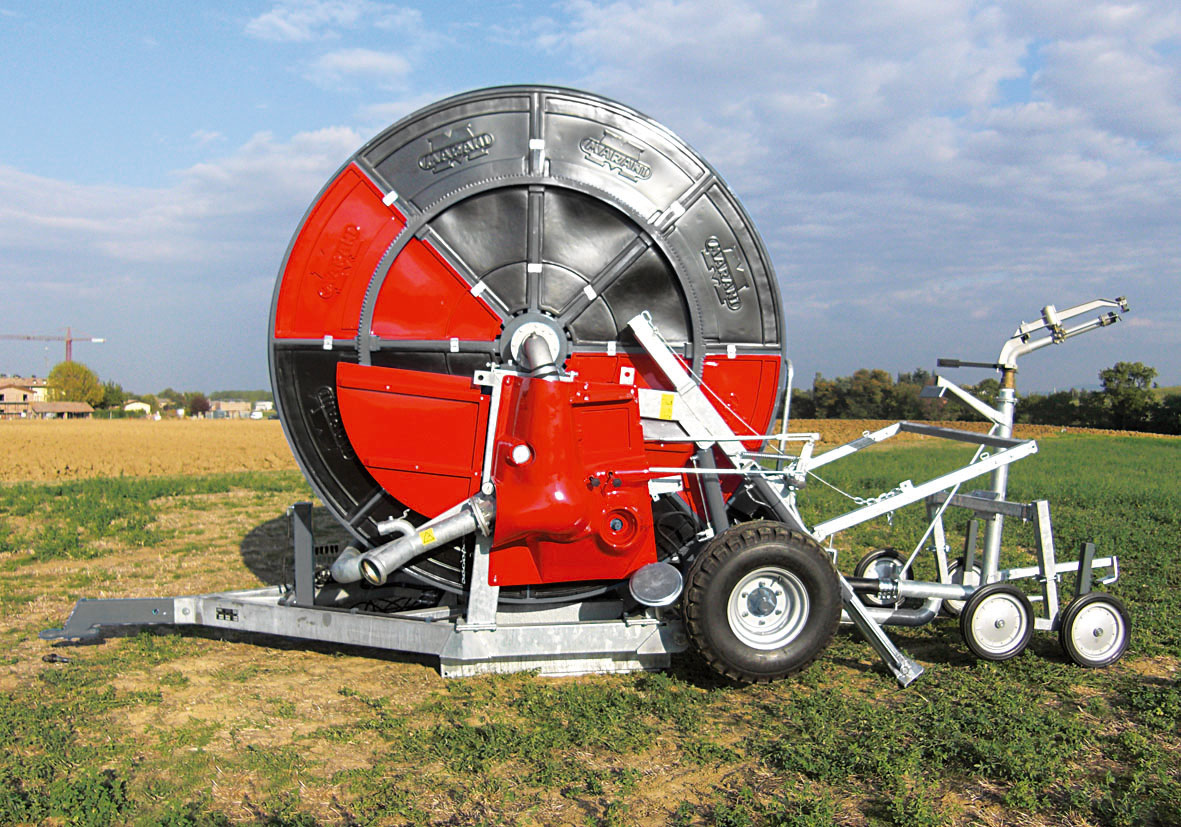

IT070B

Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Hydraulic lifting of drawbar
Telescopic hydraulic feet
4 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards
2 wheels 11.5/80-15.3 12PR 6F
Hot galvanized chassis and reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made by unadulterated raw material

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.
400	383	355	330	240	288	309

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
100	550	REFLEX	24/26/28	D	100IR2_2A550.pdf
100	600	REFLEX	24/26/28	B	100IR2_2A600.pdf
110	500	REFLEX	26/28/30	D	110IR2_2A500.pdf
110	530	REFLEX	26/28/30	C	110IR2_2A530.pdf
110	550	REFLEX	24/26/28	B	110IR2_2A550.pdf
120	440	EXPLORER	30/32/34	J	120IR2_2A440.pdf
125	400	EXPLORER	32/34/36	H	125IR2_2A400.pdf
125	420	EXPLORER	32/34/36	I	125IR2_2A420.pdf
135	350	EXPLORER	34/36/38	H	135IR2_2A350.pdf
135	370	EXPLORER	34/36/38	I	135IR2_2A370.pdf
140	300	EXPLORER	36/38/40	F	140IR2_2A300.pdf
140	350	EXPLORER	36/38/40	I	140IR2_2A350.pdf
