Marani ITS080B Hydraulic Drive Hard Hose Irrigator

Overview

The Marani ITS080B is a heavy-duty hydraulic drive hard hose irrigator engineered by Marani Irrigazione, one of Italy's most respected manufacturers of agricultural irrigation machinery. Designed specifically for plots of significant scale, the ITS080B delivers high-volume water distribution across large agricultural areas while maintaining a clear focus on operator ease and long-term cost efficiency. Powered entirely by a tractor's hydraulic and power take-off systems, this machine eliminates the need for separate engines, reducing both operational complexity and maintenance overhead for the end user.

What sets the ITS080B apart within the Marani hard hose irrigator range is its comprehensive hydraulic actuation system, which controls virtually every major mechanical function — from trolley lifting and turntable rotation to drawbar positioning and stabilising feet — allowing a single operator to position, deploy, and retrieve the machine with minimal physical effort. The unit accommodates polyethylene hose diameters from 100 mm to 150 mm (3.94 in to 5.91 in) and is available with either the REFLEX or EXPLORER raingun depending on the configuration, making it adaptable to a wide range of flow rates, pressures, and field geometries. A four-speed synchronised gearbox provides precise winding speed control, ensuring uniform water application across each irrigation pass.

Key Features & Benefits

Fully Hydraulic Operation: Hydraulic lifting of the trolley, rotation of the turntable, lifting of the drawbar, and telescopic stabilising feet are all hydraulically actuated via rapid couplings to the tractor, enabling one-person setup and retrieval across large fields without manual strain.
4-Speed Synchronised Gearbox with PTO Drive: The four-speed gearbox, driven by the tractor's power take-off, allows operators to fine-tune hose winding speed to match flow rate and desired application depth, delivering consistent and agronomically accurate water distribution.
Turbine with Built-In By-Pass: The turbine is flanged directly onto the gearbox and incorporates an integral by-pass valve, providing reliable hydraulic power generation from the water flow while protecting the system against pressure fluctuations.
REFLEX and EXPLORER Raingun Compatibility: Smaller configurations are supplied with the REFLEX raingun (nozzles Ø24–Ø32), while larger hose diameters pair with the EXPLORER raingun (nozzles Ø28–Ø40), ensuring optimal throw radius and distribution uniformity across the full range of available configurations.
Hot-Galvanised Chassis and Reel: The main chassis and reel receive a hot-dip galvanising treatment, providing superior corrosion resistance suited to continuous outdoor and agricultural use in demanding environments.
Galvanised Raingun Trolley on Variable-Track Wheels: The raingun trolley is galvanised for longevity and rides on variable-track wheels, allowing adjustment to suit different crop row spacings and uneven terrain conditions.
Polyethylene Hose from Unadulterated Raw Material: The PE hose is manufactured exclusively from virgin, unadulterated raw material, ensuring consistent wall thickness, pressure resistance, and service life throughout the hose's operational lifespan.
Speed Equaliser and Tachometer: The inclusion of a speed equaliser and tachometer gives the operator real-time feedback and precise control over winding uniformity, supporting accurate application rate management across the full length of the hose.
Dual Water Inlet with Bauer Coupling Standard: The galvanised double water inlet accommodates both Bauer Ø108 (for hose diameters 100–125 mm) and Bauer Ø133 (for hose diameters 135–150 mm), simplifying connection to existing farm water infrastructure.
Steel Safety Guards — Swaged, Galvanised, and Painted: All safety guards are fabricated from steel, swaged for strength, then galvanised and painted, combining regulatory compliance with long-term structural integrity.

Technical Specifications

Specification	Detail
Manufacturer	Marani Irrigazione
Model	ITS080B
Product Type	Hydraulic Drive Hard Hose Irrigator
Drive System	Hydraulic (tractor PTO and hydraulic circuit via rapid couplings)
Gearbox	4-speed synchronised gearbox with turbine flanged on gearbox and built-in by-pass
Hose Diameter Range	100–150 mm (3.94–5.91 in)
Hose Length Range	300–650 m (984–2,133 ft)
Raingun Options	REFLEX (nozzles Ø24–Ø32 mm) / EXPLORER (nozzles Ø28–Ø40 mm)
Wheels	2 × 12.5/80-15.3 14PR 6F
Water Inlet	Galvanised double water inlet; Bauer Ø108 (hose Ø100–125 mm) / Bauer Ø133 (hose Ø135–150 mm)
Chassis & Reel Treatment	Hot-dip galvanised
Safety Guards	Steel, swaged, galvanised and painted
Hose Material	Polyethylene — unadulterated virgin raw material
Country of Manufacture	Italy

Available Hose Configurations

Hose Diameter	Hose Length	Raingun	Nozzle Sizes	Performance Data
100 mm (3.94 in)	650 m (2,133 ft)	REFLEX	Ø26 / Ø28 / Ø30	100VIR7650.pdf
110 mm (4.33 in)	600 m (1,969 ft)	REFLEX	Ø24 / Ø26 / Ø28	110VIR7600.pdf
120 mm (4.72 in)	540 m (1,772 ft)	EXPLORER	Ø30 / Ø32 / Ø34	120VIR7540.pdf
125 mm (4.92 in)	450 m (1,476 ft)	EXPLORER	Ø32 / Ø34 / Ø36	125VIR7450.pdf
125 mm (4.92 in)	500 m (1,640 ft)	EXPLORER	Ø32 / Ø34 / Ø36	125VIR7500.pdf
135 mm (5.31 in)	400 m (1,312 ft)	EXPLORER	Ø34 / Ø36 / Ø38	135VIR7400.pdf
140 mm (5.51 in)	380 m (1,247 ft)	EXPLORER	Ø36 / Ø38 / Ø40	140VIR7380.pdf
150 mm (5.91 in)	300 m (984 ft)	EXPLORER	Ø36 / Ø38 / Ø40	150VIR7300.pdf

Machine Dimensions

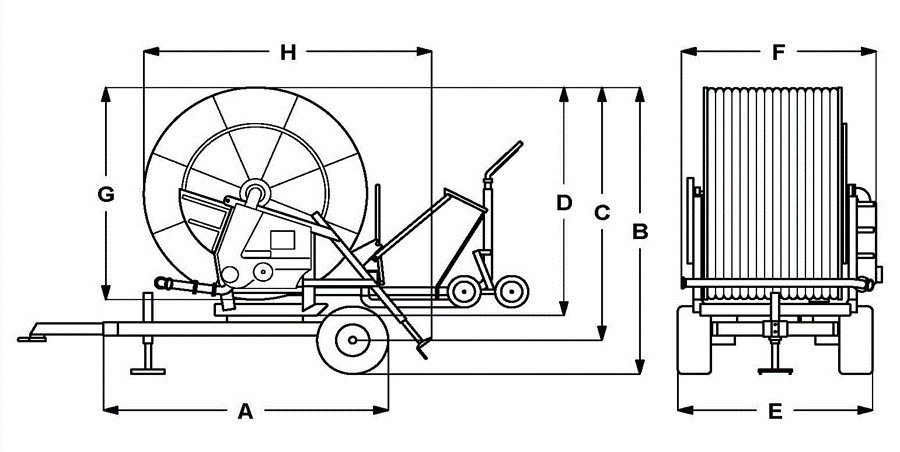

ITS080B Dimensions

Diagram shows dimension reference points (A, B, C, etc.) on the machine.

A	B	C	D	E	F	G
410 cm (161.4 in)	395 cm (155.5 in)	362 cm (142.5 in)	341 cm (134.3 in)	249 cm (98.0 in)	282 cm (111.0 in)	309 cm (121.7 in)

Ideal Applications

Large Arable Crop Irrigation: The ITS080B's extended hose lengths — up to 650 m (2,133 ft) — and high-output rainguns make it well suited to irrigating cereals, maize, sunflower, and other row crops grown across broad field blocks.
Fodder and Pasture Irrigation: The wide throw radius of the EXPLORER raingun and variable nozzle selection support uniform coverage across open grassland and fodder crop areas, supporting consistent forage yields.
Vegetable and Horticultural Production: For larger-scale vegetable enterprises, the adjustable winding speed and precise application rate control provided by the 4-speed gearbox allow operators to tailor water delivery to crop sensitivity and growth stage.
Sugar Beet and Root Crop Fields: Where soil moisture management is critical to tuber and root development, the ITS080B's consistent travel speed and uniform distribution pattern support optimal crop development with minimal waterlogging risk.
Farms with High Water Volume Availability: With hose diameters up to 150 mm (5.91 in) and compatible Bauer Ø133 inlet connections, the machine is designed to handle high-flow irrigation schemes supplied by reservoirs, boreholes, or large pump sets.
Multi-Field Rotation Irrigation Programmes: The fully hydraulic setup and retrieval system, combined with tractor PTO drive, makes the ITS080B practical for farms operating irrigation on a rotational basis across multiple fields, minimising inter-field movement time.

Your name *

Your email *

Subject: *

Enquiry *

Irrigation Unit Conversions

Convert a given value and unit to different unit type. Conversions are available for flow rate, area, distance, time, volume, pressure, power, precipitation, salinity, and speed.

Click here to see unit descriptions.

Flow Rate:
		to

Area:
		to

Distance:
		to

Time:
		to

Volume:
		to

Pressure:
		to

Power:
		to

Precipitation (Water Application) Rate:
		to

Salinity:
		to

Speed:
		to

Reference: Washington State University

Feature Title	Feature	Benefit
Full Hydraulic Operation	Hydraulic systems control trolley lifting, turntable rotation, drawbar lifting, and telescopic feet — all powered directly from the tractor hydraulics via rapid couplings.	Every major machine adjustment can be made from the tractor seat without manual effort, dramatically reducing setup time and operator fatigue across long irrigation runs.
4-Speed Synchronized Gearbox	A four-stage synchronized speed gearbox paired with a power take-off controls hose winding speed across a wide range of operating conditions.	Precise speed selection allows operators to fine-tune water application rates to match different crops, soil types, and field lengths — avoiding over- or under-watering.
Turbine Drive System	A water-powered turbine is flanged directly onto the gearbox with a built-in by-pass valve to regulate flow.	The machine drives itself using irrigation water pressure alone — no separate engine or electrical supply is required, keeping operating costs low and reliability high in remote locations.
Dual Nozzle Set Compatibility	The ITS080B is supplied with two complete nozzle sets — REFLEX raingun nozzles from Ø24 to Ø32 and EXPLORER raingun nozzles from Ø28 to Ø40.	A wide combined nozzle range gives operators the flexibility to adapt throw diameter and flow rate to varying crop types, field sizes, and water supply conditions without purchasing additional equipment.
Multi-Diameter Hose Inlet	A galvanized double water inlet is provided in two configurations — Bauer Ø108 for hose diameters 100–125 mm and Bauer Ø133 for hose diameters 135–150 mm.	Built-in compatibility across a broad range of hose sizes means the machine integrates seamlessly with existing irrigation infrastructure without adapters or additional fittings.
Hot-Galvanized Chassis & Reel	The main chassis and hose reel are constructed from hot-dip galvanized steel, with safety guards additionally swaged, galvanized, and painted.	Multi-layer corrosion protection ensures the structural components withstand years of outdoor exposure, chemical contact, and wet field conditions with minimal maintenance.
Virgin Polyethylene Hose	The lay-flat or hard hose is manufactured from unadulterated virgin polyethylene raw material with no recycled content.	Pure-grade PE material delivers consistent wall thickness, superior pressure resistance, and a longer service life compared to hoses made with recycled compounds.
Variable Track Raingun Trolley	A hot-dip galvanized raingun trolley is mounted on variable track wheels fitted with 12.5/80-15.3 14PR 6F tyres.	Adjustable wheel track width allows the trolley to travel cleanly between different crop row spacings without causing wheel damage to the crop, improving field versatility.
Speed Equalizer & Tachometer	An integrated speed equalizer and tachometer monitor and maintain consistent hose retrieval speed throughout the winding cycle.	Uniform travel speed ensures even water distribution across the entire field length, eliminating dry strips or waterlogged zones caused by speed fluctuations.
Glycerine Pressure Gauge	A glycerine-dampened pressure gauge is fitted to monitor operating water pressure in real time.	Glycerine damping stabilizes the needle against pressure fluctuations, giving the operator an accurate, easy-to-read pressure reading that helps prevent damage from over-pressure events.


Feature Title

Feature

Benefit

Full Hydraulic Operation

Hydraulic systems control trolley lifting, turntable rotation, drawbar lifting, and telescopic feet — all powered directly from the tractor hydraulics via rapid couplings.

Every major machine adjustment can be made from the tractor seat without manual effort, dramatically reducing setup time and operator fatigue across long irrigation runs.

4-Speed Synchronized Gearbox

A four-stage synchronized speed gearbox paired with a power take-off controls hose winding speed across a wide range of operating conditions.

Precise speed selection allows operators to fine-tune water application rates to match different crops, soil types, and field lengths — avoiding over- or under-watering.

Turbine Drive System

A water-powered turbine is flanged directly onto the gearbox with a built-in by-pass valve to regulate flow.

The machine drives itself using irrigation water pressure alone — no separate engine or electrical supply is required, keeping operating costs low and reliability high in remote locations.

Dual Nozzle Set Compatibility

The ITS080B is supplied with two complete nozzle sets — REFLEX raingun nozzles from Ø24 to Ø32 and EXPLORER raingun nozzles from Ø28 to Ø40.

A wide combined nozzle range gives operators the flexibility to adapt throw diameter and flow rate to varying crop types, field sizes, and water supply conditions without purchasing additional equipment.

Multi-Diameter Hose Inlet

A galvanized double water inlet is provided in two configurations — Bauer Ø108 for hose diameters 100–125 mm and Bauer Ø133 for hose diameters 135–150 mm.

Built-in compatibility across a broad range of hose sizes means the machine integrates seamlessly with existing irrigation infrastructure without adapters or additional fittings.

Hot-Galvanized Chassis & Reel

The main chassis and hose reel are constructed from hot-dip galvanized steel, with safety guards additionally swaged, galvanized, and painted.

Multi-layer corrosion protection ensures the structural components withstand years of outdoor exposure, chemical contact, and wet field conditions with minimal maintenance.

Virgin Polyethylene Hose

The lay-flat or hard hose is manufactured from unadulterated virgin polyethylene raw material with no recycled content.

Pure-grade PE material delivers consistent wall thickness, superior pressure resistance, and a longer service life compared to hoses made with recycled compounds.

Variable Track Raingun Trolley

A hot-dip galvanized raingun trolley is mounted on variable track wheels fitted with 12.5/80-15.3 14PR 6F tyres.

Adjustable wheel track width allows the trolley to travel cleanly between different crop row spacings without causing wheel damage to the crop, improving field versatility.

Speed Equalizer & Tachometer

An integrated speed equalizer and tachometer monitor and maintain consistent hose retrieval speed throughout the winding cycle.

Uniform travel speed ensures even water distribution across the entire field length, eliminating dry strips or waterlogged zones caused by speed fluctuations.

Glycerine Pressure Gauge

A glycerine-dampened pressure gauge is fitted to monitor operating water pressure in real time.

Glycerine damping stabilizes the needle against pressure fluctuations, giving the operator an accurate, easy-to-read pressure reading that helps prevent damage from over-pressure events.
