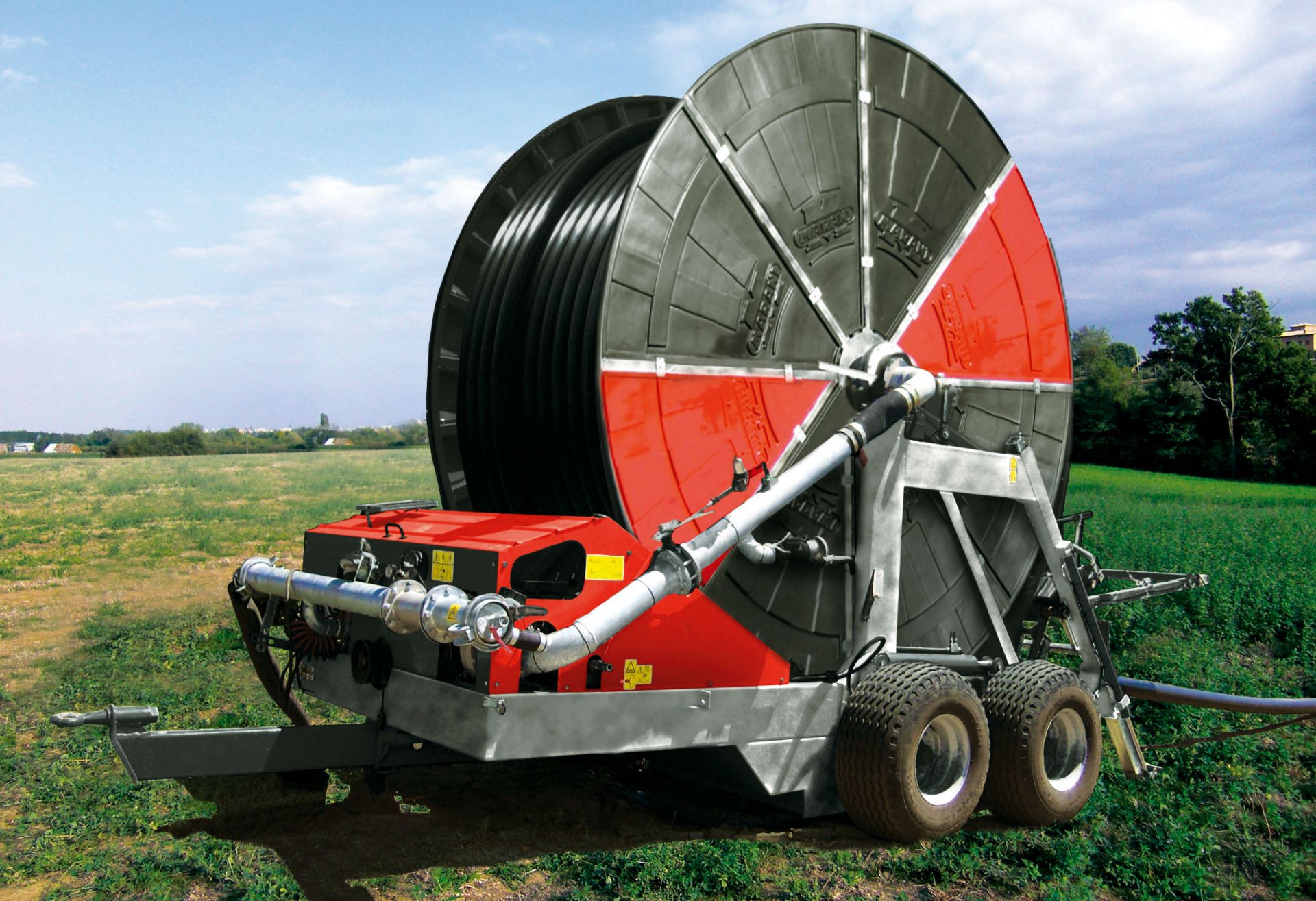

ITS100AM

4 wheel chassis
Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Telescopic hydraulic feet
Hydraulic lifting of drawbar
Power take off
4 synchronized speed gearbox
Turbine flanged on the gearbox with double built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Pressure gauge (glycerine bath)
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Set of nozzles LANCER raingun from Ø 30 to Ø 40
Winding handle
Computer Aqua System
Hose retraction by double chain
Hydraulic system by rapid couplings to tractor
Safety guards
4 wheels 15.0/70-18 148A8 14PR 6F
Hot galvanized chassis and reel
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Water inlet with Bauer 133
Polyethylene hose made by unadulterated raw material

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
500	427	402	375	255	312	345	740

HOSE DIAMETER	HOSE LENGHT	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
110	800	REFLEX	26/28/30	A	110VIR9AM800.pdf
110	850	REFLEX	26/28/30	C	110VIR9AM850.pdf
125	680	EXPLORER	28/30/32	F	125VIR9AM680.pdf
125	790	EXPLORER	28/30/32	H	125VIR9AM790.pdf
135	550	EXPLORER	34/36/38	E	135VIR9AM550.pdf
135	600	EXPLORER	34/36/38	G	135VIR9AM600.pdf
140	530	EXPLORER	34/36/38	D	140VIR9AM530.pdf
150	450	EXPLORER	36/38/40	C	150VIR9AM450.pdf
150	480	EXPLORER	36/38/40	E	150VIR9AM480.pdf
160	350	LANCER	38/40/42	H	160VIR9AM350.pdf
160	380	LANCER	38/40/42	F	160VIR9AM380.pdf
