Ocmis Linear

Overview

The Ocmis Linear is a self-propelled linear move irrigation system engineered by OCMIS Irrigazione S.p.A., Italy's premier manufacturer of precision irrigation equipment. This advanced linear pivot features a central motor drive configuration with a self-moving boom specifically designed to maximize irrigation efficiency on rectangular and irregularly shaped fields. The system can draw water from either a flexible hose supply or an irrigation channel, providing exceptional operational flexibility for diverse farming environments and water infrastructure scenarios.

What distinguishes the Linear from conventional pivot systems is its unique linear travel pattern combined with a central motor positioning that delivers superior weight distribution and structural stability during operation. This Italian-engineered irrigation machine represents decades of OCMIS innovation in mechanized irrigation technology, offering farmers a reliable solution for uniform water application across large rectangular parcels where traditional center pivots would leave significant areas unirrigated. The Linear's self-propelled boom design eliminates the need for complex external power sources while maintaining precise water distribution throughout the field.

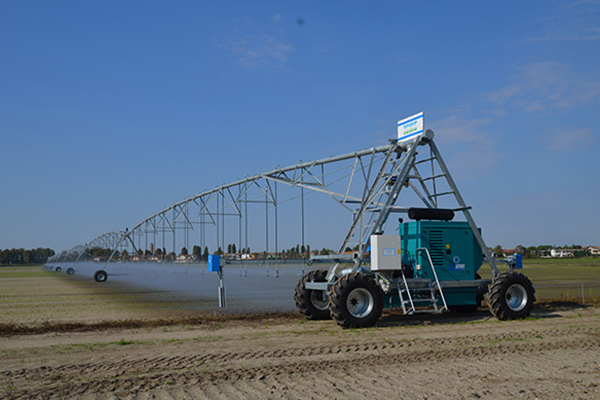

Ocmis Linear Pivot

Key Features & Benefits

Central Motor Configuration: Provides balanced power distribution along the boom structure, reducing stress points and extending equipment lifespan while ensuring consistent travel speed across varying terrain conditions.
Self-Moving Boom Design: Eliminates reliance on external towing equipment or manual repositioning, significantly reducing labor requirements and allowing for automated irrigation scheduling with minimal operator intervention.
Dual Water Supply Compatibility: Accommodates both hose-fed and channel-fed water delivery systems, enabling farmers to adapt the irrigation system to existing infrastructure without costly modifications or water supply redesign.
Rectangular Field Optimization: Purpose-built linear travel pattern maximizes irrigated area on rectangular parcels, eliminating the corner waste inherent in circular pivot systems and increasing total productive acreage.
Italian Engineering Quality: Manufactured by OCMIS Irrigazione S.p.A. in Italy with precision components and corrosion-resistant materials that withstand demanding agricultural environments and deliver decades of reliable field performance.
Scalable System Architecture: Modular design allows for customization of boom length, hose diameter, and raingun configurations to match specific field dimensions, crop water requirements, and available water pressure conditions.

Technical Specifications

Specification	Details
Manufacturer	OCMIS Irrigazione S.p.A.
Model	Linear
Product Type	Linear Pivot Irrigation System
Drive System	Self-propelled with central motor
Water Supply Options	Flexible hose feed or irrigation channel
Travel Pattern	Linear (straight-line movement)
Boom Configuration	Self-moving boom structure
Country of Manufacture	Italy

Ideal Applications

Rectangular Field Irrigation: Maximizes water coverage on rectangular parcels where traditional center pivots would leave significant corner areas unirrigated, improving overall field utilization and crop uniformity.
Row Crop Production: Ideal for irrigating corn, soybeans, wheat, and other row crops planted in straight-line patterns, allowing the linear travel to follow planting rows without damaging plant canopy.
Vegetable Farming Operations: Provides consistent water application for commercial vegetable production requiring precise moisture management throughout rectangular growing blocks or greenhouse supplement irrigation.
Pasture and Forage Management: Efficiently irrigates rectangular pasture sections and forage crop fields, supporting intensive grazing operations and hay production with programmable watering schedules.
Challenging Terrain Configurations: Accommodates irregularly shaped properties, fields bordered by roads or structures, and parcels where circular pivot swing would conflict with boundary constraints or adjacent land uses.
Channel-Based Irrigation Districts: Integrates seamlessly with existing irrigation channel infrastructure in agricultural districts, drawing water directly from concrete or earthen channels without requiring pressurized pipeline installation.

Control Panel Options

Key Features	EM	Hybrid 4	Hybrid 7
Select percent rate	X	X	X
Select depth (mm)		X	X
Stop or start forward or reverse	X	X	X
Water On/Off	X	X	X
Programmable end gun / Accessory	X	X	X
Programmable Stop in Slot		X	X
Pressure Auto restart			X
Programmable inversion		X	X
Temporization before restart			X
Pressure shutdown limits	X	X	X
Voltage shutdown limits		X	X
Display		4.3” - 8 buttons	7” - 12 buttons
Graphical representation		X	X
Pressure reading		X	X
Priority speed / application rate		X	X
Time to end		X	X
Scheduler			X
Sectors		1	12
System backup & logs		X	X
Communication / Web portal Digital Irrigation 4.0			X

Base Specifications by System Type

Specification	PIVOT BASE			LINEAR			HIPPODROME
Specification	OC133	OC168	OC203	OC168	OC203	OC168	OC203
Height low profile	4.13 m	4.13 m	4.13 m	4.43 m	4.43 m	4.96 m	4.96 m
Height high profile	4.85 m	4.85 m	4.85 m	-	-	-	-
Base dimension	3.00 m x 3.00 m 3.57 m x 3.57 m	3.00 m x 3.00 m 3.57 m x 3.57 m	3.00 m x 3.00 m 3.57 m x 3.57 m	5.70 m x 2.27 m	5.70 m x 2.27 m	5.50 m x 3.97 m	5.50 m x 3.97 m
Pivot leg dimension	80 x 80 x 8	100 x 100 x 8	100 x 100 x 8	100 x 100 x 8	100 x 100 x 8	100 x 100 x 8	100 x 100 x 8
Riser diameter	Ø168 x 3	Ø203 x 3	Ø203 x 3	-	-	Ø203 x 3	Ø203 x 3
Control panel	EM Hybrid 4 Hybrid 7	EM Hybrid 4 Hybrid 7	EM Hybrid 4 Hybrid 7	EM	EM	Hybrid 7	Hybrid 7
Collector ring	On top 12 rings	On top 12 rings	On top 12 rings	-	-	On top 14 rings	On top 14 rings

Span Specifications

Specification	OC133	OC168	OC203
Clearance low profile	3.36 m	3.36 m	3.10 m
Clearance high profile	4.20 m	4.20 m	3.83 m
Length	36m - 60m	36m - 66m	48m - 54m
Pipe material	Steel S275	Steel S275	Steel S275
Pipe dimension	Ø133 x 3	Ø168 x 3	Ø203 x 3
Pipe length	11.8m 5.9m	11.8m 5.9m	11.8m 5.9m
Rod material	Steel S355	Steel S355	Steel S355
Rod diameter	Ø18	Ø20	Ø20
Truss angle dimension	50 x 50 x 5	50 x 50 x 5	50 x 50 x 5
Outlet spacing	2m	2m	2m
Overhang length	6m - 24m	6m - 30m	-
Electrical cable	4 x 4 mm2 + 9 x 1.5 mm2 4 x 6 mm2 + 9 x 2.5 mm2	4 x 4 mm2 + 9 x 1.5 mm2 4 x 6 mm2 + 9 x 2.5 mm2	4 x 4 mm2 + 9 x 1.5 mm2 4 x 6 mm2 + 9 x 2.5 mm2

Tower Specifications

Specification	OC133	OC168	OC203
Height low profile	4.05 m	4.05 m	4.05 m
Height high profile	4.76 m	4.76 m	4.76 m
Stabilizers	Crossed angles 70 x 70 x 7	Crossed angles 70 x 70 x 7	Crossed angles 70 x 70 x 7
Tire options	12.4 x 24, 14.9 x 24, 16.9 x 24	12.4 x 24, 14.9 x 24, 16.9 x 24	12.4 x 24, 14.9 x 24, 16.9 x 24
Span connection	U-joint + aluminum coupler	U-joint + aluminum coupler	U-joint + aluminum coupler
Motor	UMC PSG35-40	UMC PSG35-40	UMC PSG35-40
Gearboxes	UMC 740-U	UMC 740-U	UMC 740-U

Wheel Options

Specification	12.4 x 24	14.9 x 24	16.9 x 24	11.2 x 38
Width	315 mm	378 mm	429 mm	275 mm
Diameter	1160 mm	1265 mm	1335 mm	1479 mm
Loaded radius	535 mm	583 mm	613 mm	697 mm

Hose Diameter Options

Ø 133	Ø 168	Ø 203
5” 1/4	6“ 5/8	8”
145 m3/h	242 m3/h	362 m3/h
	(+67%)	(+50%)
