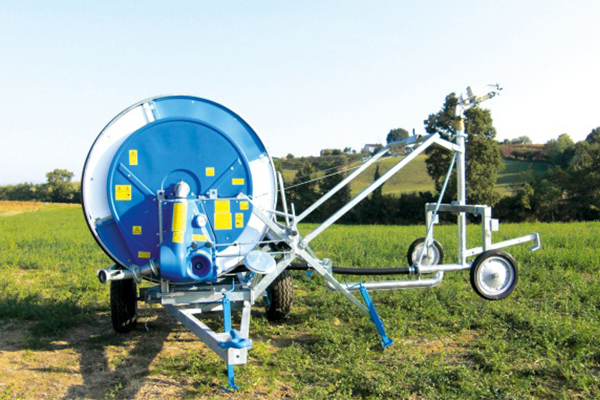

    R1/1A

    Manufacturer: Ocmis

    The best-sellers of our range.

    Robust, high-performing irrigators with low running and maintenance costs. Appreciated and used by agriculturalists the world over for their versatility and user-friendliness.

    The Turbo Speed system reduces turbine load loss and, at the same time, gives access to a range of machine speeds even with very low flows and inlet pressures. Ocmis innovation is there for all to see.

    *
    • Mechanical lifting device of trolley
    • Telescopic mechanical feet
    • 3 Speed gearbox
    • Power take off
    • Turbine flanged on the gearbox with built-in by-pass
    • Flexible connection pipe
    • Galvanized raingun trolley mounted on variable track wheels
    • Raingun
    • Set of nozzles HYDRA raingun from Ø 12 to Ø 16
    • Set of nozzles ROYAL raingun from Ø 16 to Ø 22
    • Pressure gauge (glycerine bath)
    • Winding handle
    • Speed equalizer
    • Safety guards
    • 2 wheels mod. 205/60 R15 5F
    • Hot galvanized chassis and turret
    • Reel coated by epoxy resin and painted with polyurethane paint
    • Galvanized double water inlet
    • Polyethylene hose made from unadulterated raw material



    HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
    63 250 HYDRA 14/16/18 G 63R1_1A250.pdf
    63 280 HYDRA 14/16/18 I 63R1_1A280.pdf
    63 300 HYDRA 14/16/18 J 63R1_1A300.pdf
    70 220 ROYAL 16/18/20 F 70R1_1A220.pdf
    70 270 ROYAL 16/18/20 J 70R1_1A270.pdf
    75 220 ROYAL 16/18/20 G 75R1_1A220.pdf
    75 250 ROYAL 16/18/20 I 75R1_1A250.pdf
    82 180 ROYAL 18/20/22 A 82R1_1A180.pdf
    *
    *
    *
    *
