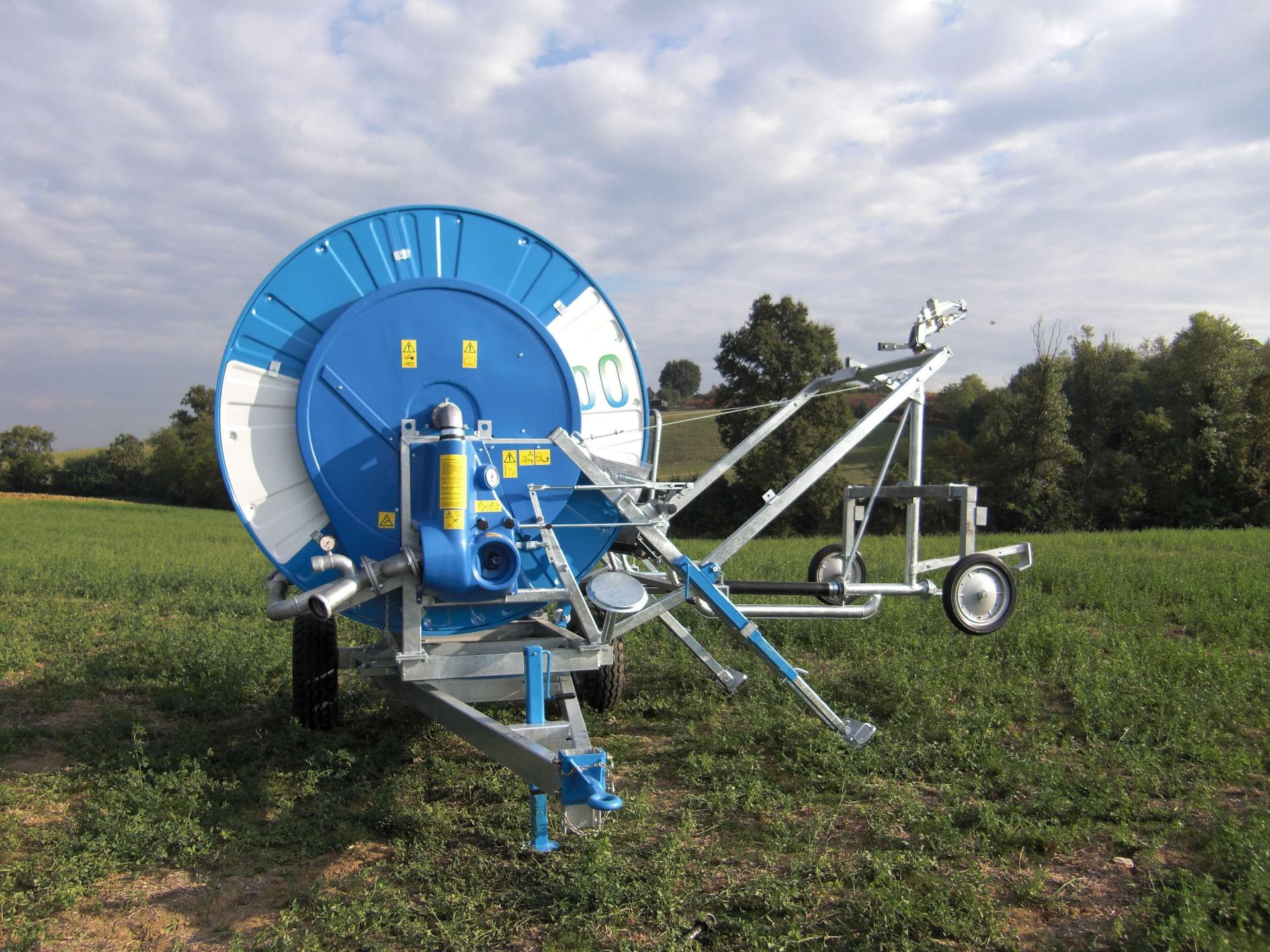

    R2A

    Manufacturer: Ocmis

    The best-sellers of our range.

    Robust, high-performing irrigators with low running and maintenance costs. Appreciated and used by agriculturalists the world over for their versatility and user-friendliness.

    The Turbo Speed system reduces turbine load loss and, at the same time, gives access to a range of machine speeds even with very low flows and inlet pressures. Ocmis innovation is there for all to see.

    *
    • Trolley lifting, hydraulic feet with hand pump
    • Telescopic mechanical feet
    • 3 Speed gearbox
    • Power take off
    • Turbine flanged on the gearbox with built-in by-pass
    • Flexible connection pipe
    • Galvanized raingun trolley mounted on variable track wheels
    • Raingun
    • Set of nozzles ROYAL raingun from Ø 16 to Ø 22
    • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
    • Pressure gauge (glycerine bath)
    • Winding handle
    • Speed equalizer
    • Safety guards
    • Wheels 10.0/80 R12 8PR 5 F
    • Hot galvanized chassis and turret
    • Reel coated by epoxy resin and painted with polyurethane paint
    • Safety guards made of steel, swaged galvanized and painted
    • Galvanized double water inlet
    • Polyethylene hose made from unadulterated raw material



    HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
    70 350 ROYAL 16/18/20 J 70R2A350.pdf
    75 300 ROYAL 16/18/20 H 75R2A300.pdf
    75 330 ROYAL 16/18/20 J 75R2A330.pdf
    82 270 ROYAL 18/20/22 G 82R2A270.pdf
    82 300 ROYAL 18/20/22 I 82R2A300.pdf
    90 220 REFLEX 24/26/28 A 90R2A220.pdf
    90 250 REFLEX 24/26/28 G 90R2A250.pdf
    100 170 REFLEX 26/28/30 D 100R2A170.pdf
    *
    *
    *
    *
