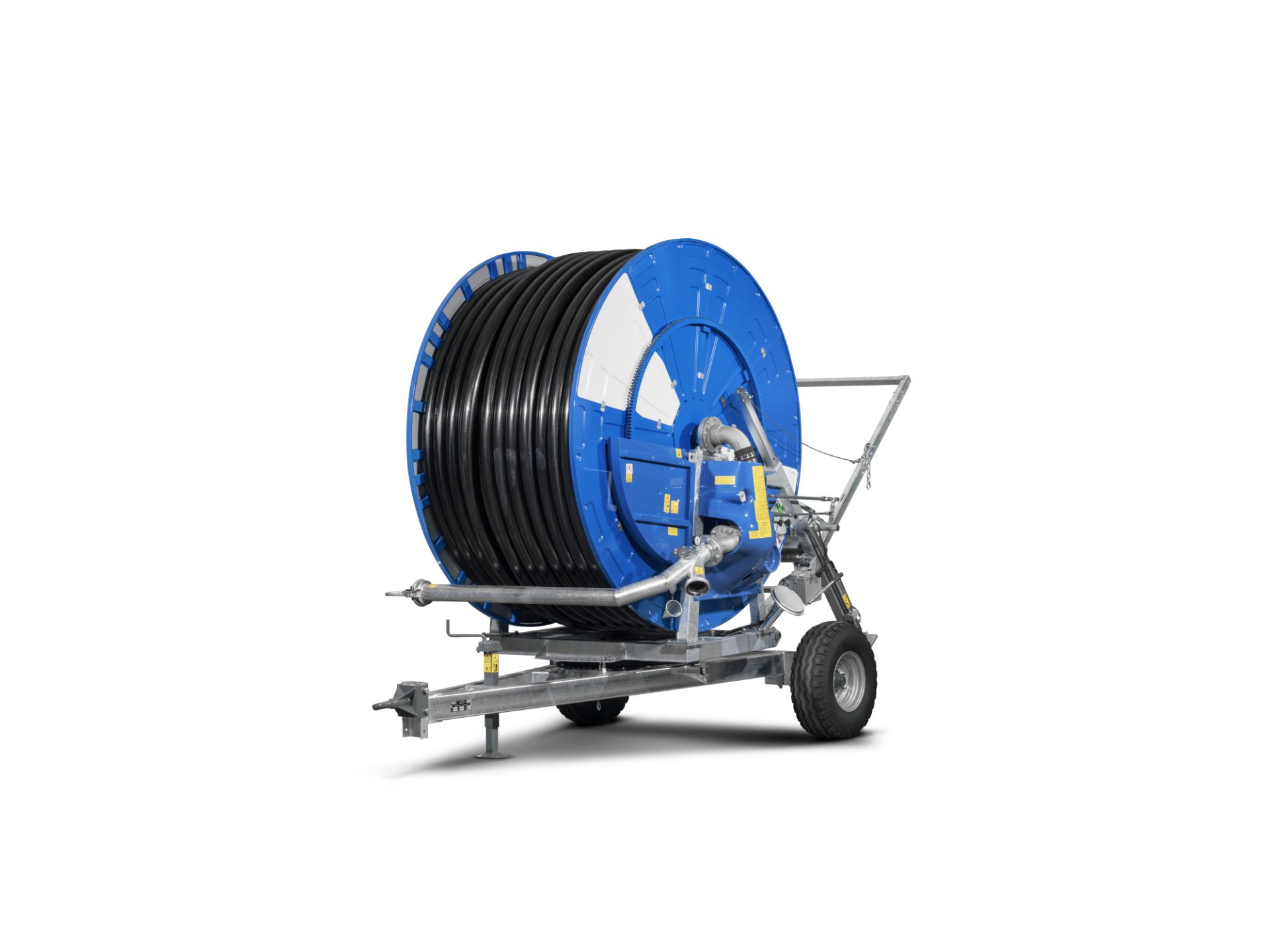

R4A

Trolley lifting, hydraulic feet with pump
Telescopic hydraulic feet
4 Speed gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Winding handle
Speed equalizer
Tachometer
Pressure gauge (glycerine bath)
Mechanical lifting of drawbar
Safety guards
Wheels 11.5/80 – 15.3 12PR 6F
Hot galvanized chassis and turret
Reel coated by epoxy resin and painted with polyurethane paint
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
Polyethylene hose made from unadulterated raw material

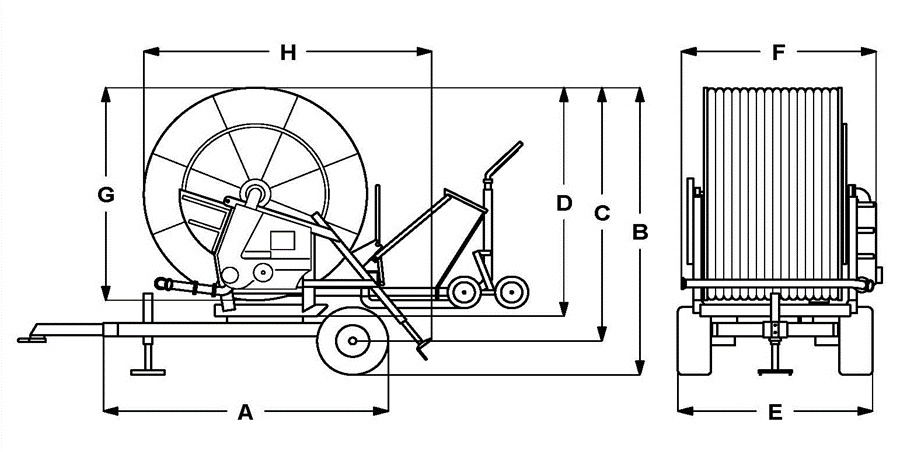

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
360	353	318	286	228	225	268	325

HOSE DIAMETER	HOSE LENGTH	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
90	500	REFLEX	24/26/28	C	90R4A500.pdf
90	570	REFLEX	24/26/28	I	90R4A570.pdf
100	400	REFLEX	24/26/28	C	100R4A400.pdf
100	450	REFLEX	26/28/30	A	100R4A450.pdf
100	500	REFLEX	26/28/30	H	100R4A500.pdf
110	300	REFLEX	28/30/32	F	110R4A300.pdf
110	330	REFLEX	28/30/32	G	110R4A330.pdf
110	350	REFLEX	26/28/30	I	110R4A350.pdf
125	250	EXPLORER	32/34/36	A	125R4A250.pdf
