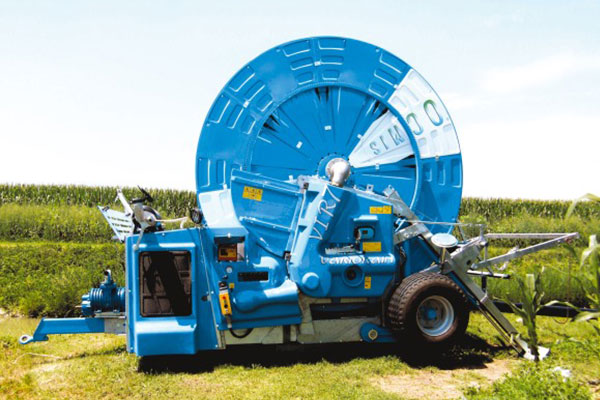

VIR7M

Hydraulic lifting device of trolley
Hydraulic rotation of turntable
Hydraulic lifting of drawbar
Telescopic hydraulic feet
4 speed VR gearbox
Power take off
Turbine flanged on the gearbox with built-in by-pass
Flexible connection pipe
Galvanized raingun trolley mounted on variable track wheels
Raingun
Set of nozzles REFLEX raingun from Ø 24 to Ø 32
Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
Pressure gauge (glycerine bath)
Winding handle
Speed equalizer
Tachometer
Hydraulic system by rapid couplings to tractor
Safety guards
2 wheels 12.5/80-15.3 14PR 6F
Safety guards made of steel, swaged galvanized and painted
Galvanized double water inlet
For hose diam. 100-110-120-125 water inlet Bauer Ø 108
For hose diam. 135-140-150 water inlet Bauer Ø 133
Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
Polyethylene hose made from unadulterated raw material

A cm.	B cm.	C cm.	D cm.	E cm.	F cm.	G cm.	H cm.
450	395	370	345	245	282	309	-

HOSE DIAMETER	HOSE LENGTH	RAINGUN	NOZZLES	END HOSE	PERFORMANCE
100	650	REFLEX	26/28/30	A	100VIR7M650.pdf
110	600	REFLEX	24/26/28	A	110VIR7M600.pdf
120	540	EXPLORER	30/32/34	A	120VIR7M540.pdf
125	450	EXPLORER	32/34/36	D	125VIR7M450.pdf
125	500	EXPLORER	32/34/36	B	125VIR7M500.pdf
135	400	EXPLORER	34/36/38	J	135VIR7M400.pdf
140	380	EXPLORER	36/38/40	J	140VIR7M380.pdf
150	300	EXPLORER	36/38/40	A	150VIR7M300.pdf
