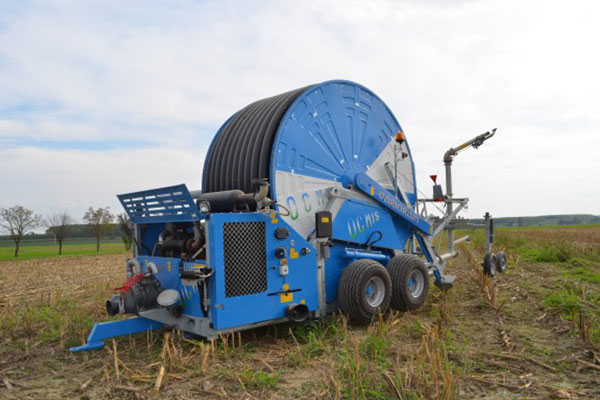

    VIR8AM

    Manufacturer: Ocmis

    The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system.

    The competitive advantages are numerous: water saving, user-friendliness and no significant pressure losses.

    The irrigating machines of the E-volution use a fully electrical hose-rewinding system.

    The technical avant-garde of the rollers, offering greater precision, lower energy consumption, lower maintenance costs, and a wide range of operating speeds.

    *
    • Hydraulic lifting device of trolley
    • Hydraulic rotation of turntable
    • Hydraulic lifting of drawbar
    • Telescopic hydraulic feet
    • 4 speed VR gearbox
    • Power take off
    • Turbine flanged on the gearbox with built-in by-pass
    • Flexible connection pipe
    • Galvanized raingun trolley mounted on variable track wheels
    • Raingun
    • Set of nozzles REFLEX raingun from Ø 24 to Ø 32
    • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40
    • Pressure gauge (glycerine bath)
    • Winding handle
    • Speed equalizer
    • Tachometer
    • Hydraulic system by rapid couplings to tractor
    • Safety guards
    • 2 wheels 400/60-15.5 16PR 6F
    • Safety guards made of steel, swaged galvanized and painted
    • Galvanized double water inlet
    • For hose diam. 100-110-120-125 water inlet Bauer Ø 108
    • For hose diam. 135-140-150 water inlet Bauer Ø 133
    • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
    • Polyethylene hose made from unadulterated raw material



    HOSE DIAMETER HOSE LENGTH RAINGUN NOZZLES END HOSE PERFORMANCE
    110 650 REFLEX 22/24/26 I 110VIR8AM650.pdf
    110 670 REFLEX 22/24/26 I 110VIR8AM670.pdf
    110 700 REFLEX 24/26/28 G 110VIR8AM700.pdf
    110 730 REFLEX 24/26/28 F 110VIR8AM730.pdf
    120 600 EXPLORER 28/30/32 H 120VIR8AM600.pdf
    120 640 EXPLORER 26/28/30 F 120VIR8AM640.pdf
    125 550 EXPLORER 32/34/36 I 125VIR8AM550.pdf
    125 620 EXPLORER 28/30/32 F 125VIR8AM620.pdf
    135 500 EXPLORER 32/34/36 D 135VIR8AM500.pdf
    140 400 EXPLORER 34/36/38 F 140VIR8AM400.pdf
    140 450 EXPLORER 34/36/38 H 140VIR8AM450.pdf
    140 470 EXPLORER 34/36/38 I 140VIR8AM470.pdf
    *
    *
    *
    *
