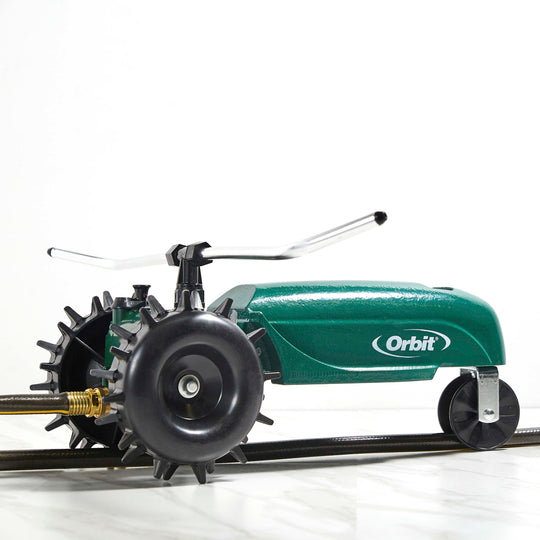

    Traveling Tractor Sprinkler

    Manufacturer: Orbit
    • SELF-PROPELLED SPRINKLER: Create a custom path for the sprinkler to follow using your 5/8-in. garden hose.
    • LARGE-AREA COVERAGE: Spray coverage up to 13,500 sq. ft. along 200 ft. of hose.
    • THREE-POSITION SPEED CONTROL: Select from high, low, or neutral (stationary) settings to control the saturation level of your lawn.
    • ADJUSTABLE COVERAGE: Simply twist each spray arm to adjust the watering diameter from 15 ft. to a maximum coverage of 55 ft.
    • AUTOMATIC SHUT OFF: Use the ramp stop at any location along the hose length to turn off the sprinkler and prevent water waste.
    • HIGH-TRACTION WHEELS: Spiked wheels keep the sprinkler moving, even on wet grass and slopes.
    • QUALITY CONSTRUCTION: Rust-proof, cast-iron body for stability and durability that lasts season after season.
    Manufacturer part number: 58322

    Description

    Let your sprinkler do the moving for you. Orbit’s Traveling Sprinkler is a self-propelled sprinkler that uses water pressure to move along a hose path that you set to create your personalized watering system (hose not included). Compatible with 5/8-in. hose, this sprinkler can traverse up to 200 ft. The body is made of cast iron, which weighs the sprinkler down and ensures it travels along the hose path without stalling. Spiked rear wheels and durable gears provide smooth, dependable travel. The rotary spray provides even coverage; simply twist each spray arm to adjust the watering diameter from a minimum of 15 ft. to a maximum coverage of 55 ft. Its three-speed settings allow for different rates of coverage; select from high, low, or neutral speed control. In high gear, the sprinkler travels approximately 37 ft. per hour and applies about ¼ in. of water. In low gear, the sprinkler travels approximately 21 ft. per hour and applies about ½ inch of water. Set it to neutral to use it as a stationary sprinkler. Use the specialty ramp to stop at any location along the hose length to turn off the sprinkler – the sprinkler stops when its shut-off plunger contacts the ramp stop.

    Technical Specifications

    Connection ¾-inch inlet standard hose faucet
    Operating Pressure 10-100 PSI
    Coverage
    500 sq. ft. on 200 feet of hose
    Material Cast Iron
    Plastic
    Adjustable Coverage 15-55 ft. diameter
    Speed Adjustment Low, High, Neutral
    Warranty 6 Years
    ⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
    *
    *
    *
    *
