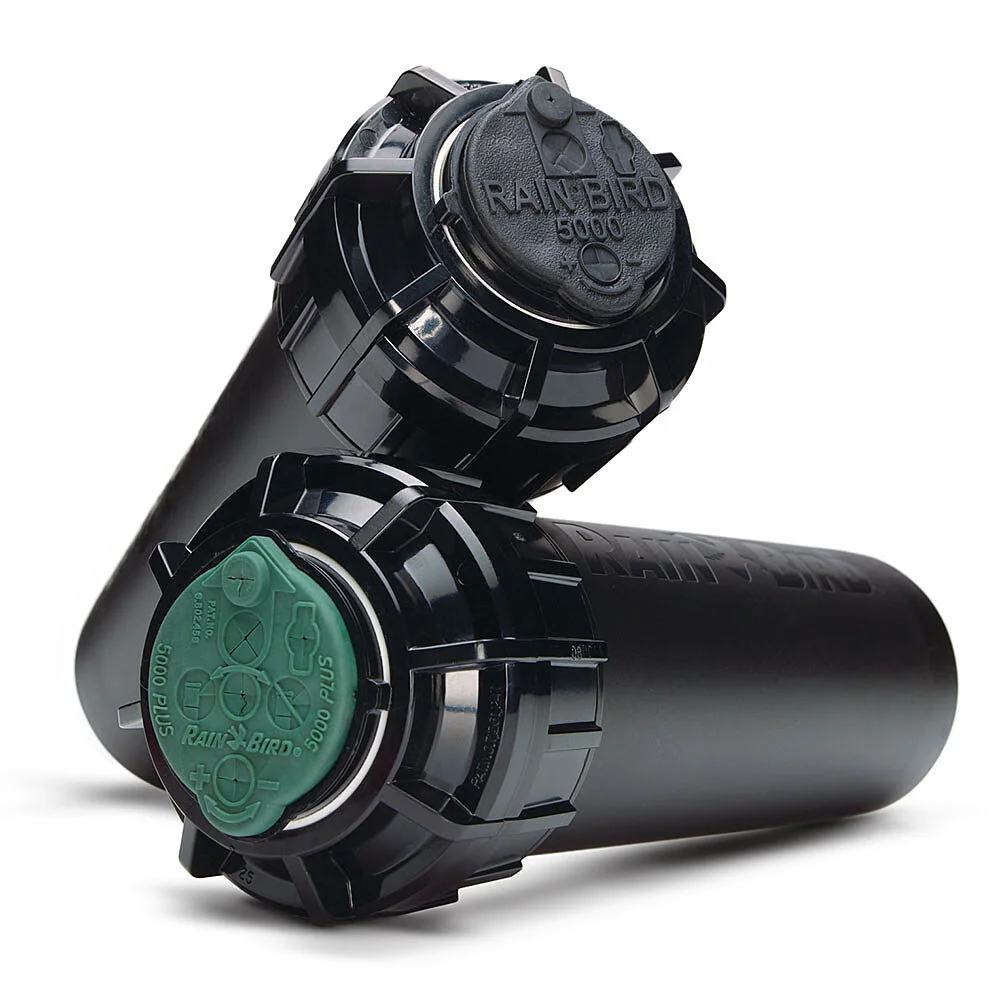

    5000 Series

    Manufacturer: Rain Bird
    Be the first to review this product

    Engineered to be the Industry’s Most Reliable and Best Performing Rotor

    Offering unmatched performance from 25' to 50', Rain Bird 5000 series rotors are ideal for residential, light commercial and commercial applications. By combining the industry’s only Triple-Blade Wiper Seal with unrivaled Rain Curtain™ nozzles, 5000 series rotors give you even coverage and enduring reliability that the best contractors demand.

    • Exclusive Triple Blade Wiper Seal
    • Industry-Leading Rain Curtain Nozzles
    • Options for Every Application
    • Backed by a 5-Year Trade Warranty
    Manufacturer part number: 5000-series
    *

    5000 Series Rotors: Wiper Seal

    5000 Series Rotors: Rain Curtain

    5000 Series Rotors: Speed of Installation

    Rain Bird 5000 PRS Series Rotors

    Rain Bird 5004 Rotors

    Rain Bird 5004 Plus Rotors

    Rain Bird 5000 SAM Rotors

    Adjusting the radius on Rain Bird 3500, 5000, 32SA, 42SA and 52SA Rotors

    Adjusting the arc on Rain Bird 3500, 5000, 32SA, 42SA and 52SA Rotors

    Features

    Oversized wiper seal prevents leaks and protects internals from debris
    Rain Curtain™ nozzles deliver even distribution over the entire radius including large wind resistant droplets and gentle close-in watering resulting in greener turf using less water
    A history of proven performance and reliability tested in millions of installations
    Self-flushing arc adjustment port that prevents buildup of debris
    5 year trade warranty

    Specs

    Precipitation rate: 0.20 to 1.50 in/hr (5 to 38 mm/h)
    Radius: 25 to 50 feet (7.6 to 15.2 m)
    Radius may be reduced up to 25% with radius reduction screw
    Pressure: 25 to 65 psi (1.7 to 4.5 bar)
    Flow Rate: 0.76 to 9.63 gpm (3.0 to 36.6 l/m; 0.17 to 2.19 m3/h)
    Reversing full- and part-circle adjustment from 40° - 360°
    Standard nozzle trajectory of 25°. Low angle nozzle trajectory of 10°. MPR nozzles varied nozzle trajectory between 12° - 25°.
    Optional Features
    Plus (+) Flow shutoff: “The Green Top.” Reduce downtime on jobs by flushing and nozzling rotors without running back and forth to the controller or valves
    PRS (R) with flow optimizer technology: The 45 psi pressure regulator lowers water bills, provides exact flow of each rotor, equalizes lateral lines, and eliminates misting and fogging
    SAM Seal-A-Matic™ check valve: holds up to 7 feet (2.1 m) of elevation change
    Stainless steel (SS) riser: helps deter vandalism on public turf areas (available on 4 and 6" models)
    Purple cover (NP) :for non-potable systems

    Dimensions

    Pop-up height: Shrub; 4" (10,2 cm); 6" (15,2 cm); 12" (30,5 cm)
    Overall body height: Shrub: 7 3/4" (19,7cm) 4": 7 3/8" (18, 5 cm); 6": 9 5/8" (24,5 cm); 12": 16 7/8" (42,9 cm)
    Exposed surface diameter: 1 5/8" (4,1 cm)

    Model Comparison

    Shrub Models:

    • 5000SPCSAM: Shrub Part Circle SAM
    • 5000+SPCSAM: Shrub Plus Part Circle SAM
    • 5000+SPCSAMNP: Shrub Plus Part Circle SAM Non Potable
    • 5000+SPCSAMR: Shrub Plus PRS Part Circle SAM
    • 5000+SPCSAMRN: Shrub Plus PRS Part Circle SAM Non Potable

    4" Part Circle (adjustable from 40° –360°):

    • 5004PC: 4" Part Circle
    • 5004PC20: 4" Part Circle w/2.0 Nozzle
    • 5004PC30: 4" Part Circle w/3.0 Nozzle
    • 5004PCSAM: 4" Part Circle SAM
    • 5004PCSAM20: 4" Part Circle SAM w/2.0 Nozzle
    • 5004PCNP: 4" Part Circle Non Potable
    • 5004+PC: 4" Plus Part Circle
    • 5004+PC20: 4" Plus Part Circle w/2.0 Nozzle
    • 5004+PC30: 4" Plus Part Circle w/3.0 Nozzle
    • 5004+PCSAM: 4" Plus Part Circle SAM
    • 5004+PCR: 4" Plus Part Circle PRS
    • 5004+PCSAMR: 4" Plus Part Circle SAM PRS
    • 5004+PCSAMR20: 4" Plus Part Circle SAM PRS w/2.0 Nozzle
    • 5004+PCSAMR30: 4" Plus Part Circle SAM PRS w/3.0 Nozzle
    • 5004+PCSAMRNP: 4" Plus Part Circle SAM PRS Non Potable
    • 5004+PCSAMRSS: 4" Plus Part Circle SAM PRS Stainless Steel
    • 5004+PCSAMRNS: 4" Plus Part Circle SAM PRS Stainless Steel Non Potable

    4" Full Circle (360 degrees only):

    • 5004FC: 4" Full Circle
    • 5004+FC: 4" Plus Full Circle
    • 5004+FCSAM: 4" Plus Full Circle SAM
    • 5004+FCSAMR: 4" Plus Full Circle SAM PRS
    • 5004+FCSAMRSS: 4" Plus Full Circle Stainless Steel SAM PRS

    6" Part Circle (adjustable from 40° –360°):

    • 5006PC: 6" Part Circle
    • 5006PC30: 6" Part Circle w/ 3.0 Nozzle
    • 5006+PC: 6" Plus Part Circle
    • 5006+PCSAM: 6" Plus Part Circle SAM
    • 5006+PCSAMNP: 6" Plus Part Circle SAM Non Potable
    • 5006+PCSAMR: 6" Plus Part Circle SAM PRS
    • 5006+PCSAMRNP: 6" Plus Part Circle SAM PRS Non Potable
    • 5006+PCSAMRSS: 6" Plus Part Circle SAM PRS Stainless Steel
    • 5006+PCSAMRNS: 6" Plus Part Circle SAM PRS Stainless Steel Non Potable

    12" Part Circle (adjustable from 40° –360°):

    • 5012+PCSAMR: 12" Plus Part Circle SAM PRS
    • 5012+PCSAMRNP: 12" Plus Part Circle SAM PRS Non Potable
