ELECTROGATOR® 3

Manufacturer: Reinke

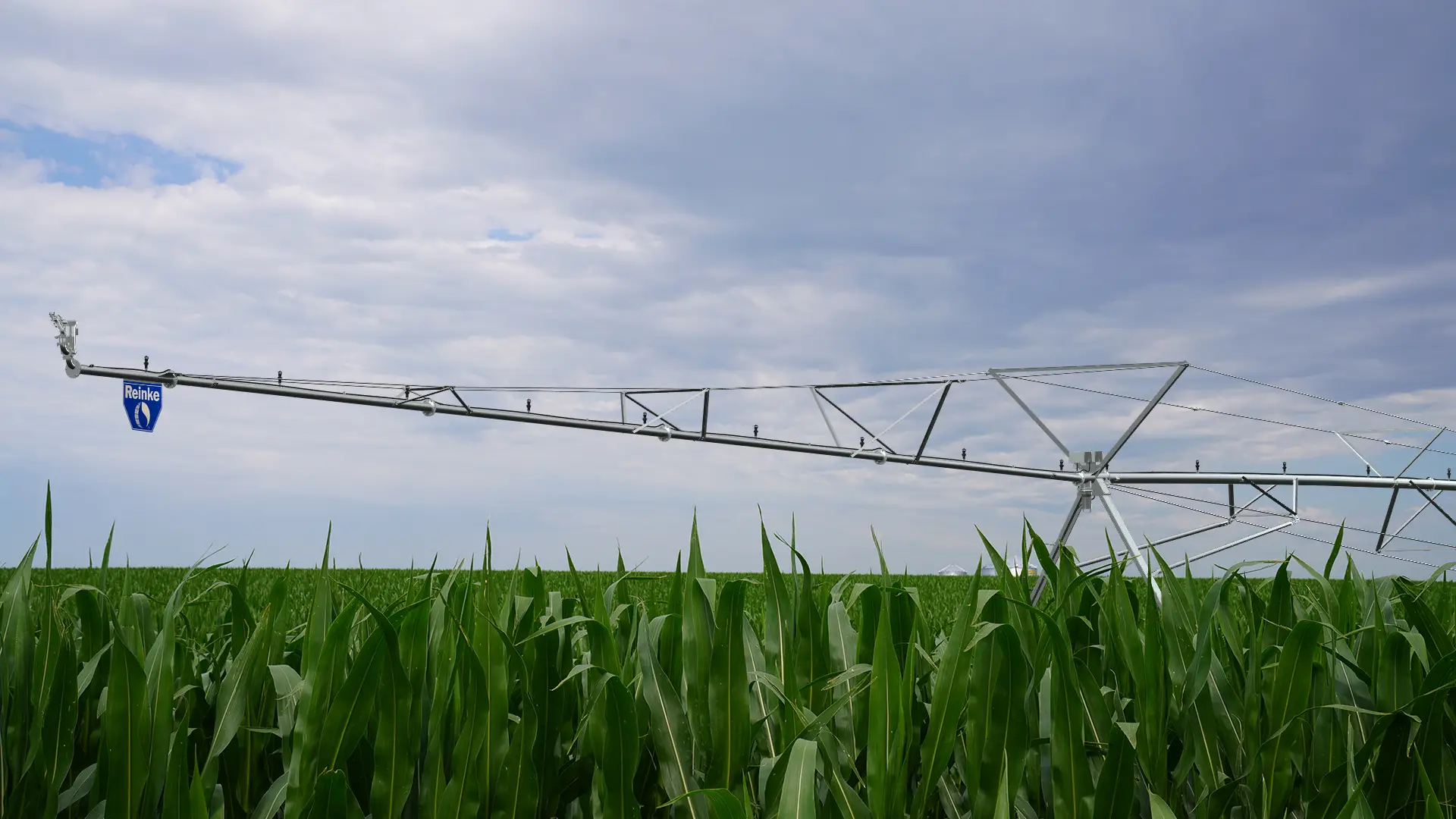

The E3™ is the ultimate game-changer for growers who demand the very best. It is the world’s first precision series of center pivot systems.

Manufacturer part number: E3

Description By Manufacturer
Reviews
Contact Manufacturer
Unit Conversions
Manufacturer Info

DISCOVER BEYOND THE POSSIBLE

Revolutionizing irrigation is what we do. The E3 is the perfect blend of precision and technology. It is the smart choice for any grower looking to maximize efficiency and yield.

0 review(s)

Write your own review Close

Product can be reviewed only after purchasing it
Only registered users can write reviews

Review title: *

Review text: *

Rating:

Bad
1 2 3 4 5
Excellent

Your name *

Your email *

Subject: *

Enquiry *

Irrigation Unit Conversions

Convert a given value and unit to different unit type. Conversions are available for flow rate, area, distance, time, volume, pressure, power, precipitation, salinity, and speed.

Click here to see unit descriptions.

Flow Rate:
		to

Area:
		to

Distance:
		to

Time:
		to

Volume:
		to

Pressure:
		to

Power:
		to

Precipitation (Water Application) Rate:
		to

Salinity:
		to

Speed:
		to

Reference: Washington State University

Product Features

Feature Title	Feature	Benefit
PIVOT CENTER - Open-Frame Design	Cross-bracing is eliminated, allowing for easy access to the main control panel.	Rugged, long-lasting foundation Easily retrofitted to all irrigation systems Uses the exclusive C-channel tower leg design
PIVOT CENTER - Maintenance-Free Bearing	A patented industry exclusive, transforming the way rotational machine movement operates.	Durable, nonmetallic material Superior holding strength and long-lasting performance Eliminates use of grease
PIVOT CENTER - Hook & Receiver Joint	If you want a predictable high-performing flex joint for any terrain, there is no comparison with Reinke’s hook and receiver.	Multi-directional pivot flex joint Provides greater freedom across 3 axis Greater precision movement is provided between spans
SPANS - Uniform Coupler Spacing	Precise coupler spacing – regardless of span lengths or combinations.	Enables a uniform sprinkler design across the entire length of system Application rate is consistent from the first coupler to the last Improves tracking performance Coupler spacing is offered in 30” and 60” intervals
SPANS - V-Ring Seal	The Reinke V-ring seal is a patented and time-honored industry exclusive.	Industry-leading warranty Eliminates seal failures due to UV exposure Strengthens connection with flange-to-flange connection Water flow reduction is eliminated
SPANS - ReinLock™ Trussing System	This system offers a new and improved way of spanning the field.	Provides tighter tolerance and maintains consistent span crown Patented, anti-racking 5-point hub with single bolt Optimal retention and stress transfer Precision-built hot forged truss rods Increases strength and rigidity
Tower Stiffeners	It is designed to work seamlessly with the ReinLock trussing system.	Exclusive feature made from a 3” hot-dipped galvanized steel tube Provides a universal, end-to-end compatible installation to suit all span lengths Stress and strain is optimized across the entire system, not just at the pipe Strong connection between the trussing system and tower legs
Tower Legs	Reinke stands apart with its exclusive and unique single-leg tower design. The sleek and unobtrusive design reduces crop loss as it moves through the field.	Made of high-strength low alloy material Robust design provides enormous strength Accommodating to a variety of accessories, including a step foot platform
Tower Tops	Experience the power of innovation with the improved tower tops.	Hook and Receiver
Tower Heights	Available in varying heights to accommodate any crop.*	Supergator®: 20 ft (6.1m)
Blue Reinke 10/16 Wheel Gearbox	10/16 Wheel Gearbox	Industry’s only warranty for wheel gears of 10-years or 16,000-hours Designed to support longer run hours, larger spans and wheels for increased dependable service High-torque gears enable greater load capacity 13-bolt mounting pattern makes it compatible with most center-pivot brands Reduces running temperatures, extending the life of the gear
Center Drive	Center Drive	The gear motor is designed and specifically built for demands of center pivot irrigation High-strength steel shafting will provide long life All electrical connects are enclosed to resist moisture penetration Helical gear design with 95% efficiency Moves the irrigation system over the roughest terrain and soil conditions
END OF SYSTEM - End Booms	Providing growers with the best irrigation system extends right to the end booms.	Industry exclusive, inverted truss design More flexibility in coverage lengths Bolted rod ends allow for customizable clearance
END OF SYSTEM - Swing Arm Corners	The patented Electronic Swing Arm Corner (ESAC™) is designed to irrigate field corners with unparalleled accuracy and results.	Completely updated, with lengths of 290’ and 330’ Best option for efficient water application The path is optimized to ensure proper water application Significantly reduces the occurrence of under and over watering, including the corners
