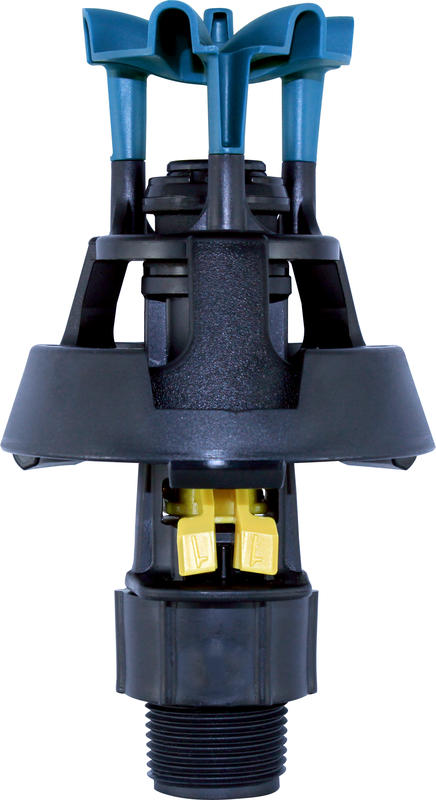

Xcel-Wobbler™ UP3®TOP

With the release of the Xcel-Wobbler™ UP3® TOP featuring the convenient UP3 nozzle, Senninger® is expanding its patented Wobbler® technology for center pivot irrigation. This innovative top-of-pipe product is designed specifically for low pressure to promote energy savings and produce a wind-resistant large droplet.

Features

Senninger Wobbler technology provides outstanding uniformity over a large wetted area
More economical than other sprinkler packages
Low pressure operation saves energy and provides larger droplet size
Two-year warranty on materials, workmanship and performance
Easy-change UP3 nozzle - simply pinch and pull to remove and place and click to reinstall, are easily identified with color-coding, and are warranted to maintain their correct orifice size for five years

Advanced Features

Senninger® Wobbler® Technology

Senninger Wobbler technology ―rotation of grooved deflector coupled with wobbling action― provides the most uniform water application in center pivot irrigation systems. Senninger Wobbler sprinklers distribute droplets with lower application intensity over a large area of coverage at low pressures.

UP3® Nozzle

UP3 snap-in nozzles are easy to remove for cleaning or changing. To remove the nozzle simply pinch and pull, then place and click to re-install. There is no need to disassemble or remove the sprinkler.

The color-coded nozzles are highly visible and easy to identify. The nozzle numbers (corresponding to orifice sizes in 64ths of an inch) are visible on the ears, with half sizes denoted beneath the second digit and the notches on the lower edge of the nozzle.

Xcel-Wobbler™ UP3® TOP

XCEL-WOBBLER UP3 TOP DESIGN CRITERIA	(Blue) 6-Groove 5-Degrees Large Droplets
Nozzle Sizes
Minimum	#6 3/32"
Maximum*	#26 13/32"
Flows
Minimum	0.80 gpm
Maximum	14.98 gpm
Diameters
Minimum at 12 ft	44 ft
Maximum at 12 ft	51 ft
Maximum Spacing (up to #16.5 nozzle)
at 12 ft ground clearance	20 ft
Maximum Spacing (nozzles #17 - 26)
at 12 ft ground clearance	10 ft
Pressure at the Nozzle
	10 psi

*It is recommended that larger nozzle sizes be used only on soils that can handle higher application rates.

Xcel-Wobbler™ UP3® TOP (Metric)

XCEL-WOBBLER UP3 TOP DESIGN CRITERIA	(Blue) 6-Groove 5-Degrees Large Droplets
Nozzle Sizes
Minimum	#6 2.38 mm
Maximum*	#26 10.32 mm
Flows
Minimum	182 L/hr
Maximum	3402 L/hr
Diameters
Minimum at 3.66 m	13.4 m
Maximum at 3.66 m	15.5 m
Maximum Spacing (up to #16.5 nozzle)
at 3.66 m ground clearance	6.1 m
Maximum Spacing (nozzles #17 - 26)
at 3.66 m ground clearance	3.0 m
Pressure at the Nozzle
	0.69 bar

*It is recommended that larger nozzle sizes be used only on soils that can handle higher application rates.

Pivot Wobbler® Comparison

Low Pressure - High Performance Sprinklers
Wobbler technology™ was introduced by Senninger® Irrigation in 1978 and became an industry standard. Over the years, Senninger has developed several Wobblers designed to improve irrigation efficiency. These sprinklers are well-known for their ability to spread water in an instantaneous, uniform pattern using very low operating pressures.


	i-Wob2	Xi-Wob	Xcel-Wobbler UP3
Nozzles
	#6 - #26	#7 - #24	#6 - #26
	3/32" - 11/32"	7/64" - 3/8"	3/32" - 11/32"
Flows
	0.80 - 18.35 gpm	1.09- 15.78 gpm	0.8 - 14.98 gpm
Diameters
	26 - 59 ft	30 - 55 ft	43 - 51 ft
Maximum Spacing
	20 ft	20 ft	20 ft
Pressure at the Nozzle
	6 - 15 psi	10 - 15 psi	10 psi

Pivot Wobbler® Comparison (Metric)


	i-Wob2	Xi-Wob	Xcel-Wobbler UP3
Nozzles
	#6 - #26	#7 - #24	#6 - #26
	2.38-10.32 mm	2.78-9.53 mm	2.38-10.32 mm
Flows
	182 - 4168 L/hr	248 - 3584 L/hr	182 - 3402 L/hr
Diameters
	8.0 - 18.0 m	9.1 - 16.8 m	13.1 - 15.5 m
Maximum Spacing
	6.1 m	6.1 m	6.1 m
Pressure at the Nozzle
	0.41 - 1.03 bar	0.69 - 1.03 bar	0.69 bar
