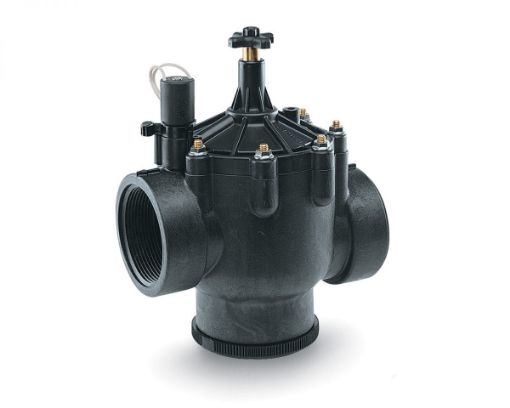

Century Plus Scrubber Valves

Features

Continuous Scrubbing Feature

Actively cleans the metering device for consistent valve operation

Tough, Glass reinforced Nylon, Stainless Steel and Brass Construction

Withstands high temperatures and system surges under pressure for long-term reliability

Fabric-reinforced EPDM Diaphragm And EPDM Seat

Designed to operate in virtually all water applications

Rugged Internal Plastic and Stainless Steel Parts

Scrubber fan, nut and metering system chlorine and chemical resistant

Completely Serviceable and Retrofittable

Diaphragm assembly may be replaced or retrofitted to previous models

1379 kPa Pressure Rating

Prevents water hammer and system damage in high-pressure installations

Internal And External Bleed (Flush Mode)

Manual operation

Externally Removable Self-cleaning Metering System

Provides consistent performance in recycled water applicaations

Accepts Omnireg® Modular Pressure Regulator

Ensures consistent performance

Specifications

Operating Specifications:

Flow range: 20 – 1100 Lpm
Pressure range: 70 – 1379 kPa

Electrical Specifications:

Solenoid: 24 VAC
Inrush volt-amp: 24 VAC, 9.6 VA
Inrush current: 0.4 amp
Holding volt-amp: 24 VAC, 4.8 VA
Holding current: 0.2 amp
Dimensions:
- 25 mm: 121 x 93 x 172 mm
- 40 mm: 121 x 93 x 185 mm
- 50 mm: 197 x 156 x 242 mm
- 80 mm: 210 x 156 x 274 mm
