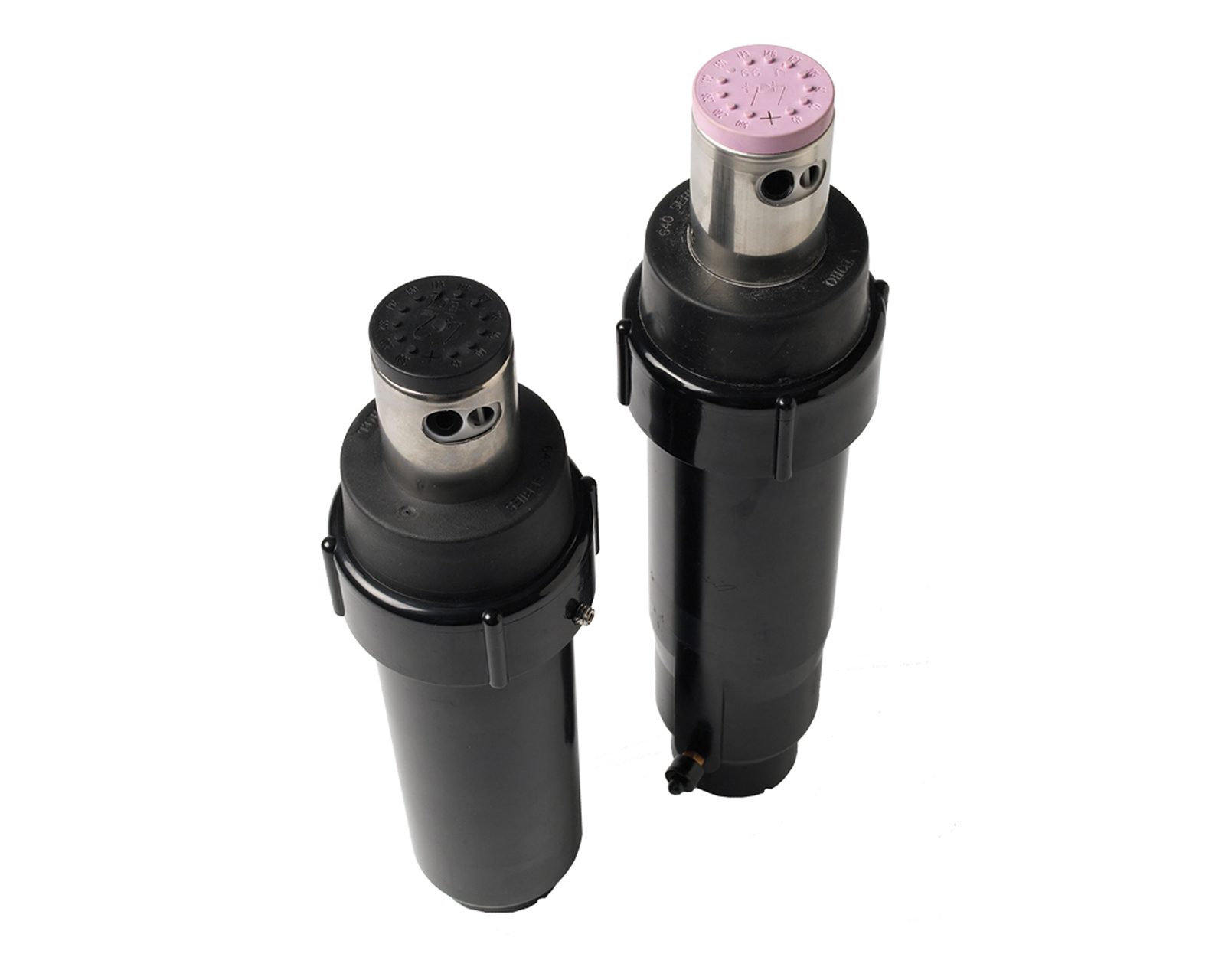

640 Series

Highlights

Available with wide range of nozzles and arcs
Available with valve-in-head
Adjustment screw allows up to 25% radius reduction
Up to 13mm below-grade installation
Stainless-steel retraction spring
Gear-drive design for longer life
5 Year warranty

Specifications

Radius: 14.6 – 20.2 Lpm
Flow rate: 23.6 – 92.8 Lpm
Recommended operating pressure: 700 kPa
Maximum operating pressure: 700 kPa
Pop-up to nozzle: 60 mm
25 mm FBSP Inlet
Trajectory: 27°
Dimensions:
- Exposed surface diameter when buried 12 mm below grade: 45 mm
- Body diameter: 65 mm
- Cap diameter: 83 mm
- Body height:
  - Check O-Matic: 23 mm
  - Valve-in-head: 267 mm
