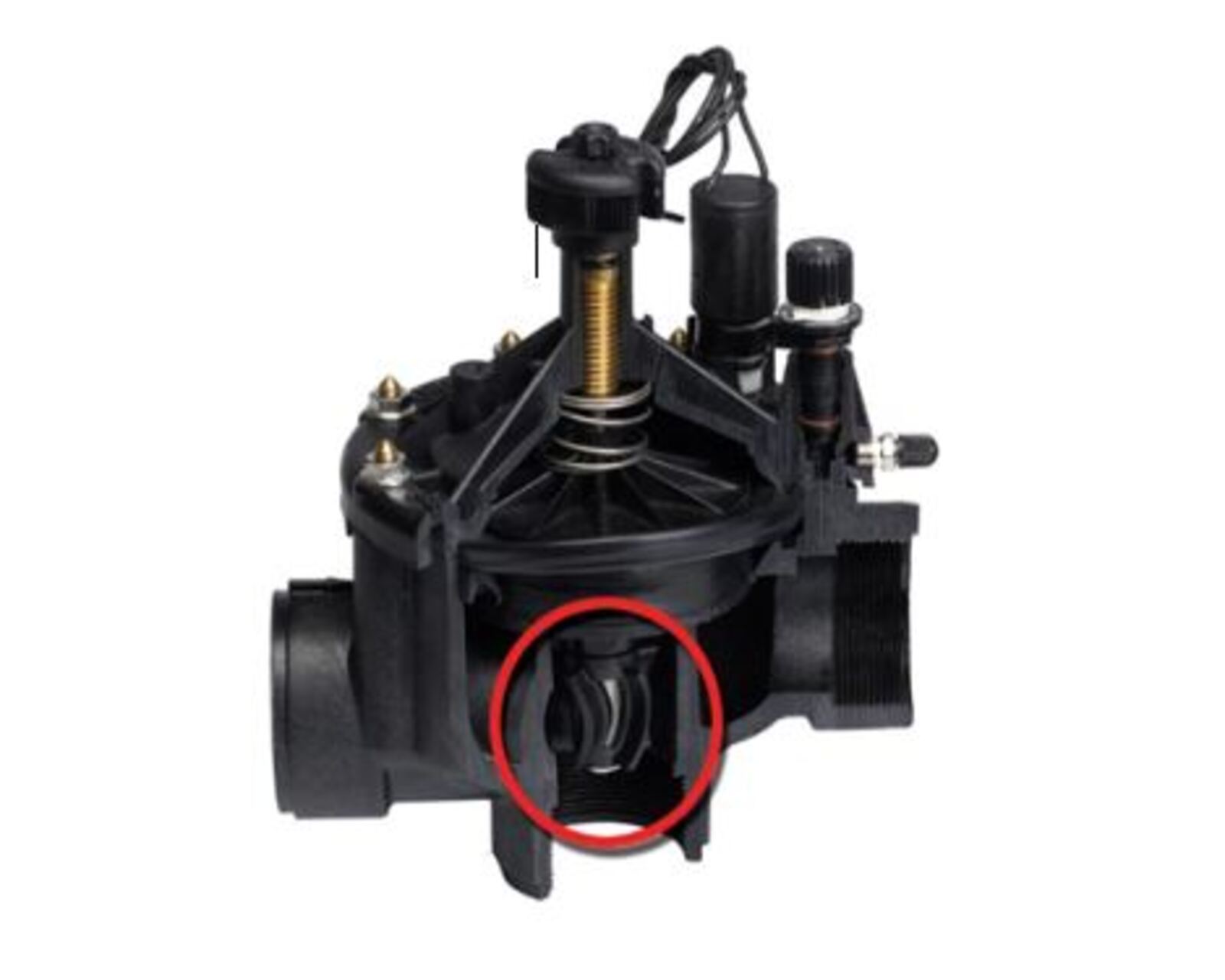

P220S Scrubber Series

Features

Durable Glass-Filled Nylon

Ensures the P-220 can operate at pressures up to 1515 kPa

Active Cleansing Technology (ACT™)

Industry’s first active scrubber valve cleans continuously whereas competitive valves only clean on opening and closing.™

Fabric-reinforced EPDM Diaphragm and EPDM Seat

Designed to work in virtually all water applications

Rugged Internal Plastic and Stainless Steel Parts

Scrubber fan, nut and metering system are designed with marine and aerospace plastics and metals which make them resistant to water treated with chlorines and ozones.

Precise Pressure Regulation Option

Compact EZReg^® dial-design technology ensures precise downstream pressure for optimising sprinkler head performance.

Completely Serviceable and Retrofitable

Diaphragm assembly may be replaced or retrofitted to previous models

Specifications

Operating Specifications:

Flow Range:
- 25 mm: 19 – 151 Lpm
- 40 mm: 114 – 416 Lpm
- 50 mm: 302.8 – 681.3 Lpm
- 80 mm: 567.8 – 1135.6 Lpm
Operating Pressure:
- 25 mm & 40 mm models: 70 – 1515 kPa
- 50 mm & 80 mm models: 140 – 1515 kPa
Pressure Regulating:
Outlet (EZR-30): 30 – 210 kPa +/- 20 kPa
Outlet (EZR-100): 30 – 700 kPa +/- 20 kPa
Inlet: 70 – 151 kPa

Minimum pressure differential for pressure regulation: 70 kPa
Body Styles:
- Globe/Angle: 25 mm, 50 mm, 75 mm, 80 mm female threads
Dimensions:
- 25 mm: 171 x 92 mm
- 40 mm: 184 x 92 mm
- 50 mm: 241 x 156 mm
- 80 mm: 273 x 156 mm
